TRV "Series AZ" angle pattern valve
with high Kv value, M 30 x 1.5, 1¼", NPT


AZ valves are designed for hot water heating systems. The EPDM valve disk allows for a wide range of conditions during operation. All Oventrop radiator valves are designed with field replaceable inserts. The entire working portion of the valve can be replaced without decommissioning the system by using the Demo-Bloc tool.

Oventrop AZ thermostatic radiator valves:
Max. working temperature: 248°F (for short periods up to 266°F)
Max. working pressure: 145 psi
Max. differential pressure: 14.5 psi
Body: nickel plated, stem made of stainless steel with double O-ring seal.
Thermostat connection thread: M 30 x 1.5


Art.No.: 1889010
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
114 mm 87 mm 68 mm 0,93 kg

Packing units

Type Qty. Length Width Height Weight
Carton 10 325 mm 240 mm 175 mm 10,06 kg

Images

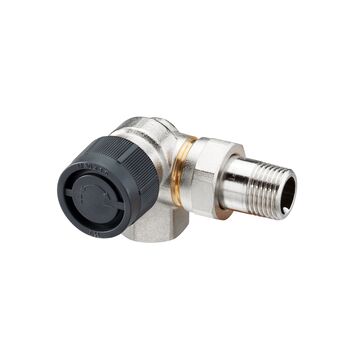

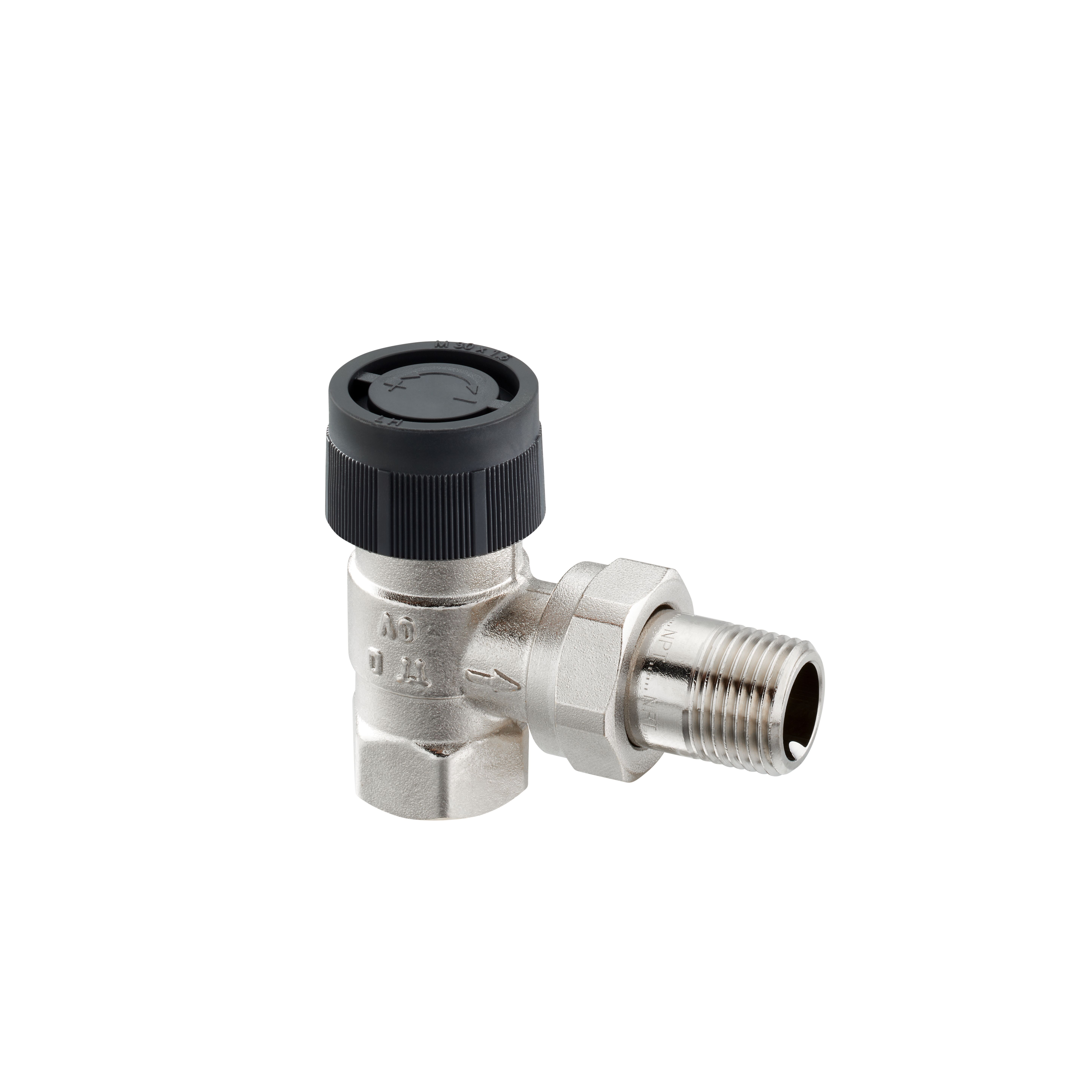

Product images

  File size
822,76 KB
  Size
5792 px x 5792 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
632,45 KB
  Size
4607 px x 4607 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Technical data

  Name Size

955,08 KB

Brochure

  Name Size

5,92 MB
