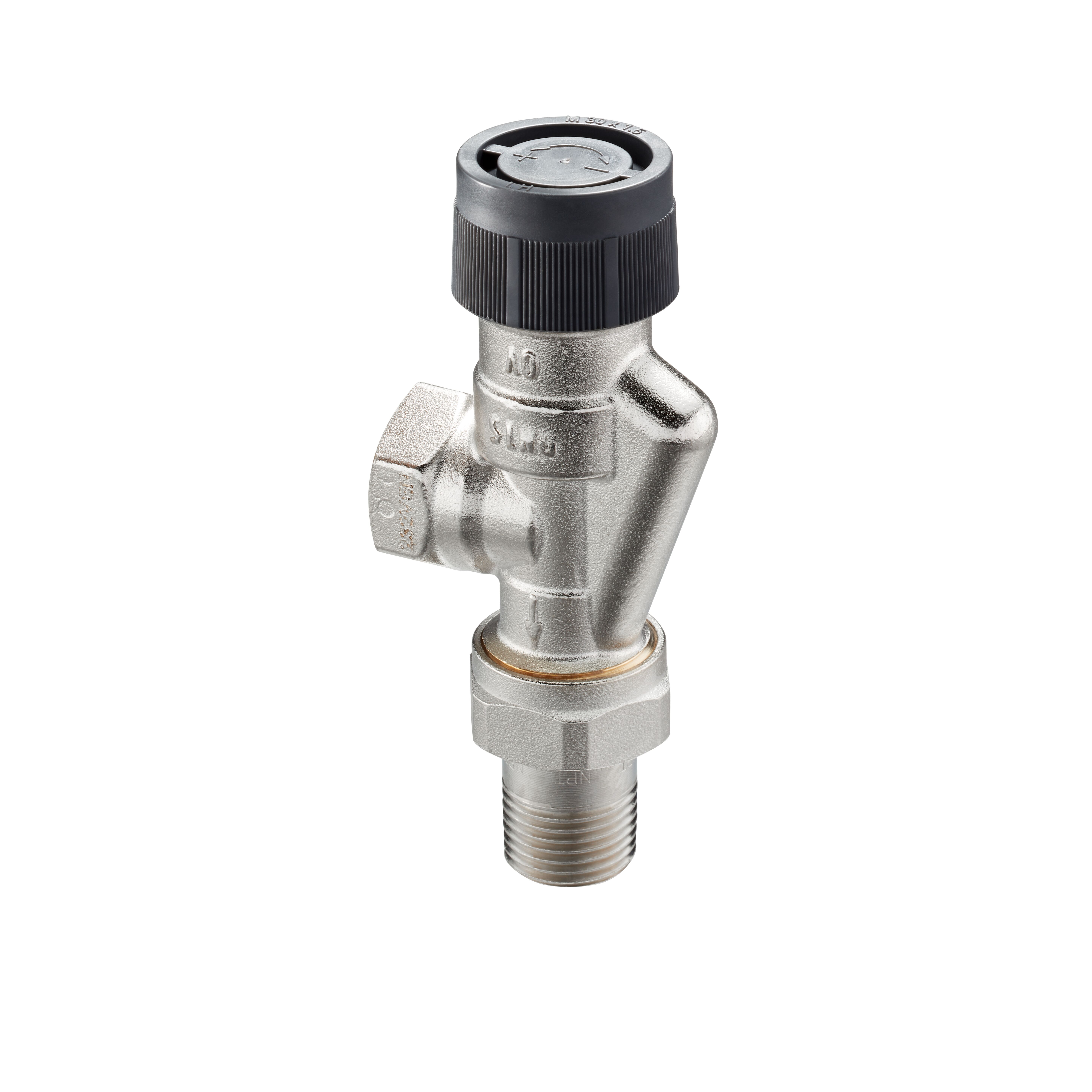

TRV "Series AZ" reversed angle pattern valve
with high Kv value, M 30 x 1.5, 1/2", NPT


AZ valves are designed for hot water heating systems. The EPDM valve disk allows for a wide range of conditions during operation. All Oventrop radiator valves are designed with field replaceable inserts. The entire working portion of the valve can be replaced without decommissioning the system by using the Demo-Bloc tool.

Oventrop AZ thermostatic radiator valves:
Max. working temperature: 248°F (for short periods up to 266°F)
Max. working pressure: 145 psi
Max. differential pressure: 14.5 psi
Body: nickel plated, stem made of stainless steel with double O-ring seal.
Thermostat connection thread: M 30 x 1.5


Art.No.: 1889204
EAN: 4026755256352
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
116 mm 50,5 mm 33,4 mm 0,33 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 116 mm 50,5 mm 33,4 mm 0,33 kg
Carton 25 295 mm 285 mm 115 mm 8,59 kg
Europallet 80 1200 mm 800 mm 1058 mm 687 kg
