AZ Pressure-balanced thermostatic valves for high flow rate

AZ valves are designed for hot water heating systems. The EPDM valve disk allows for a wide range of conditions during operation. All Oventrop radiator valves are designed with field replaceable inserts. The entire working portion of the valve can be replaced without decommissioning the system by using the Demo-Bloc tool.

Oventrop AZ thermostatic radiator valves:
Max. working temperature: 248°F (for short periods up to 266°F)
Max. working pressure: 145 psi
Max. differential pressure: 14.5 psi
Body: nickel plated, stem made of stainless steel with double O-ring seal.
Thermostat connection thread: M 30 x 1.5

AZ Pressure-balanced thermostatic valves for high flow rate

Thermostatic valve DN 15, Angle Art. No. 1889004

TRV "Series AZ" angle pattern valve with high Kv value, M 30 x 1.5, 3/4", NPT Art. No. 1889006

TRV "Series AZ" angle pattern valve with high Kv value, M 30 x 1.5, 1", NPT Art. No. 1889008

TRV "Series AZ" angle pattern valve with high Kv value, M 30 x 1.5, 1¼", NPT Art. No. 1889010

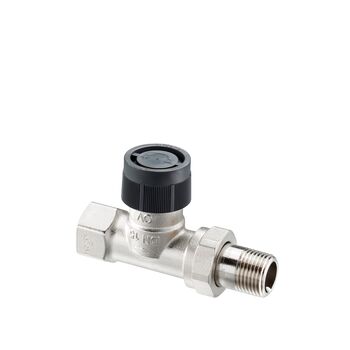

TRV "Series AZ" straight pattern valve with high Kv value, M 30 x 1.5, 1/2", NPT Art. No. 1889104

TRV "Series AZ" straight pattern valve with high Kv value, M 30 x 1.5, 3/4", NPT Art. No. 1889106

TRV "Series AZ" straight pattern valve with high Kv value, M 30 x 1.5, 1", NPT Art. No. 1889108

TRV "Series AZ" straight pattern valve with high Kv value, M 30 x 1.5, 1¼", NPT Art. No. 1889110

TRV "Series AZ" reversed angle pattern valve with high Kv value, M 30 x 1.5, 1/2", NPT Art. No. 1889204

TRV "Series AZ" reversed angle pattern valve with high Kv value, M 30 x 1.5, 3/4", NPT Art. No. 1889206
