Pressure test plug with deaeration
for composition pipe "Copipe" 16 x 2.0 mm, set = 10 pces.


No longer produced
Art.No.: 1506085
EAN: 4026755276015
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
115 mm 65 mm 55 mm 0,76 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 115 mm 65 mm 55 mm 0,76 kg
Carton 10 175 mm 170 mm 140 mm 7,7 kg
Europallet 1200 1200 mm 800 mm 1048 mm 947 kg

Images

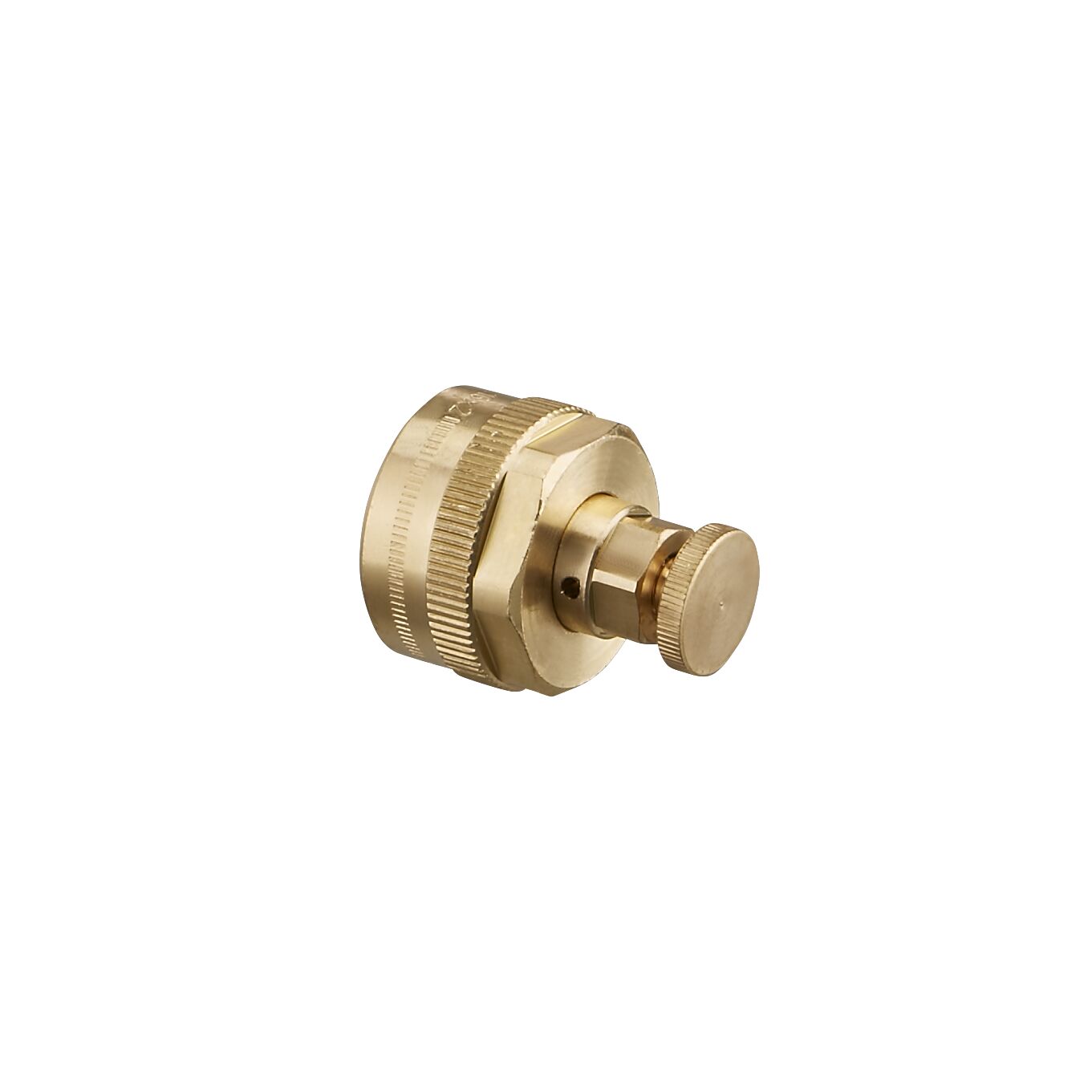

Product images

  File size
40,38 KB
  Size
1361 px x 1361 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
17,53 KB
  Size
595 px x 492 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Surface protection Untreated
Connection 1 Other
Operation Hand wheel
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
With gaskets
Gastec QA
KIWA certified
With de-aerator
Outer pipe diameter connection 1 16 mm
With operating key
Wall thickness, connection 1 2 mm
Rotating outlet
FM quality mark
VdS quality mark
UL quality mark
ULC quality mark
LPCB quality mark
Housing material Brass
Seal material Ethylene-propylene diene monomer rubber (EPDM)
Max. operating pressure at 20 °C 20 bar
System-specific
Material connection 1 Brass
Material quality connection 1 CuZn39Pb3 (CW614N)
