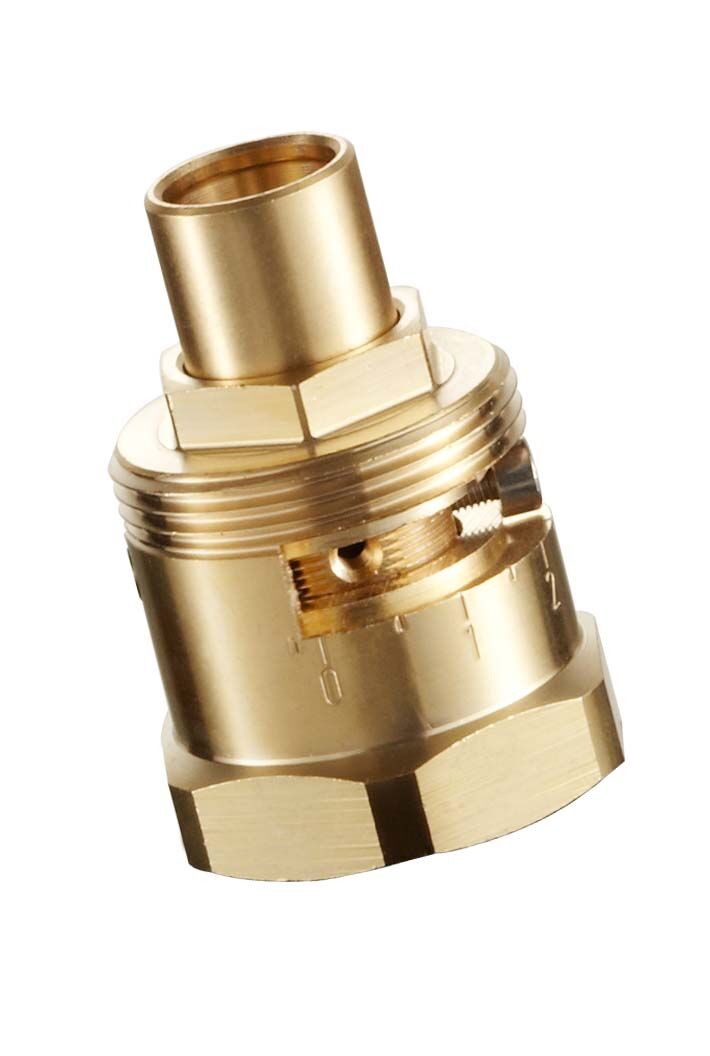

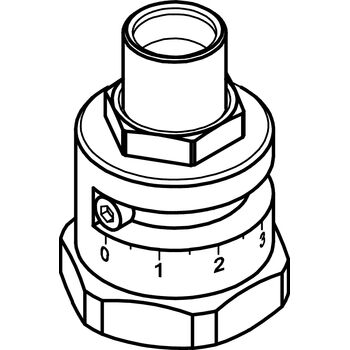

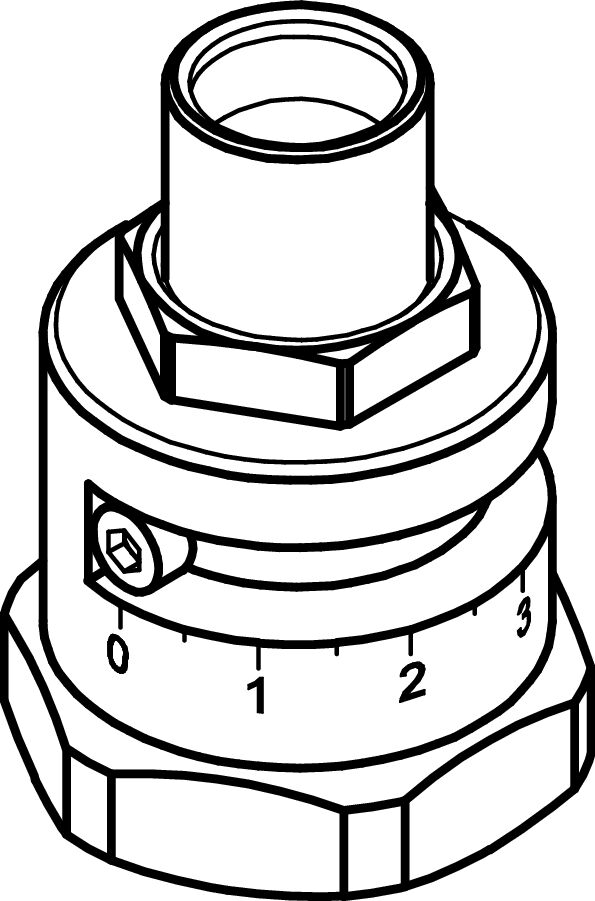

for Cocon QTZ pressure independent control valves PN 16, with adjustable minimum stroke, for one pipe heating systems

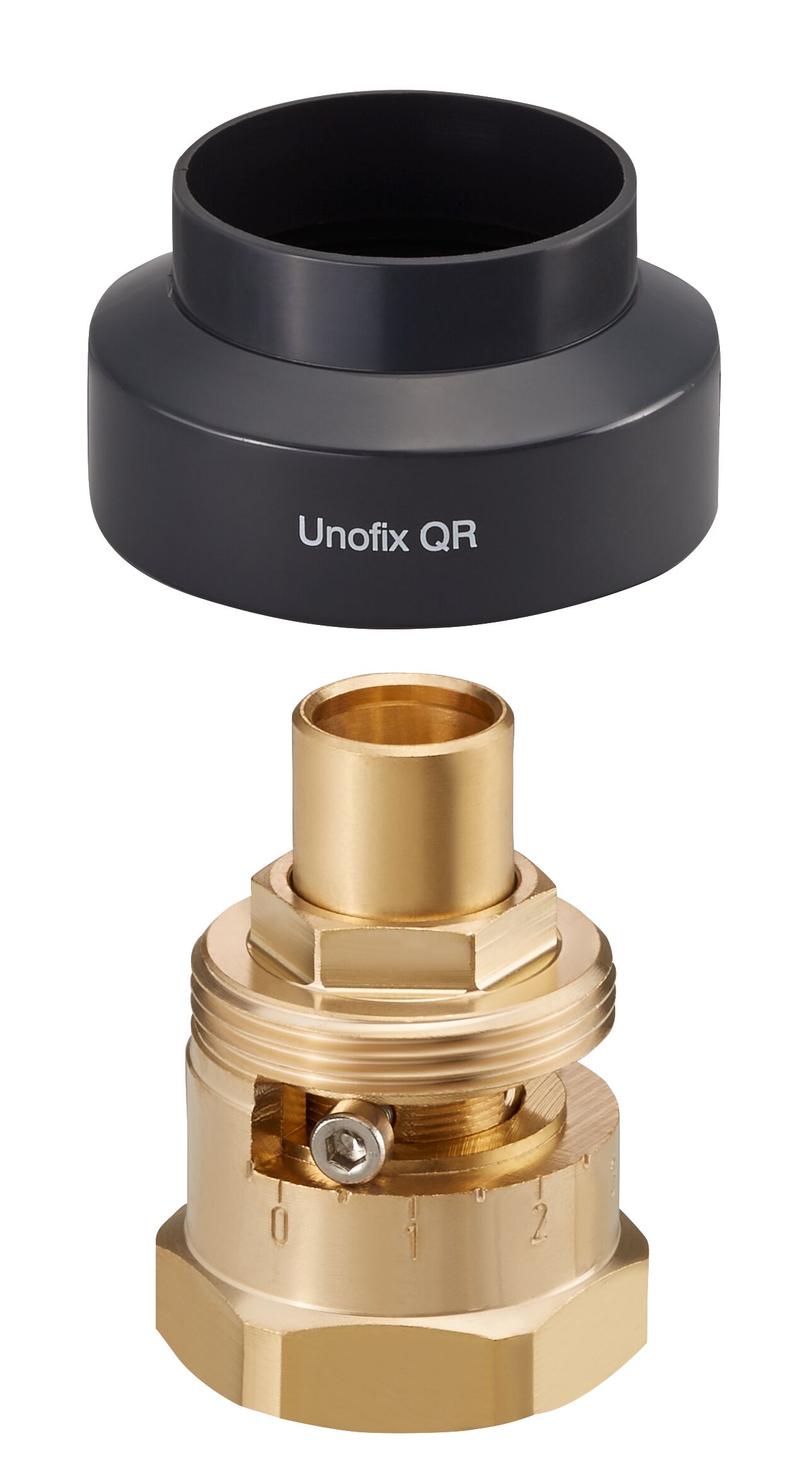

The Unofix system for the refurbishment of one pipe heating systems is based on the differential pressure independent control valve Cocon QTZ. It is available in different variants: As basic variant Unofix QB with pure volume flow limitation or as Unofix QT with additional actuator and room thermostat with time interval for e.g. night setback. The third variant Unofix QR has a return temperature limitation to maintain the temperature spread in partial load operation of the one pipe heating circuit. Two different spacers with fixed or adjustable minimum stroke are available for Unofix QR to ensure the residual volume flow.
Art.No.: 1149091
EAN: 4026755394146
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
49 mm 45 mm 45 mm 0,13 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 49 mm 45 mm 45 mm 0,13 kg
Carton 10 180 mm 175 mm 150 mm 1,43 kg
