Actuator "Lineg"
for three- and four-way mixing valves, 230 V (three point)


Art.No.: 1350953
EAN: 4026755336320
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Is spare part of

Dimensions

Dimensions of article

Length Width Height Weight
190 mm 110 mm 95 mm 0,47 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 200 mm 120 mm 105 mm 0,57 kg

Images

Product images

  File size
55,61 KB
  Size
1417 px x 1063 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
960,65 KB
  Size
2872 px x 2872 px
  Properties
  •  Clear product picture
  •  Cutout
Download

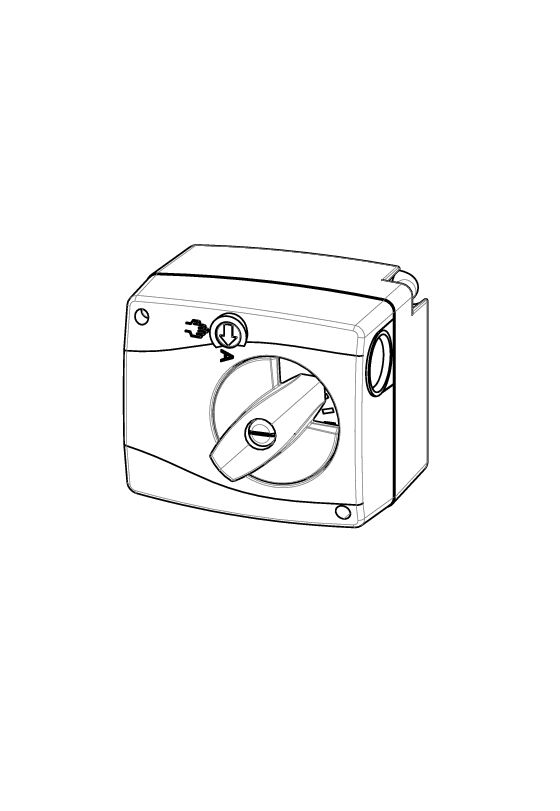

Drawings

  File size
33,29 KB
  Size
595 px x 386 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
35,94 KB
  Size
560 px x 811 px
  Properties
  •  Clear product picture
  •  Cutout
Download

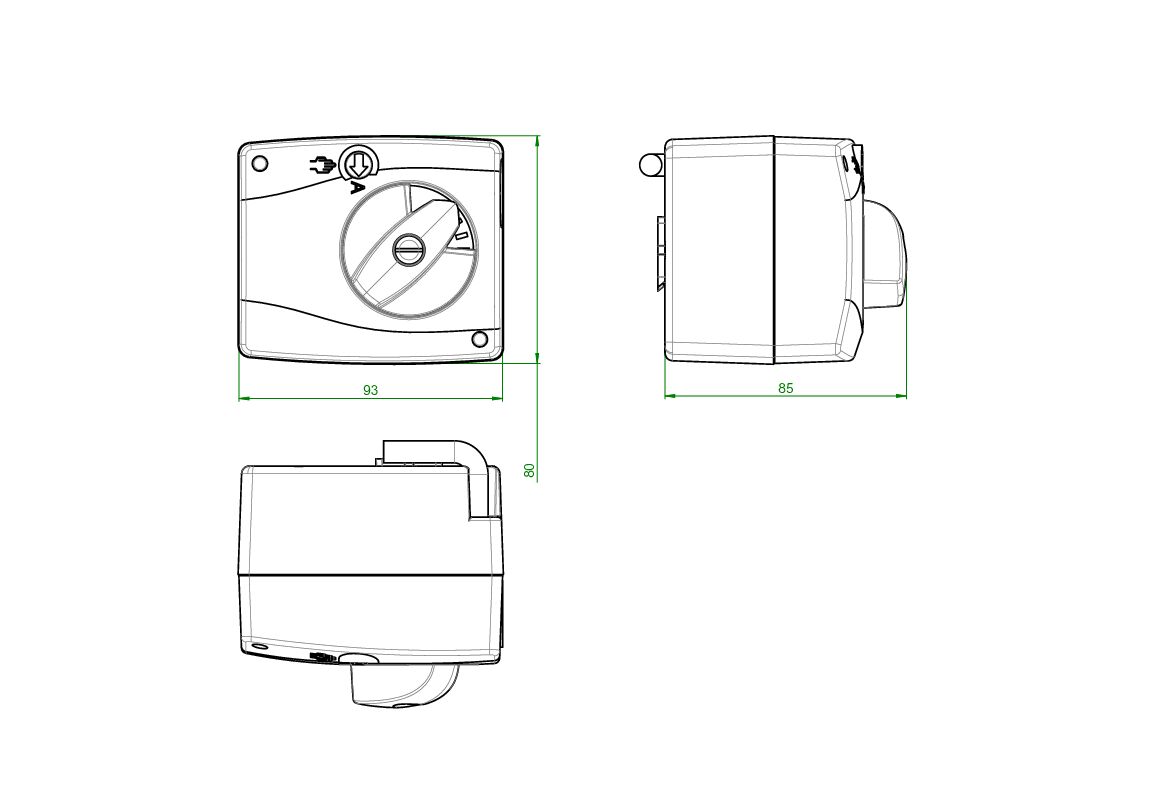

Dimensional drawings

  File size
64,59 KB
  Size
1155 px x 809 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Manual

  Name Size
L_135709380.pdf 550,21 KB

ETIM

Klassifizierung
ETIM 7.0 EC011290
Electric servomotor
Property Value
Width 80 mm
Model Rotating
Height 70 mm
Depth 93 mm
Control signal Three-point
Material housing Plastic
Ambient temperature 0 - 50
Manual operation
Potential free switch contact
Length of connection cable 2.2 m
Explosion-proof
Degree of protection (IP) IP40
Auxiliary contacts optional
Automatic travel recognition
Deactivated when closed
Connection to stop valve Brand-dependent
With mechanical setting indicator
Position reporting system None
Operating time 140 s
Torque 5 Nm
Suitable for valve
Max. angle of rotation 50 °
Transmission With cogwheels
Adjustable operating range
Return at zero supply voltage
Supply voltage 230 V AC
Auxiliary contacts
End contacts 2
Adjustable position feedback signal
