OKF-MQ25 Freestanding installation
Basic set (for one collector)

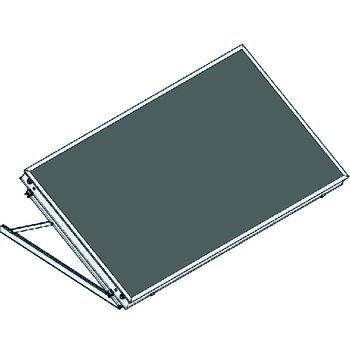

Freestanding installation "OKF-MQ25"

Basic set for the installation of one collector.

Pre-assembled aluminium mounting rails for horizontal freestanding installation of one collector with a minimum axis inclination of 35° - 55°. Two roof conduits are included.
No longer produced
Art.No.: 1361486
EAN: 4026755415278
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
2240 mm 190 mm 105 mm 9 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 2240 mm 190 mm 105 mm 9,5 kg

Images

Product images

  File size
248,94 KB
  Size
4260 px x 2454 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
42,8 KB
  Size
567 px x 438 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0 EC001236
Solar mounting frame
Property Value
Width 2215 mm
Height 908 mm
Depth 1234 mm
Suitable for Flat collector
Material Aluminium
