Logo Oventrop GmbH & Co. KG

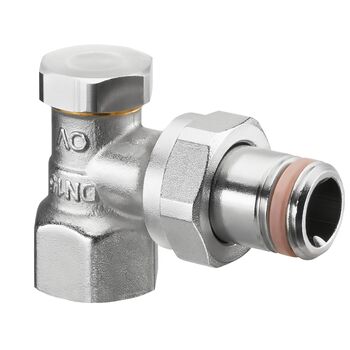

Combi 2 Radiator lockshield valve, angle (self-sealing)
DN 15, G ½ ET x Rp ½, PN 10, brass, nickel plated


The Combi 2 radiator lockshield valves are suitable for the lower connection of the pipework to radiators with conventional valve connection. The fittings have a proportional presetting and are suitable for use in central heating and cooling systems with closed circuits. The Combi 2 radiator lockshield valves are made of nickel plated brass.
Art.No.: 1091052
EAN: 4026755461466
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
73 mm 50 mm 30 mm 0,22 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 100 mm 80 mm 35 mm 0,22 kg
Carton 25 190 mm 185 mm 144 mm 5,61 kg
Europallet 3600 1200 mm 800 mm 1014 mm 830,41 kg

Images

Product images

  File size
284,42 KB
  Size
1954 px x 1655 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Surface protection Nickel-plated
Material housing Brass
Right-angled model
Adjustable
With drain
