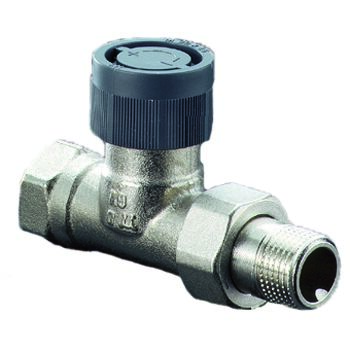

Valve for cooling systems "Series KTB"
DN 15, PN 10, straight pattern


Valves "KTB"

for use in chilled water circuits with control characteristic. Replacement of the valve insert by using a special tool without draining the system.

Bronze/brass fitting, body nickel plated. Stem made of stainless steel. For threaded and compression connections. Lengths according to DIN 3841 / EN 215.

Thermostat connection thread: M 30 x 1.5
----------
Art.No.: 1141804
EAN: 4026755187946
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
95 mm 66 mm 33 mm 0,3 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 100 mm 70 mm 35 mm 0,3 kg
Carton 25 295 mm 285 mm 105 mm 7,75 kg
Europallet 2000 1200 mm 800 mm 1100 mm 615 kg

Images

Product images

  File size
26,25 KB
  Size
340 px x 280 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
129,67 KB
  Size
709 px x 709 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
18,62 KB
  Size
597 px x 341 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Manual

  Name Size
114170481.pdf 323,62 KB

ETIM

Klassifizierung
ETIM 7.0 EC011435
Two way control valve
Property Value
Surface protection Nickel-plated
With flow measuring point
Automatic flow control
Article compression class PN 10
Max. medium temperature (continuous) 120 °C
Min. medium temperature (continuous) -20 °C
Flange compression class PN 10
Kv value 0.25 - 0.5
With connection 1 coupling
With connection 2 coupling
Housing material Brass
Kvs value 1
