Control unit DDC "CR-BX"
for up to 31 C-bus room modules


Control unit DDC "CR-BX"

The DDC "CR-BX" is used for central room temperature control. The actuators are connected to the control unit via the C-bus room modules. The integrated web server allows access to the system via a PC and standard web browser (e.g. Mozilla Firefox). The parameters (e.g. nominal temperature and time profiles) of the system can be set via the menu and the trend data as well as the current status can be queried.
to be discontinued
Art.No.: 1153250
EAN: 4026755372106
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
250 mm 185 mm 100 mm 1,68 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 312 mm 208 mm 127 mm 1,89 kg

Images

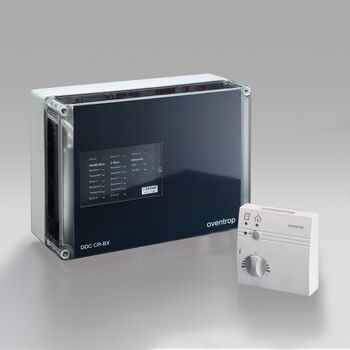

Product images

  File size
264,51 KB
  Size
3369 px x 3369 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
275,58 KB
  Size
2750 px x 2750 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
2,38 MB
  Size
7619 px x 7619 px
  Properties
  •  Clear product picture
  •  Cutout
Download

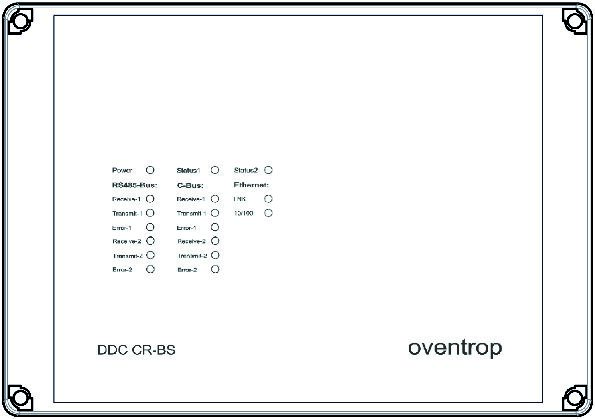

Drawings

  File size
35,05 KB
  Size
595 px x 419 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Technical data

ETIM

Klassifizierung
ETIM 7.0 EC001422
PLC function/technology module
Property Value
