Name: Set with Multiblock T, angle and Uni SH for radiator connection G ½ IT, with Multiblock T connection fitting, design cover, thermostat Uni SH and SH-Cap, stainless steel
Brand: OVENTROP
SKU: 1184384

Description Dimensions Images Documents ETIM

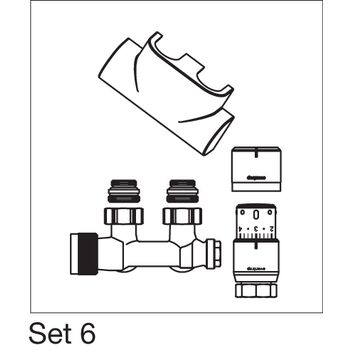

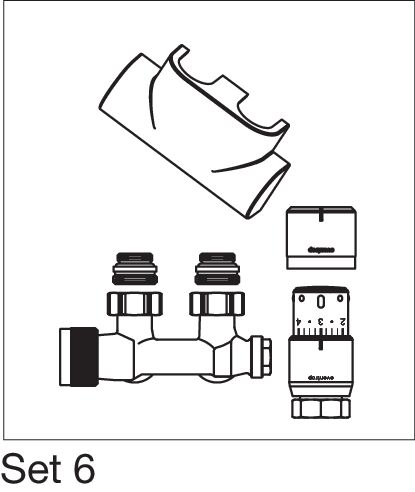

Set with Multiblock T, angle and Uni SH
for radiator connection G ½ IT, with Multiblock T connection fitting, design cover, thermostat Uni SH and SH-Cap, stainless steel

Connection set for towel radiators with Multiblock T and Uni SH.

For use on radiators with supply and return pipe connection. Distance between pipe centres 50 mm.

Consisting of:
- Multiblock T two pipe fitting, angle, with presetting
- Design cover
- Uni SH thermostat with threaded connection M 30 x 1.5
- SH-Cap

To be used as thermostatic valve for two pipe operation, as shutoff fitting, for draining and filling.

Uni SH thermostat with zero position, setpoint range: 7-28 °C, scaled cap: 0 * 1-5

Art.No.: 1184384
EAN: 4026755332506
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Download GAEB

Download tender text

Dimensions

Dimensions of article

Length	Width	Height	Weight
134 mm	89 mm	109 mm	0,78 kg

Packing units

Type	Qty.	Length	Width	Height	Weight
Carton	1	135 mm	90 mm	110 mm	0,84 kg
Carton	12	390 mm	295 mm	212 mm	10,5 kg
Europallet	480	1200 mm	800 mm	1215 mm	442,92 kg

Images

Product images

	File size 202,34 KB Size 3840 px x 3840 px Properties Clear product picture Cutout Download
	File size 432,14 KB Size 3745 px x 3745 px Properties Clear product picture Cutout Download
	File size 679,98 KB Size 5871 px x 5870 px Properties Clear product picture Cutout Download
	File size 1,1 MB Size 3745 px x 3745 px Properties Clear product picture Cutout Download
	File size 1,4 MB Size 5871 px x 5870 px Properties Clear product picture Cutout Download
	File size 14,59 KB Size 459 px x 368 px Properties Clear product picture Cutout Download
	File size 1,23 MB Size 3589 px x 3163 px Properties Clear product picture Cutout Download

Drawings

	File size 33,69 KB Size 596 px x 637 px Properties Clear product picture Cutout Download
	File size 20,36 KB Size 415 px x 492 px Properties Clear product picture Cutout Download

Documents

Manual

	Name	Size
	L_118401381.pdf more languages L_118401381.pdf Einbauanleitung L_118401381.pdf L_118401381_CS.pdf	4,12 MB

Brochure

	Name	Size
	“Exclusive radiator valves” for home and bath more languages Robinetterie et systèmes «haut de gamme» pour l’habitat Exklusive Armaturen und Systeme für Wohnungen und „Objekte“ Эксклюзивная арматура и системы для жилых помещений и зданий p_exclusive_nl.pdf Луксозни радиаторни вентили за жилища и бани Termostate şi ventile seria exclusivă pentru camere şi băi "Ексклюзивні радіаторні клапани" для дому	2,57 MB
	Thermostats “Uni SH” / “pinox H ” and fittings “Multiblock T/TF” for modern radiators and towel radiators more languages Thermostat «Uni SH»/«pinox H», et raccords «Multiblock T/TF» pour radiateurs modernes et radiateurs sèche-serviettes Thermostat „Uni SH”/„pinox H“ und „Multiblock T/TF” für moderne Radiatoren und Badheizkörper Combinación de Termostato “Uni SH” y bloque de conexión “Multiblock T” para radiadores modernos y toalleros Thermostaat "Uni SH", afsluiter "Reeks E" en "Multiblock T/TF" voor moderne woning- en badkamerradiatoren Termostat „Uni SH”, zawory typoszeregu „E” i „Multiblock T/TF” do grzejników łazienkowych Termostatická hlavice „Uni SH”, ventily „konstrukãní fiady E” a „Multiblock T/TF” pro moderní radiátory a koupelnová otopná tûlesa Термостати "Uni SH" / "pinox H" і фітинги "Multiblock T/TF" для сучасних радіаторів і рушникосушок	623,94 KB
	Room Temperature Control - Thermostats, Valves and Fittings more languages Raumtemperaturregelung_FR_2023_02_web.pdf Raumtemperaturregelung - Thermostate und Armaturen Reglarea temperaturii în încăperi - Termostate și armături Регулювання температури в приміщенні - Термостати, клапани та фітинги Regulacja temperatury pomieszczeń - Termostaty i armatura	3,81 MB

ETIM

Klassifizierung
ETIM 7.0

Property	Value
Type	H support block
Connection direction, pipes	Towards wall
Suitable for single pipe system
Suitable for two pipe system
Centre-to-centre distance	50 mm
Control element H, support block right
Control element H, support block left
Controllable
Size of pipe connection	3/4 inch Euro conus
Suitable for filling/drain tap
Size of radiator connection	1/2 inch
Radiator valve preset
With thermostat button
With design cover
