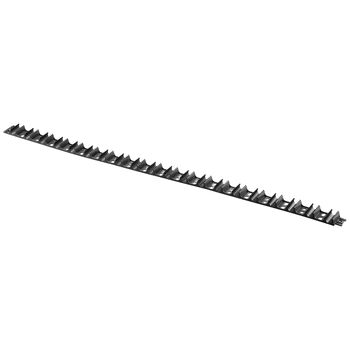

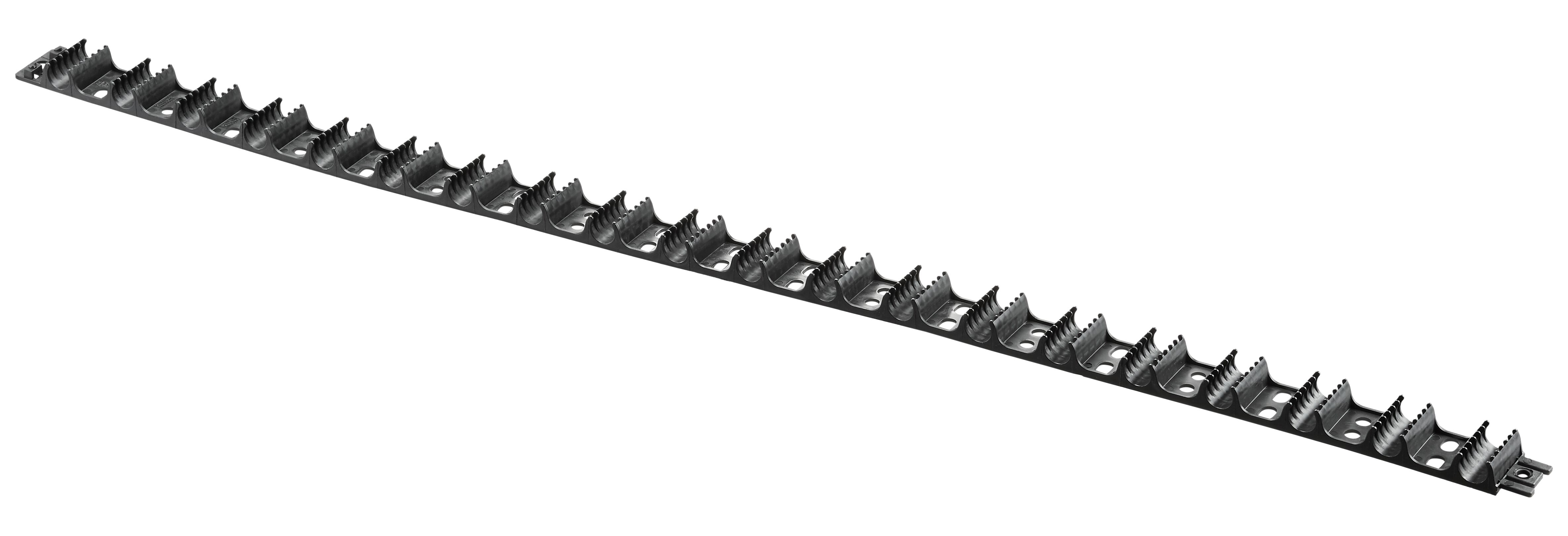

Clamping rail for Cofloor tacker system
self-adhesive, clamp distance 5 cm, for 16 mm pipes, length 1 m


The Cofloor tacker system consists of base mat rolls or folded boards, pipes and tacker hooks. This system can be used for new construction and renovation. The base mat rolls and the folded boards made of expanded polystyrene are provided with a laminated tissue foil and have an imprinted laying grid (grid distance 5 cm).

Fastening of the Oventrop Copex PE-Xc, Copert PE-RT plastic pipes or the Copipe HSC multi-layer composite pipes (14 mm, 16 mm and 17 mm) is carried out by means of tacker hooks or alternatively by means of self-adhesive clamping rails made of polypropylene. The base mat rolls and folded boards are laid out on the raw concrete or, if necessary, on the additional insulation.

The Cofloor tacker system enables inexpensive, quick and easy laying of the individual components. The clear picture of the laying grid facilitates a straight pipe guidance when fixing the pipe with the handy Oventrop tacker machine. Particularly suitable for standard-compliant concrete screed or liquid screed.
to be discontinued
Art.No.: 1402581
EAN: 4026755306552
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
1016 mm 37 mm 12 mm 0,16 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 1016 mm 37 mm 12 mm 0,16 kg
Carton 100 1037 mm 431 mm 151 mm 17,18 kg
Unknown 1000 1200 mm 848 mm 790 mm 185 kg

Images

Product images

  File size
213,6 KB
  Size
4736 px x 1618 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
478,33 KB
  Size
2362 px x 2362 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
11,77 KB
  Size
450 px x 265 px
  Properties
  •  Clear product picture
  •  Cutout
Download
