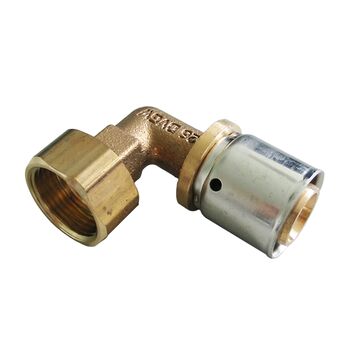

Press connection elbow with collar nut "Cofit P"
26 x 3.0 mm x G ¾ collar nut, bronze/stainless steel


----------
Art.No.: 1512757
EAN: 4026755329087
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
70 mm 32 mm 45 mm 0,17 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 70 mm 32 mm 45 mm 0,18 kg
Carton 5 200 mm 125 mm 75 mm 0,97 kg

Images

Product images

  File size
289,12 KB
  Size
2930 px x 2929 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
24,56 KB
  Size
660 px x 428 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
16,82 KB
  Size
595 px x 479 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Manual

  Name Size
L_151200080.pdf 247,35 KB

ETIM

Klassifizierung
ETIM 7.0 EC003024
Fitting with 2 connections
Property Value
Model Other
Shape Bend
Connection 1 Press sleeve
Connection 2 Inner thread cylindrical BSPP-G (ISO 228-1)
Bend angle 90 °
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Capped
With gaskets
Nominal inner diameter of connection 2 3/4 inch (20)
Eccentric
Gastec QA
KIWA certified
With drain
With de-aerator
Outer pipe diameter connection 1 26 mm
Length of connection 1 56 mm
Length of connection 2 30 mm
Working length connection 1 23.5 mm
Wall thickness, connection 1 3 mm
FM quality mark
VdS quality mark
UL quality mark
ULC quality mark
LPCB quality mark
Seal material Ethylene-propylene diene monomer rubber (EPDM)
Reducing
System-specific
Contour code Other
Material connection 1 Bronze
Material connection 2 Bronze
Material quality connection 1 CuSn5Zn5Pb2
Material quality connection 2 CuSn5Zn5Pb2
