Heating oil filter kit for two pipe sytems

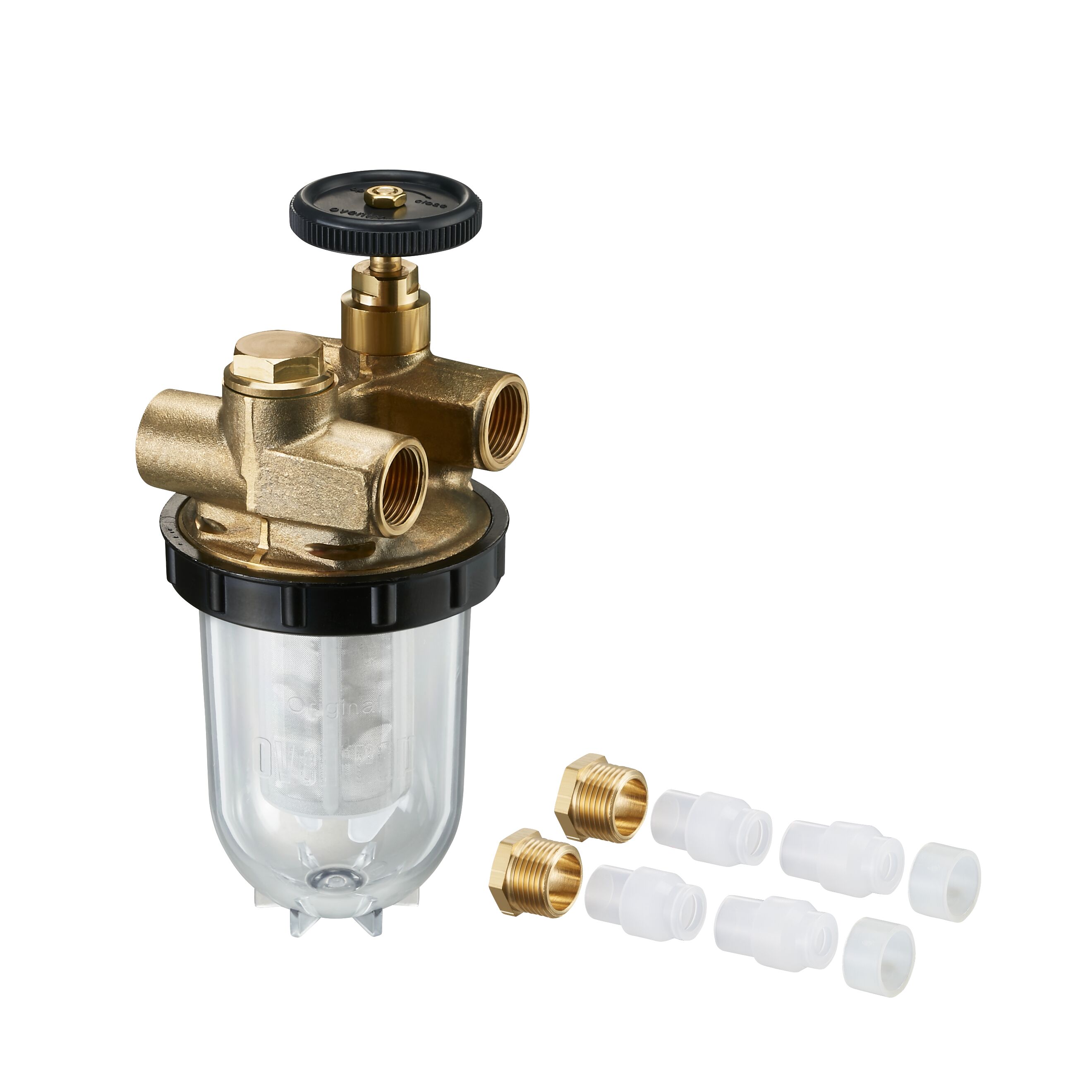

consisting of Oilpur heating oil filter item no. 2123103 and Ofix-Oil compression fittings item no. 2127700, packed in a carton


Plastic compression fittings are not approved in Germany and must therefore not be installed.
Art.No.: 2120153
EAN: 4026755290806
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
150 mm 70 mm 70 mm 0,7 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 155 mm 96 mm 73 mm 0,75 kg
Carton 10 590 mm 260 mm 220 mm 7,98 kg
Europallet 300 1200 mm 800 mm 1254 mm 261 kg

Images

Product images

  File size
261,01 KB
  Size
2640 px x 2640 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
11,99 KB
  Size
285 px x 232 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Surface protection Untreated
Material quality Other
Right-angled model
Mounting Before pump
Article compression class PN 6
Mesh width of filter element 0.1 mm
Filter element material Other
Housing material Plastic
With drain possibility (connection)
With coupling
Nominal inner diameter DN 10
With filter element
