Aquastrom KFR Combined free-flow with internal thread and drain bores G ¼ closed with plugs
with backflow preventer, DN 15, Rp ½, bronze

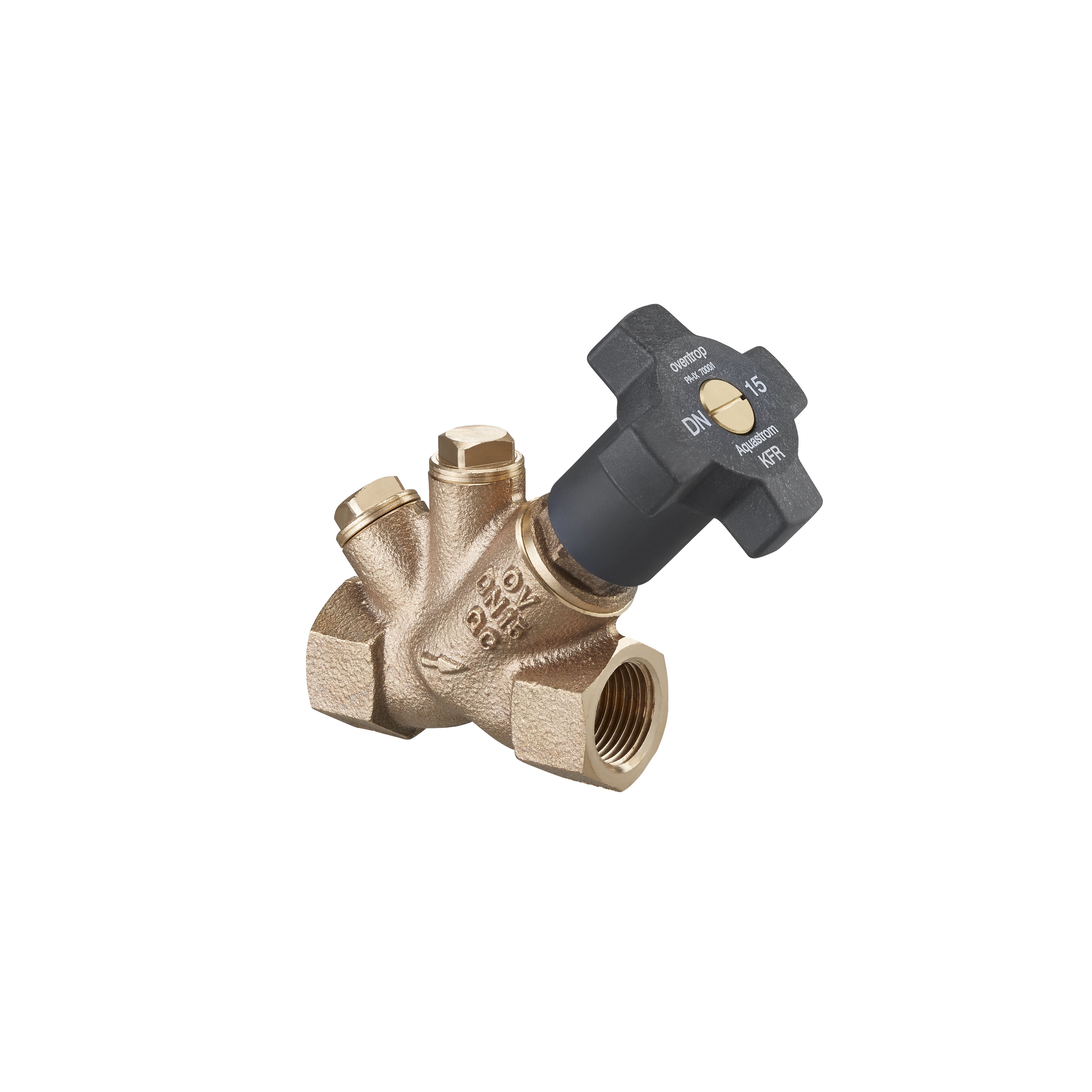

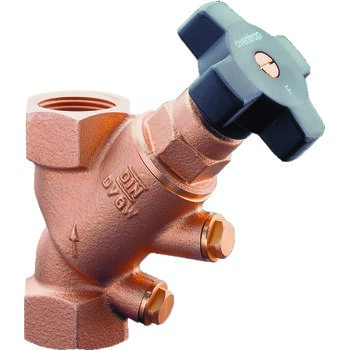

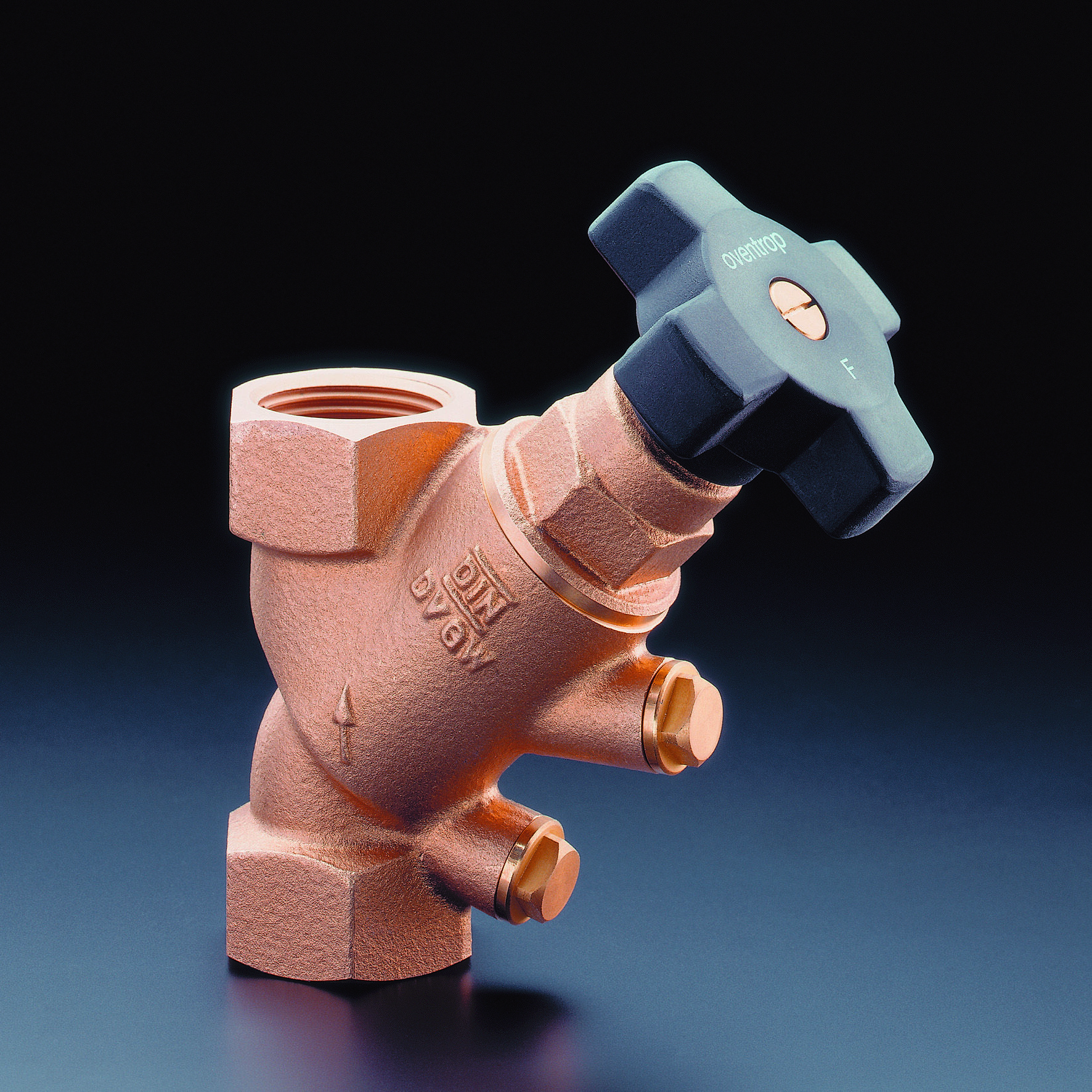

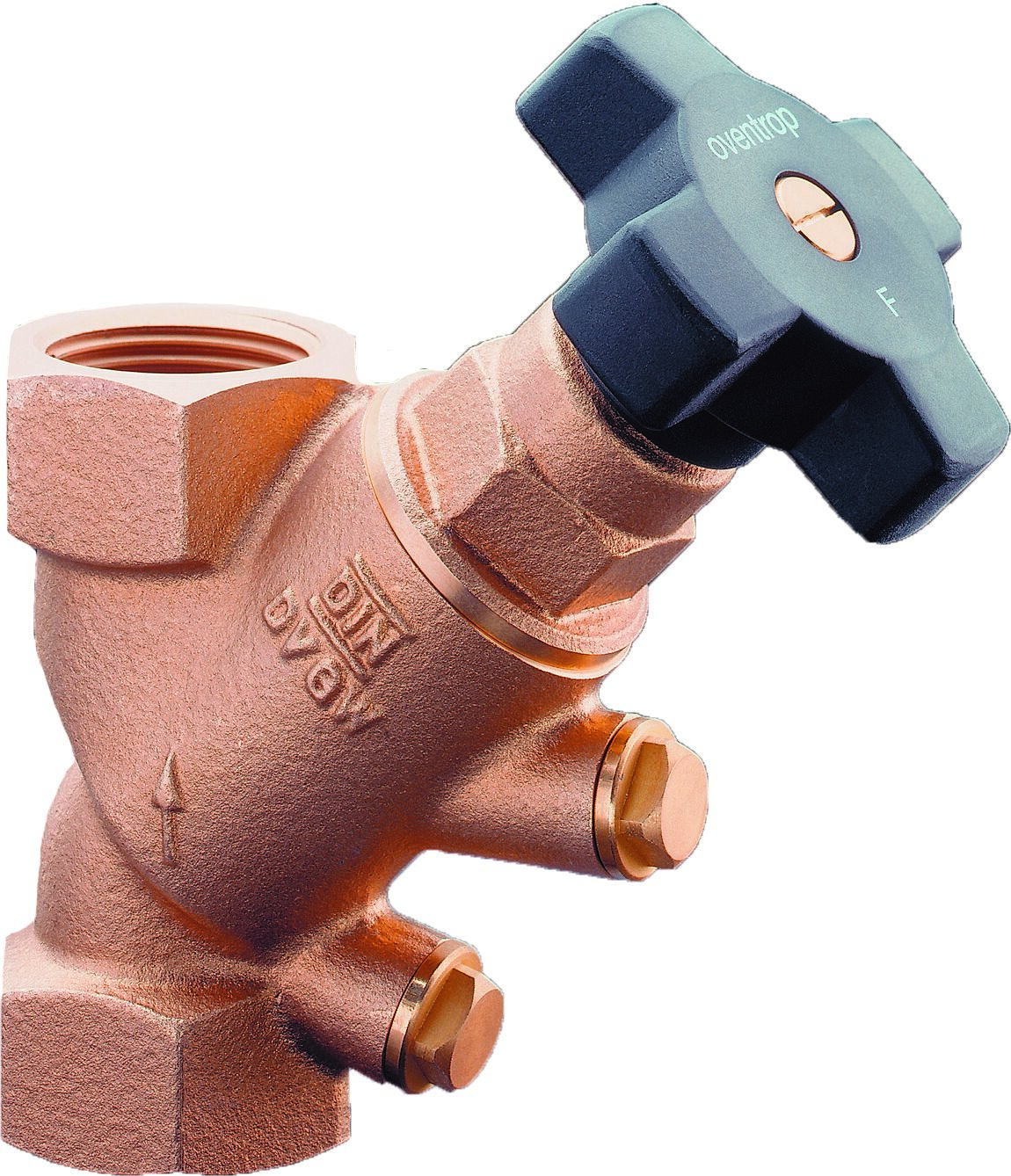

Aquastrom KFR valve

Combined free-flow valve with backflow preventer, PN 16. For potable water installations.

Y-pattern valve made of bronze with plastic handwheel. All functions accessible from the top. Maintenance-free spindle sealing by double O-ring. Stainless steel disc guide in plastic bearings.

DIN-DVGW tested. Sound insulation according to DIN 52218: Product group I.

With rising spindle.

Without draining facility. Drain bores in front of and behind the seat closed with plugs.

Both sides internal thread according to EN 10226.
No longer produced
Art.No.: 4205804
EAN: 4026755156799
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
103 mm 49,6 mm 92 mm 0,41 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 103 mm 49,6 mm 92 mm 0,41 kg
Carton 10 175 mm 175 mm 148 mm 4,2 kg

BIM/CAD

Download CAD-Formats
Format Size Download
Revit 512 KB
Download
DWG (3D) 178,13 KB
Download
DWG 40,85 KB
Download
DXF (3D) 926,27 KB
Download
DXF 170,25 KB
Download
STEP 168,25 KB
Download
OBJ / MTL 74,1 KB
Download

Notice for CAD viewer

In order to open the CAD-Viewer and Download CAD-Data please onetime download and install the CAD-App.

Images

Product images

  File size
491,35 KB
  Size
3840 px x 3840 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,31 MB
  Size
3716 px x 3716 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
101,95 KB
  Size
1181 px x 1181 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
496,41 KB
  Size
1150 px x 1338 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,23 MB
  Size
1772 px x 1772 px
  Properties
  •  Clear product picture
  •  Cutout
Download

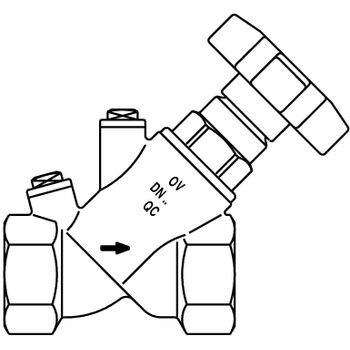

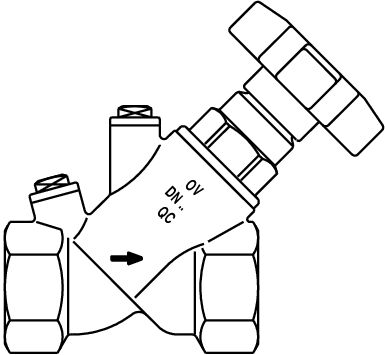

Drawings

  File size
19,5 KB
  Size
385 px x 355 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

System illustration

“Aquastrom T plus” for circulation pipes with thermal disinfection
A: Potable water cold
B: Potable water hot
C: Potable water circulation pipe
D: System with storey branches
E: Total circulation without storey branches
F: Furthest point of network

ETIM

Klassifizierung
ETIM 7.0
Property Value
Surface protection Untreated
Material housing Bronze
Max. medium temperature (continuous) 120 °C
KIWA certified
With drain
Handle/hand wheel height 89 mm
Length of handle/diameter of hand wheel 50 mm
Spindle angle 45 °
Operation using hand wheel
With connection 1 coupling
With connection 2 coupling
Housing material Bronze
With drain possibility (connection)
