Name: Potable water circulation module for Regudis W-HTE dwelling stations
Brand: OVENTROP
SKU: 1344555

Description Dimensions Images Documents ETIM

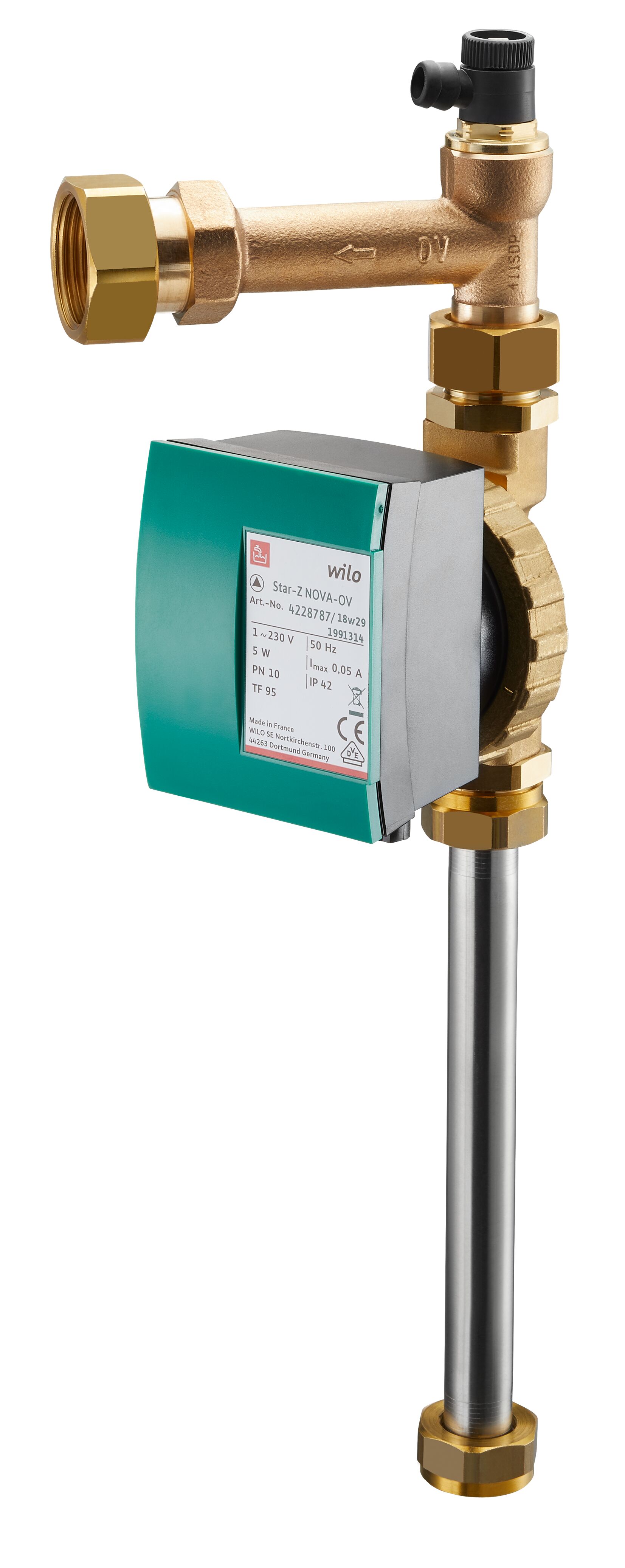

Potable water circulation module
for Regudis W-HTE dwelling stations

Potable water circulation module

For the extension of the Regudis W-HTE by a time controlled potable water circulation function.

Consisting of:
- High-efficiency pumpe Wilo Star Z Nova
- Timer
- Pipe connection group

Art.No.: 1344555
EAN: 4026755447408
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Download GAEB

Download tender text

Is module of

Regudis W-HTE Electronic dwelling station performance range 1, 12 l/min., heat exchanger copper brazed
Item no. 1344030

Regudis W-HTE Electronic dwelling station performance range 2, 18 l/min., heat exchanger copper brazed
Item no. 1344031

Regudis W-HTE Electronic dwelling station performance range 3, 25 l/min., heat exchanger copper brazed
Item no. 1344032

Regudis W-HTE Electronic dwelling station performance range 1, 12 l/min., heat exchanger copper brazed, with Sealix® protecitve layer
Item no. 1344050

Regudis W-HTE Electronic dwelling station performance range 2, 18 l/min., heat exchanger copper brazed, with Sealix® protecitve layer
Item no. 1344051

Regudis W-HTE Electronic dwelling station performance range 3, 25 l/min., heat exchanger copper brazed, with Sealix® protecitve layer
Item no. 1344052

Spare parts

Item no. 1344488

Dimensions

Dimensions of article

Length	Width	Height	Weight
365 mm	120 mm	110 mm	2,04 kg

Packing units

Type	Qty.	Length	Width	Height	Weight
Carton	1	460 mm	170 mm	155 mm	2,36 kg

Images

Product images

File size

414,68 KB

Size

1870 px x 4148 px

Properties

Clear product picture
Cutout

Download

Drawings

File size

18,22 KB

Size

184 px x 500 px

Properties

Clear product picture
Cutout

Download

Documents

Manual

	Name	Size
	Operating instructions more languages Notice d’utilisation Einbauanleitung Trinkwasserzirkulations-Modul Instrucțiuni de operare	4,47 MB

Technical data

	Name	Size
	Regudis W-HTE Technical information more languages Regudis W-HTE Information technique Regudis W-HTE Datenblatt Regudis W-HTE Fișă tehnică	2,57 MB

Circuit diagram

	Name	Size
	1155009-34A Regudis W-HTE, connecting block (time switch), pump logic, potable water circulation more languages 1155009-34A Regudis W-HTE, Anschlussleiste mit Timerfunktion, Pumpenlogik, Trinkwasserzirkulation	295,16 KB
	1155009-38A Regudis W-HTE, Regtronic RH, connecting block (time switch), pump logic, potable water circulation more languages 1155009-38A Regudis W-HTE, Regtronic RH, Anschlussleiste mit Timerfunktion, Pumpenlogik, Trinkwasserzirkulation	334,98 KB
	1155021-32 Regudis W-HTE radiator application, potable water circulation more languages 1155021-32 Regudis W-HTE Radiator Anwendung, Trinkwasserzirkulation	108,81 KB
	1155021-34B Regudis W-HTE, connecting block, pump logic, potable water circulation, leader - follower more languages 1155021-34B Regudis W-HTE, Anschlussleiste, Pumpenlogik, Trinkwasserzirkulation, Master-Slave	286,74 KB
	1155021-38B Regudis W-HTE, Regtronic RH, connecting block, pump logic, potable water circulation, leader - follower more languages 1155021-38B Regudis W-HTE, Regtronic RH, Anschlussleiste, Pumpenlogik, Trinkwasserzirkulation, Master-Slave	323,73 KB

Brochure

	Name	Size
	Regudis_W-HTE_EN_2023_02_web.pdf more languages Regudis W-HTE - Station d'appartement électronique Regudis W-HTE - Elektronische Wohnungsstation Regudis W-HTE - Estación de vivienda electrónica Regudis W-HTE - Elektronisch gestuurd woningstation Regudis W-HTE - Elektroniczny węzeł mieszkaniowy Regudis W-HTE - Електронна домашна станция Modul termic electronic - Regudis W-HTE	3,32 MB

Certificate

	Name	Size
	svgw_regudis_30.11.2022.pdf	1,61 MB

ETIM

Klassifizierung
ETIM 7.0	EC010971 Accessories/parts for hot tap water heater

Property	Value
Accessories/parts for gas water-boiler	Other
Accessories/parts for hot tap water heater	Other
