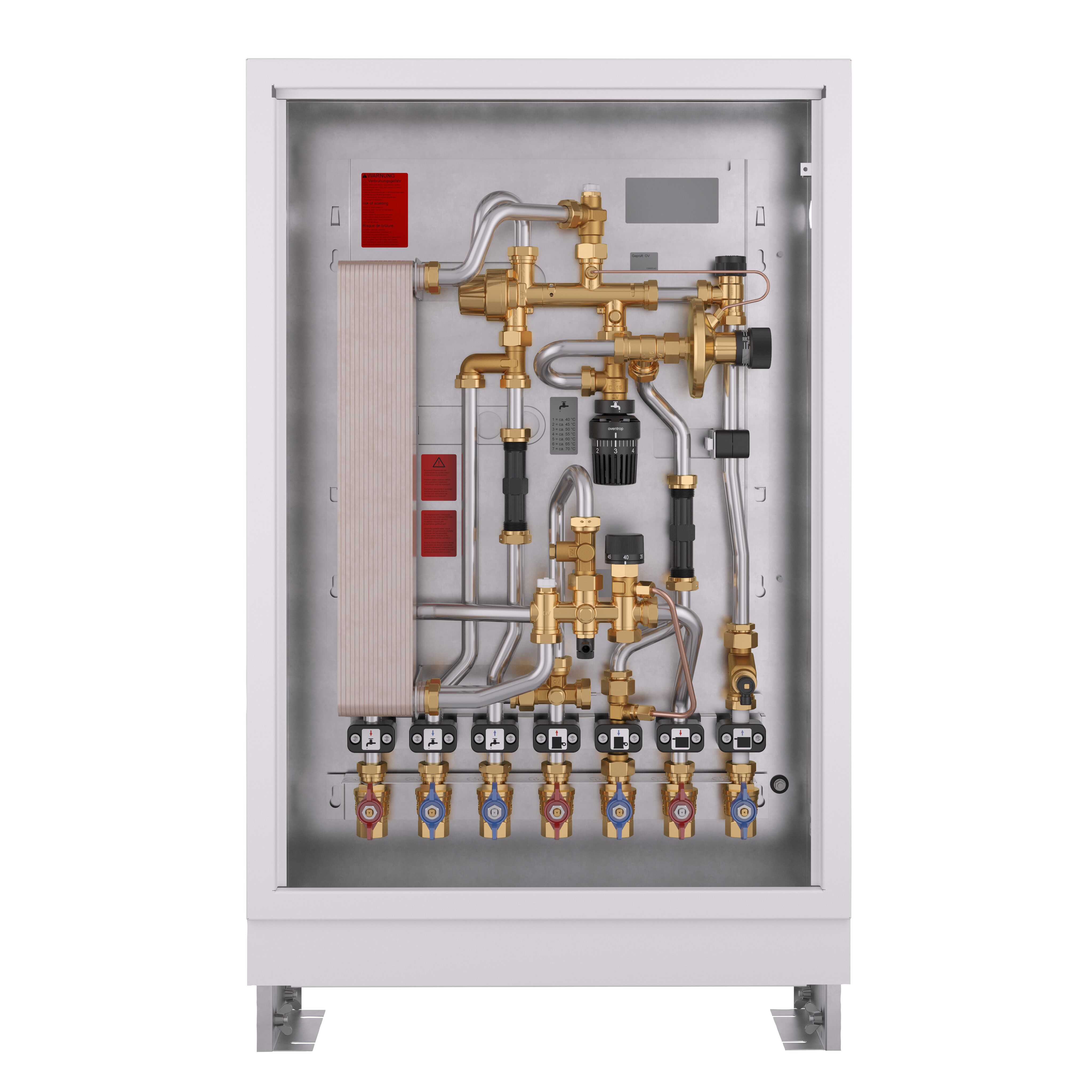

Dwelling station "Regudis W-HTU"
17 l/min., heat exchanger nickel brazed


"Regudis W-HTU" Dwelling station Hot potable water performance range - 17 l/min.

For the supply of heat and cold and hot potable water to individual dwellings without using auxiliary energy. Station completely pre-assembled on a base plate, leakage and function tested at works.

Consisting of:

-Nickel brazed stainless steel heat exchanger, vertically installed, which reduces the risk of calcification
-Proportional flow controller with potable water priority function and integrated cold water throttling disc (the components of the potable water circuit are coated)
-Thermostatic temperature controller with quick- acting sensor for the control of the hot water outlet temperature
-Spacer for heat meter installation 110 mm, G ¾ with reducer for sensor connection G ½ for use of direct immersion sensors
-Cold water dwelling connection with spacer for water meter 110 mm, G ¾ to meter the total water consumption of a dwelling
-Valve for zone control which can be equipped with an actuator
-Facility for the deaeration and draining of the heating circuit
-Differential pressure regulator in the primary return for differential pressure regulation during quickly alternating operational conditions when drawing off hot water
-Strainer in the primary supply and heating circuit return
-7 flat sealing G ¾ collar nuts for the connection of the station to the supply pipes and the potable water circuit of the dwelling
-Complete piping of the station made of stainless steel, 18 x1

Min. cold water pressure: without flow limiter: 2.0 bar
                                       with flow limiter: 2.5 bar
Min. differential pressure supply: 300 mbar
Draw off temperature tdraw off: 40 °C up to 70 °C
Min. flow temperature: tdraw off + 15 K
Art.No.: 1341052
EAN: 4026755384871
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
150 mm 476 mm 630 mm 16,86 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 190 mm 515 mm 690 mm 18,34 kg
Europallet 10 1200 mm 800 mm 1080 mm 206 kg

CAD

Notice for CAD viewer

In order to open the CAD-Viewer and Download CAD-Data please onetime download and install the CAD-App.

Images

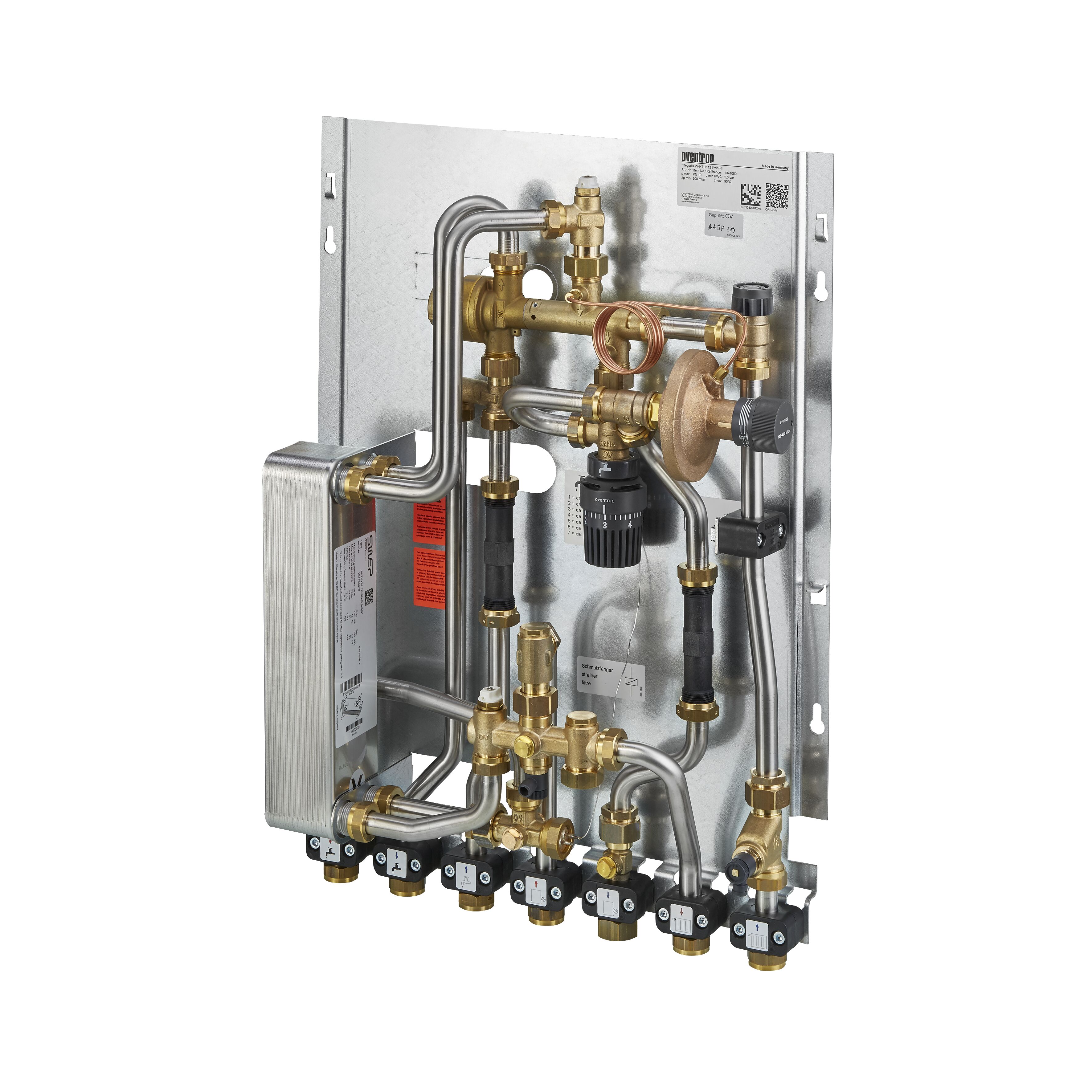

Product images

  File size
931,11 KB
  Size
3543 px x 3544 px
  Properties
  •  Clear product picture
  •  Cutout
Download

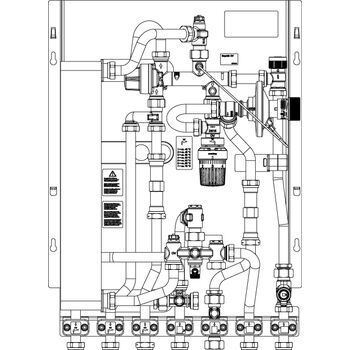

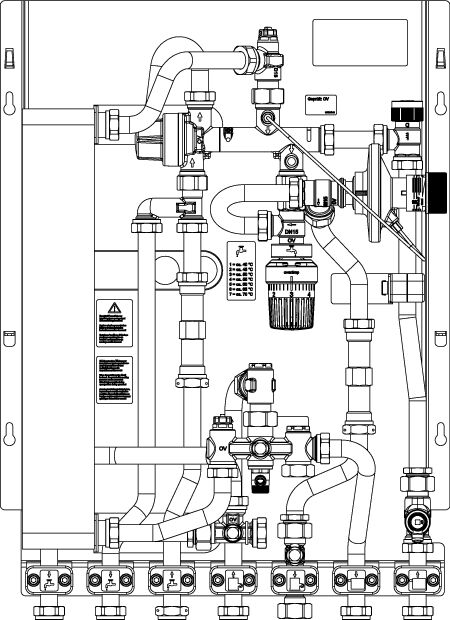

Drawings

  File size
116,87 KB
  Size
450 px x 620 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Technical data

Manual

  Name Size
L_134103081.pdf 259,23 KB
L_134103080.pdf 9,8 MB
L_134103144.pdf 697,23 KB
134103082.pdf 1,5 MB
L_135727081.pdf 616,17 KB

Certificate

  Name Size
wras_regudis_w-htu_bis_31.12.2023.pdf 824,59 KB

ETIM

Klassifizierung
ETIM 7.0 EC012346
District heating unit
Property Value
Width 476 mm
Model Indirect
Height 645 mm
Depth 140 mm
Suitable for CH/tap water
With adapter for heat meter
With heat meter
Tap water power 42 kW
Adjustment range hot water temperature 40 - 70
Nominal internal diameter hot tap water 3/4 inch (20)
Nominal inner diameter cold tap water 3/4 inch (20)
Tap capacity at 60°C, continuous 17 l/min
Max. operating pressure 1000 kPa
Exchanger with dual separation
Nominal inner diameter heating 3/4 inch (20)
Nominal inner diameter of supply 3/4 inch (20)
Nominal inner diameter return 3/4 inch (20)
