Name: Regucor WHS Energy storage centre type 1000, heat exchanger nickel brazed
Brand: OVENTROP
SKU: 1383567

Description Dimensions Images Documents ETIM

Regucor WHS Energy storage centre
type 1000, heat exchanger nickel brazed

Regucor WHS energy storage centre

Modular system for the solar-supported supply of heating and hot water to detached and semi-detached houses. The storage cylinder and the add-on groups are functionally and thermo-dynamically matched to each other. With integrated piping and ready-to-plus-in wiring. For combination with conventional (e.g. gas/oil) and regenerative heat generators (e.g. heat pump/solid fuel) in existing and new buildings.

Consisting of:

Solarer buffer storage cylinder:
System storage cylinder type 1000
Nominal capacity: 900 litres
Total height (without thermal insulation): 2055 mm
Diameter (without thermal insulation): 790 mm
Max. tipping height (without thermal insulation): 2100 mm
Connections: 8 x G 1½ IT
Max. operating pressure ps: 3 bar (coil 10 bar)
Operating temperature: ts: 95 °C (coil 110 °C)
With removable 140 mm fleece insulation and inteagrated temperature stratification unit. Connections and mounting positions matched to the Regucor WHS add-on units.

Solar add-on unit:
Regusol L-130 DN 20 with Wilo TEC 15/7 PWM circulation pump, flow meter 2-15 l/min, safety group for pipeline installation 6 bar, connections G ¾ ET according to DIN V 3838.

Fresh water add-on unit:
Regumaq XH DN 20 hydraulically controlled product assembly with heat exchanger for hygienic hot potable water preparation according to the continuous flow principle.
Recommended discharge capacity: 15-20 l/min, depending on the set potable water temperature and the existing buffer storage cylinder temperature
Connections: G ¾ ET, flat sealing
With Wilo Yonos Para RS 15/7 high-efficiency pump, temperature controller 40 - 70 °C and nickel brazed heat exchanger made of stainless steel.

Heating circuit add-on unit:
Regumat M3-130 DN 20
For weather-compensated flow temperature control.
Connections: G 1 ET, flat sealing
With Wilo Stratos PICO 15/1-6 pump, three-way mixing valve and actuator.

Multifunctional system controller:
Regtronic RS for controlling the Regucor energy storage centre and other system components. Up to 12 free inputs and up to 9 free solid-state relay outputs. S-bus for connection to the DynaTemp CS-BS data logger. SD card slot for data recording.

Art.No.: 1383567
EAN: 4026755394924
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Download GAEB

Download tender text

Accessories

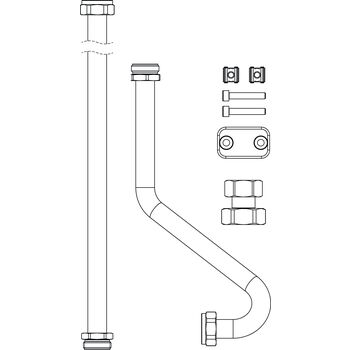

Extension set heating circuit for Regucor WH/WHS energy storage centres and Regumat M3-130 station for heating circuits DN 20
Item no. 1383575

Potable water circulation set for Regumaq XH fresh water station and Regucor WH/WHS energy storage centres, with circulation pump Wilo-Star Z Nova C and time switch
Item no. 1381047

Extension set zone loading for Regucor W/WHS energy storage centres
Item no. 1383583

Connection set for Regucor WH/WHS energy storage centres
Item no. 1383580

Sensor LW TH Safety temperature monitor with concealed temperature setting
Item no. 1143000

Solar Diaphragm expansion tank Nominal volume 18 l
Item no. 1361421

Solar Diaphragm expansion tank Nominal volume 25 l
Item no. 1361422

Solar Diaphragm expansion tank Nominal volume 33 l
Item no. 1361423

Solar valve with lead sealable cap "Expa Con" DN 20, Rp ¾ F x G ¾ M
Item no. 1364185

Sensor LW TH Temperature sensor for temperature measurement and detection in immesion sleeves and storage cylinders, PT 1000 sensor element, continuous temperature range up to 105°C, length 3 m
Item no. 1369093

Sensor LW TH Temperature sensor for temperature measurement and detection at collectors, PT 1000 sensor element, continuous temperature range up to 180°C, length 2 m
Item no. 1369094

Potable water circulation set for Regumaq XH fresh water station and Regucor WH/WHS energy storage centres, without circulation pump
Item no. 1381049

Connection set for Regucor WH/WHS energy storage centres
Item no. 1383584

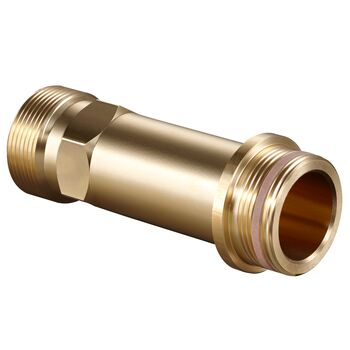

Extension for passing the electrical immersion heater through the thermal insulation
Item no. 1383592

Extension for passing the connection pipe for storage cylinder loading through the thermal insulation
Item no. 1383593

Electrical immersion heater with controller/limiter combination
Item no. 1383594

Dimensions

Dimensions of article

Length	Width	Height	Weight
1600 mm	1200 mm	2380 mm	254 kg

Packing units

Type	Qty.	Length	Width	Height	Weight
Carton	1	1600 mm	1200 mm	2510 mm	274 kg

Images

Product images

File size

2,76 MB

Size

5551 px x 5567 px

Properties

Clear product picture
Cutout

Download

Drawings

File size

55,99 KB

Size

598 px x 1212 px

Properties

Clear product picture
Cutout

Download

Documents

Manual

	Name	Size
	138356584.pdf more languages 138356584.pdf 138356584.pdf	529,29 KB
	L_138355080.pdf more languages L_138355080.pdf Einbauanleitung Regucor WHS L_138355080.pdf	20,99 MB
	L_138355081.pdf more languages L_138355081.pdf Einbauanleitung Regucor WHS Systembeschreibung L_138355081.pdf	10,18 MB
	L_134103144.pdf more languages L_134103144.pdf Beiblatt Korrosionsschutz Anforderung an das Trinkwasser L_134103144.pdf L_134103144.pdf L_134103144.pdf	1,02 MB
	L_135727081.pdf more languages L_135727081.pdf Beiblatt Sicherheitshinweise für Stationen L_135727081.pdf	616,17 KB
	138355582.pdf	7,37 MB

Technical data

	Name	Size
	Regucor WHS Technical information more languages Regucor WHS Datenblatt Regucor WHS Scheda tecnica	2,68 MB

Brochure

	Name	Size
	“Regucor” Energy storage centres for “Power to heat”, solar thermal energy, potable water and heating more languages «Regucor» Unités centrales d’accumulation d’énergie „Regucor“- Energiespeicher-Zentralen für „Power-to-Heat“, Solarthermie, Trinkwasser und Heizung Centros de acumulación de energía “Regucor” para “Power to heat”, energía solar térmica, agua potable y calefacción „Regucor WHS“ Küttesõlm akumulatsioonipaagiga Енергоспестяваща чентрала „Regucor WHS“ Regucor WHS“ Systémový zásobník Regucor energieopslagsystemen voor Power-to-Heat, zonneverwarming, drinkwater en verwarming „Regucor WHS” – centrala grzewcza Bufor ciepła z zestawem urzàdzeƒ do zasilania instalacji grzewczej i podgrzewu wody u˝ytkowej Stocator multifuncţional „Regucor“ „Regucor“ Sistema d’accumulo	3,32 MB
	Solar thermal energy - Stations controllers, collectors, accessories, service, software more languages Energie solaire - Stations, régulateurs, capteurs, accessoires, service, logiciels Solarthermie - Stationen, Regler, Kollektoren, Zubehör, Service, Software Energía solar térmica Grupos, controladores, colectores, accesorios Servicio, software Zonneverwarming Stations, regelaars, collectors, accessoires Service, Software Instalacje solarne – Grupy solarne, sterowniki, kolektory, osprzęt Соларна енергия „Подгряване на питейна вода и отопление“ Гелиосистемы Станции, контроллеры, коллекторы, комплектующиесервис, программное обеспечение Sisteme termice solare - Staţii, regulatoare, colectoare, accesorii, service, software Solare termico - Gruppi, Centraline, Collettori, Accessori, Servizi, Software Solarthermie Solární systémy stanice, regulátory, kolektory, pfiíslu‰enství, servis, software	7,93 MB

ETIM

Klassifizierung
ETIM 7.0

Property	Value
