"Aktor R ST L" rotary actuator
for six-way ball valve, for DN 15 and DN 20


"Aktor R ST L" rotary actuator for six-way ball valve, for DN 15 and DN 20
Art.No.: 1132030
EAN: 4026755446623
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
160 mm 105 mm 80 mm 0,48 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 185 mm 145 mm 89 mm 0,58 kg

Images

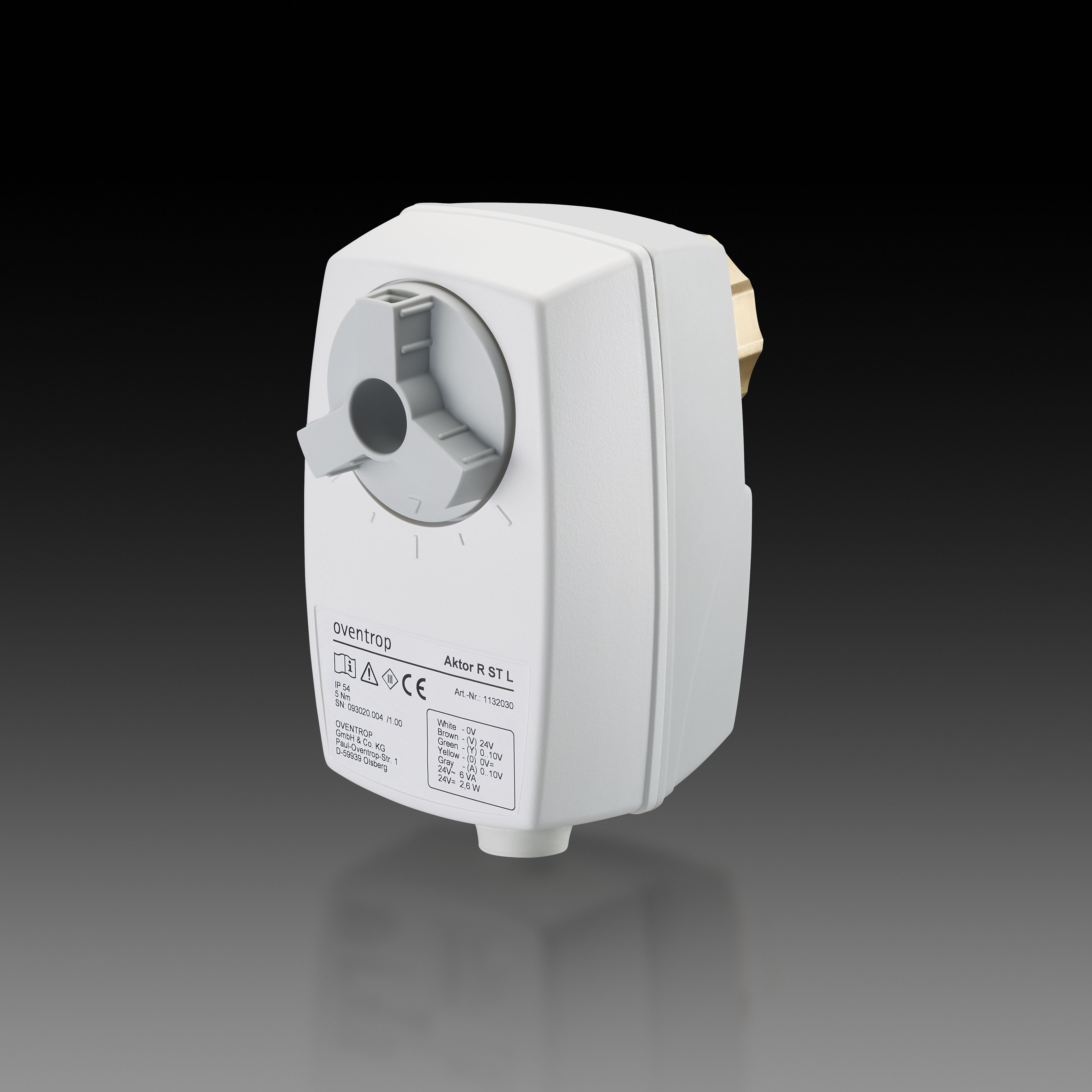

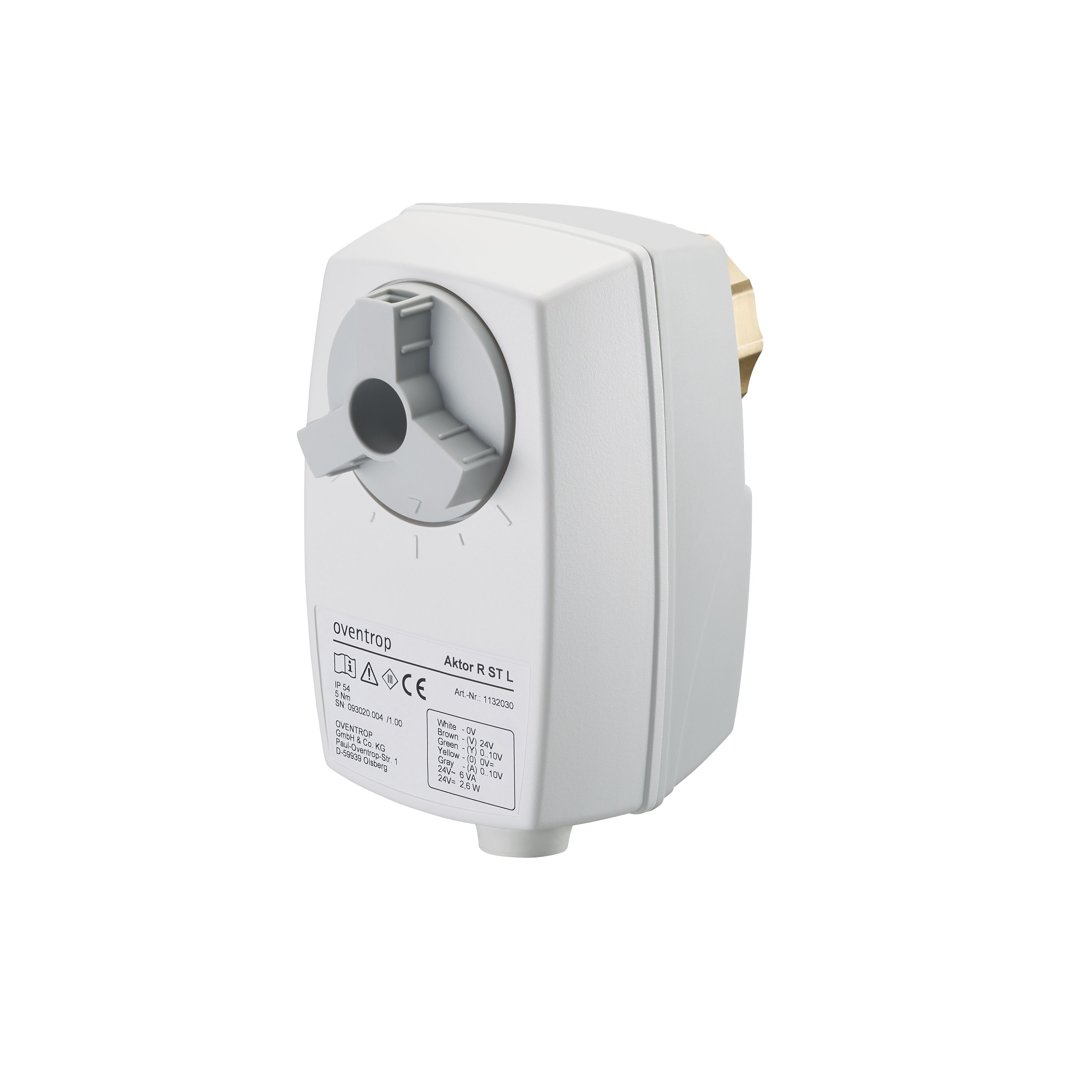

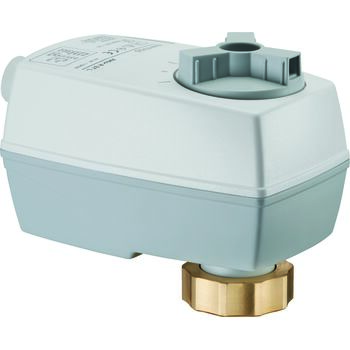

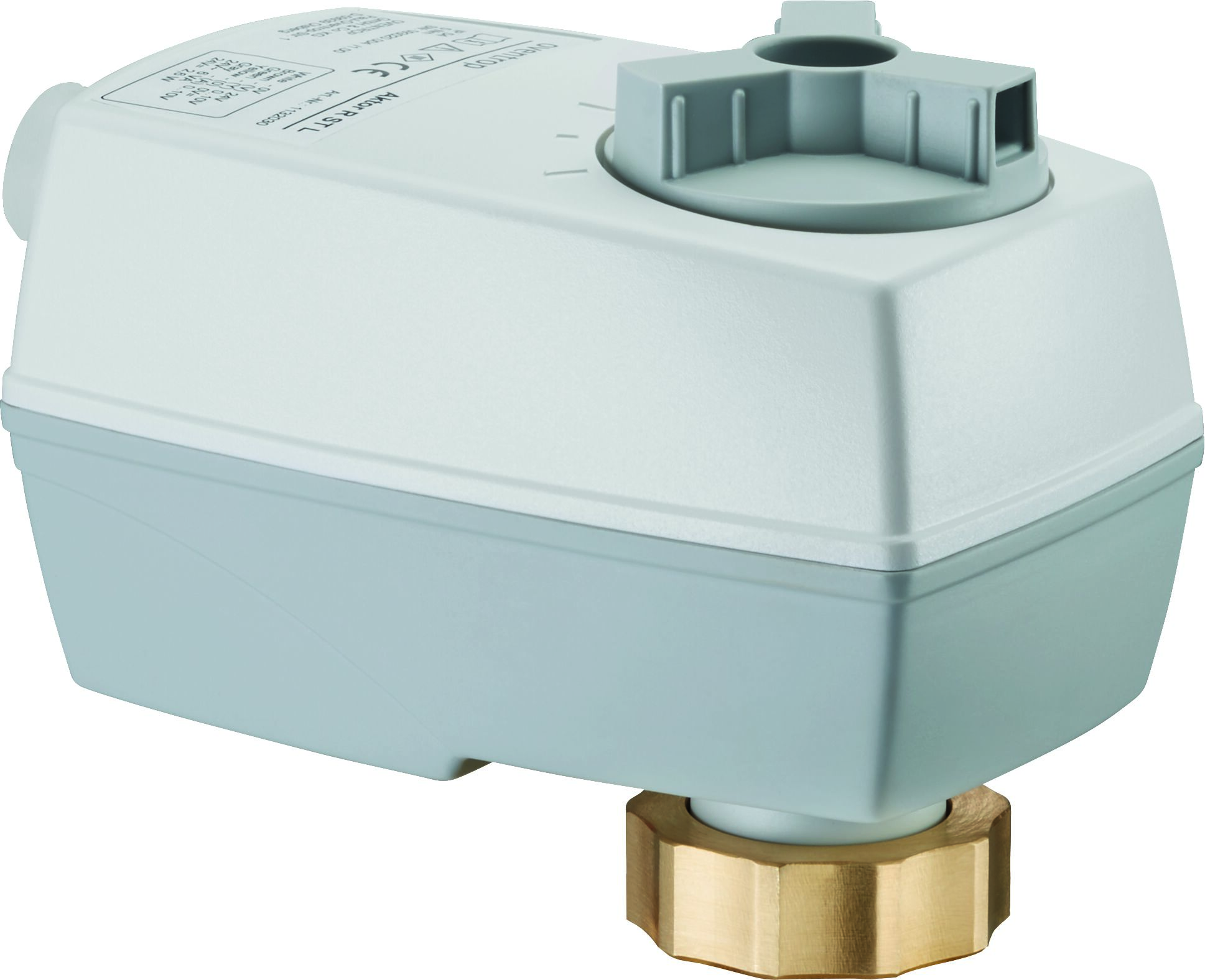

Product images

  File size
352,75 KB
  Size
4179 px x 4179 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
174,04 KB
  Size
1937 px x 1576 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
544,38 KB
  Size
4179 px x 4179 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
10,17 KB
  Size
448 px x 313 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Control signal 0-10 V
Length of connection cable 1.5
Degree of protection (IP) IP54
Torque 5
Suitable for valve
