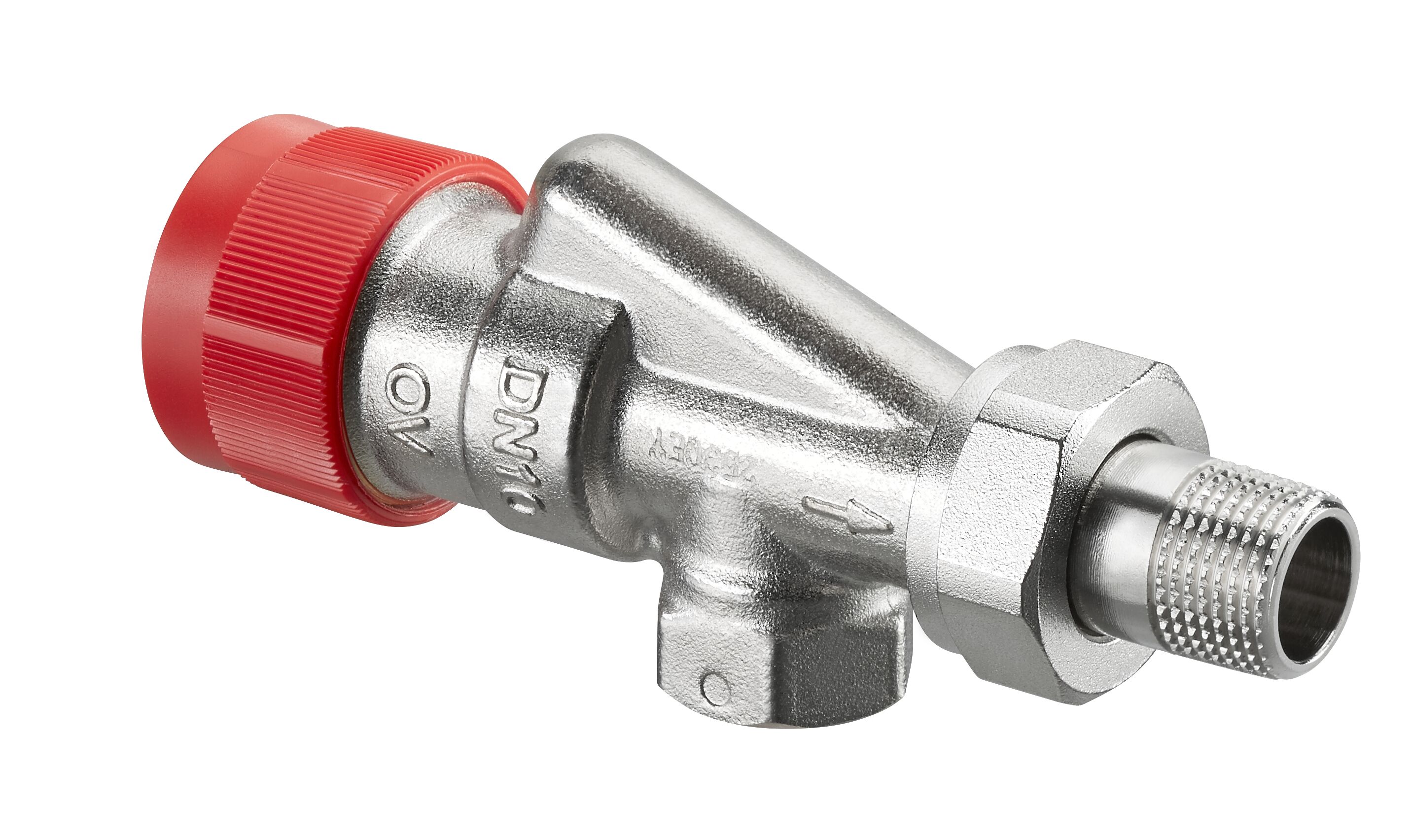

AF Thermostatic valve reversed angle
DN 10, Rp ⅜ x R ⅜, PN 10


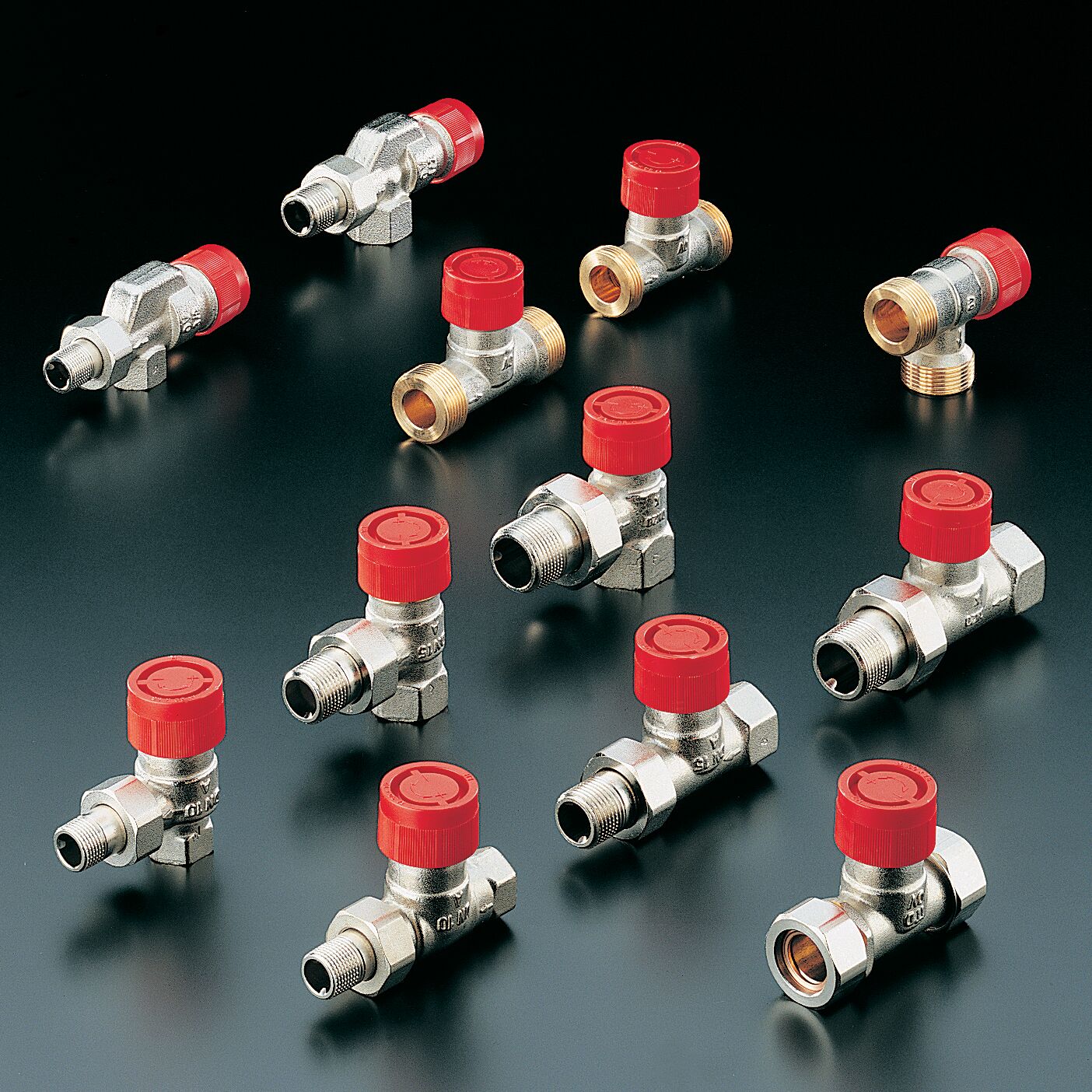

Thermostatic radiator valve “Series F”

For use in central heating systems, especially suitable for direct or indirect connection to district heating circuits (according to AGFW work sheet FW 507). Central heating systems with a high temperature differential and systems requiring the setting of low flow rates.

With infinitely adjustable fine presetting.

Modification of the hidden presetting and replacement of the valve insert without draining the system.

Bronze/brass valve with nickel plated body, stem made of stainless steel. For threaded and compression connection. Tested and approved according to EN 215.

All valves of the "Series F" have a red protection cap, the gland nut as from end of 1993 has a red mark.

Thermostat connection thread: M 30 x 1.5
Art.No.: 1180903
EAN: 4026755420739
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Actuators

Aktor T 2P Electrothermal actuator, two point control 230 V AC, normally closed, M 30 x 1.5
Item no. 1012415
Aktor T 2P Electrothermal actuator, two point control 24 V AC / DC, normally closed, M 30 x 1.5
Item no. 1012416
Aktor T 2P Electrothermal actuator, two point control 230 V AC, normally open, M 30 x 1.5
Item no. 1012425
Aktor T 2P Electrothermal actuator, two point control 24 V AC / DC, normally open, M 30 x 1.5
Item no. 1012426
Aktor T 2P Electrothermal actuator, two point control 230 V AC, normally closed with integrated auxiliary switch, M 30 x 1.5
Item no. 1012435
Aktor T 2P Electrothermal actuator, two point control 24 V AC / DC, normally closed, M 30 x 1.5, cable length 2 m
Item no. 1012442
Aktor T 2P Electrothermal actuator, two point control 230 V AC, normally closed, M 30 x 1.5, cable length 2 m
Item no. 1012452
Aktor T 2P Electrothermal actuator, two point control 230 V AC, normally closed, M 30 x 1.5, cable length 5 m
Item no. 1012455
Aktor T 2P Electrothermal actuator, two point control 230 V AC, normally closed, M 30 x 1.5, cable length 10 m
Item no. 1012459
Aktor M Electromotive actuator, two point control, with short operating time (3 s), connection thread M 30 x 1.5 230 V AC
Item no. 1012710
Aktor M Electromotive actuator, two point control, with short operating time (3 s), connection thread M 30 x 1.5 24 V AC / DC
Item no. 1012711
Aktor M Electromotive actuator, steady with 0 - 10 V, connection thread M 30 x 1.5 24 V AC / DC, modulating proportional actuator
Item no. 1012717
Aktor M Electromotive actuator, steady with 0 - 10 V, connection thread M 30 x 1.5 24 V AC / DC, modulating proportional actuator
Item no. 1012725
Aktor M Electromotive actuator, steady with 0 - 10 V, connection thread M 30 x 1.5 24 V AC / DC, modulating proportional actuator
Item no. 1012726
Aktor M Electromotive actuator actuator, two point and three point control, connection thread M 30 x 1.5 230 V AC
Item no. 1012729
Aktor M Electromotive actuator with KNX interface, connection thread M 30 x 1.5 21 - 32 V DC (from KNX bus)
Item no. 1012746
Aktor T ST Electrothermal actuator, 0 - 10 V control, connection thread M 30 x 1.5 24 V AC, normally closed
Item no. 1012953
mote 320 Wireless actuator (proprietary radio communication) battery operated, connection thread M 30 x 1.5
Item no. 1150665

Dimensions

Dimensions of article

Length Width Height Weight
110 mm 43 mm 33 mm 0,26 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 111 mm 44 mm 34 mm 0,27 kg
Carton 25 297 mm 282 mm 119 mm 6,91 kg
Europallet 2000 1200 mm 800 mm 1100 mm 297,52 kg

CAD

Notice for CAD viewer

In order to open the CAD-Viewer and Download CAD-Data please onetime download and install the CAD-App.

Images

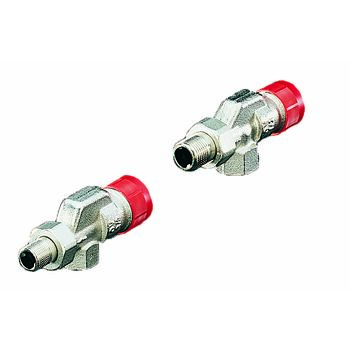

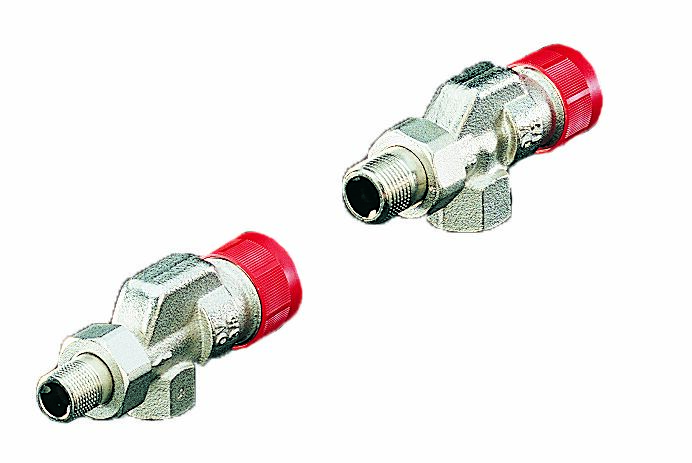

Product images

  File size
471,97 KB
  Size
2868 px x 1704 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
49,86 KB
  Size
692 px x 463 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
354,92 KB
  Size
1404 px x 1404 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
17,52 KB
  Size
323 px x 148 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
17,52 KB
  Size
323 px x 148 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0 EC010136
Radiator stop valve
Property Value
Model Tailpiece/Inner thread
Shape Right-angled
Surface protection Nickel-plated
Colour button Other
Operation Thermostatic with button
Automatic flow control
With dust cap
With compression set
Suitable for single pipe system
Suitable for two pipe system
Size of radiator connection 3/8 inch (10)
Shortened construction length
Reverse direction of flow
Size of thermostatic adjustment element M30 x 1.5
Can be preset
Housing material Brass
Kvs value 0.37
Thermostatically prepared
With bent tailpiece
