Dimensions

Dimensions of article

Length Width Height Weight
200 mm 100 mm 70 mm 1 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 210 mm 105 mm 90 mm 1,05 kg

Images

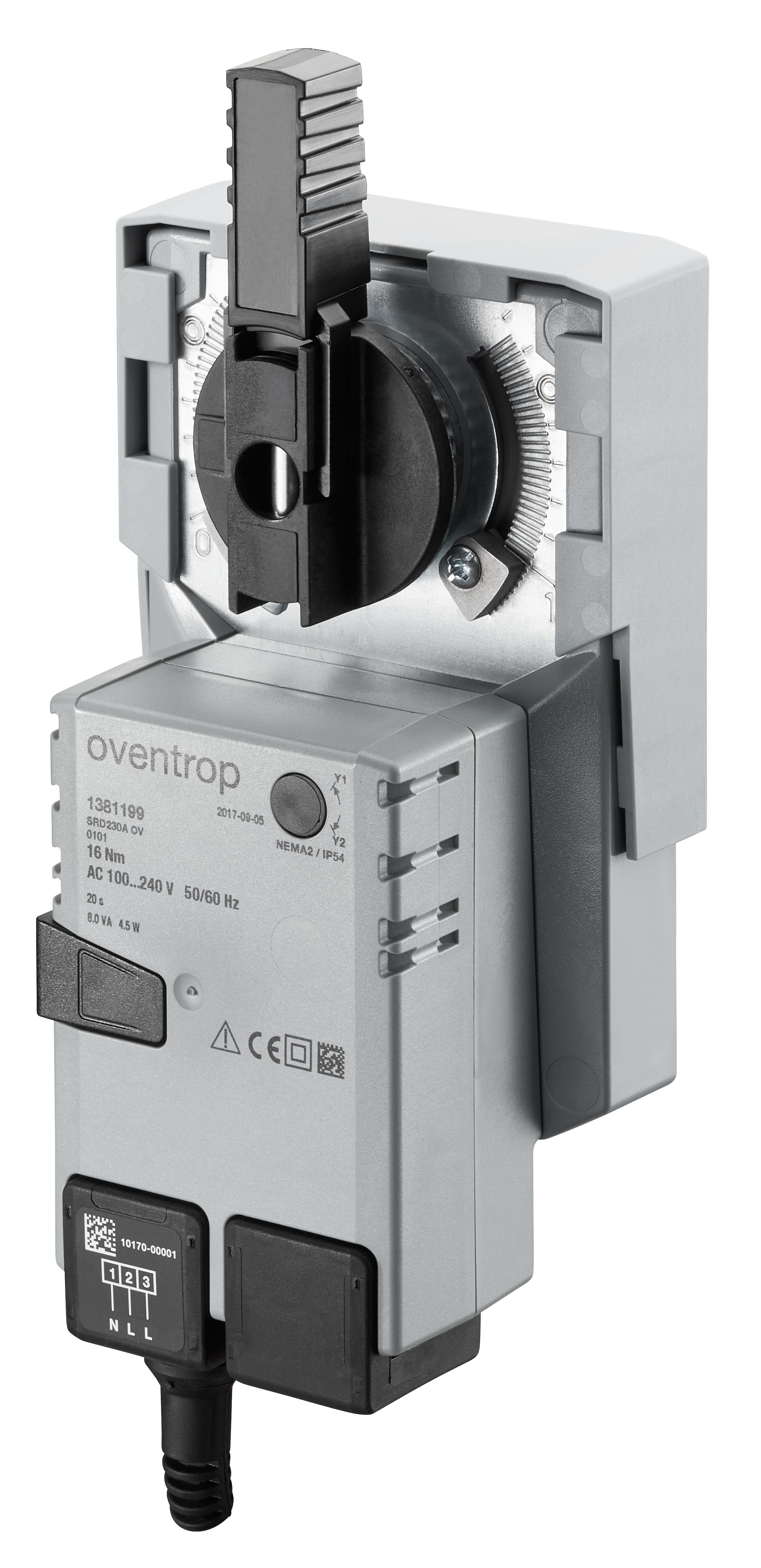

Product images

  File size
865,89 KB
  Size
2528 px x 5211 px
  Properties
  •  Clear product picture
  •  Cutout
Download

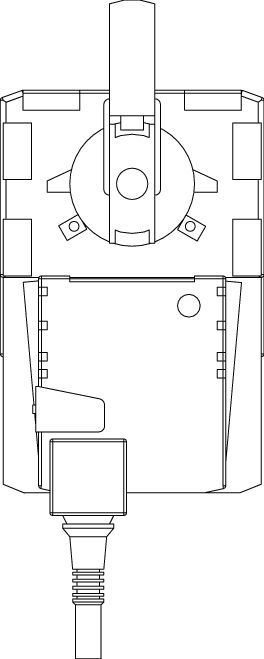

Drawings

  File size
33,39 KB
  Size
264 px x 659 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

ETIM

Klassifizierung
ETIM 7.0 EC011290
Electric servomotor
Property Value
Width 93 mm
Model Rotating
Height 86 mm
Depth 163 mm
Control signal 2-10 V
Material housing Plastic
Ambient temperature -30 - 50
Manual operation
Length of connection cable 1 m
Degree of protection (IP) IP54
Regulation type on/off
Auxiliary contacts optional
Connection to stop valve Other
With mechanical setting indicator
Position reporting system Optional
Operating time 20 s
Torque 16 Nm
Suitable for valve
Max. electric power input 8 VA
Max. angle of rotation 90 °
Transmission With cogwheels
Allowable relative humidity 0 - 95
Supply voltage 230 V AC
End contacts None
