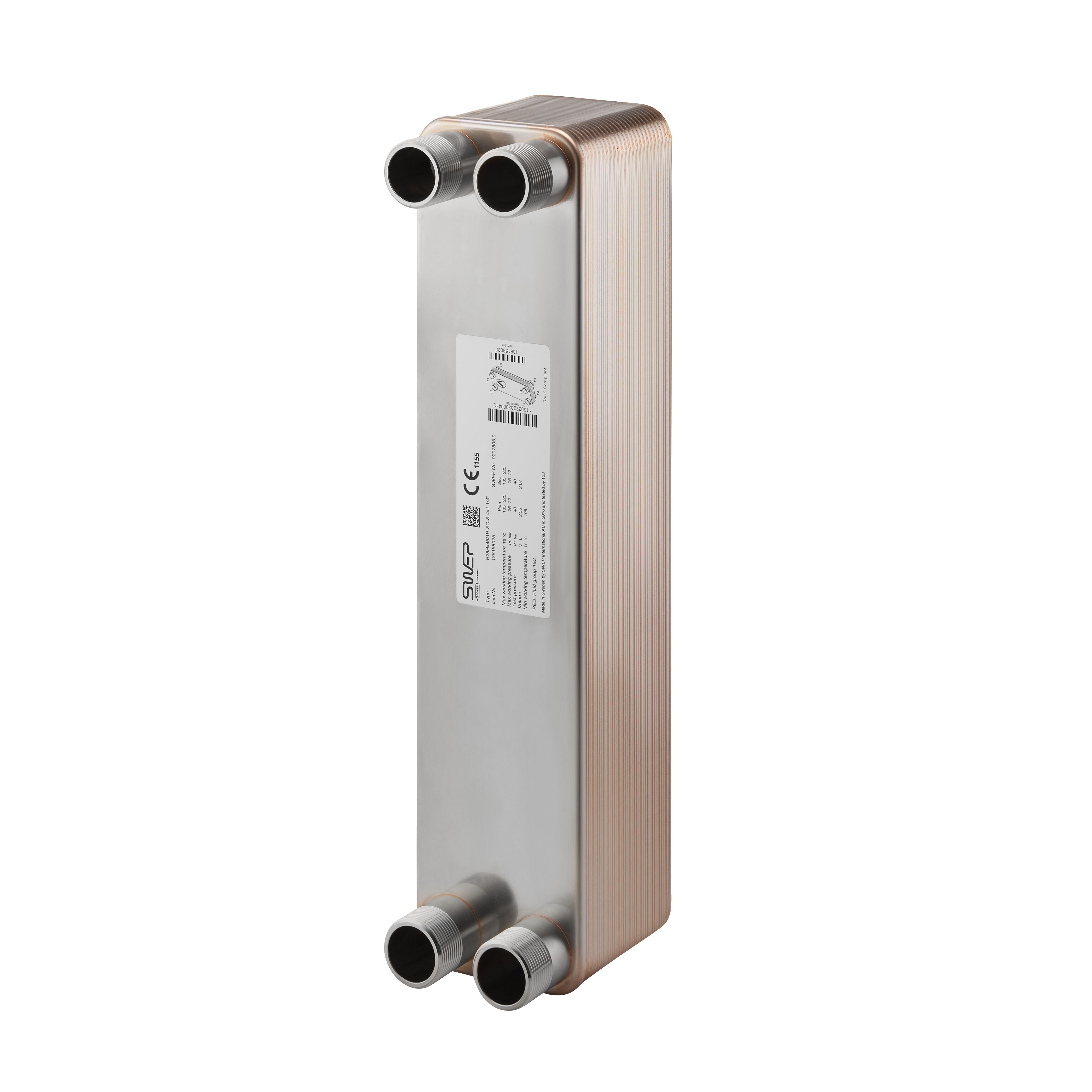

Heat exchanger
for Regumaq X-80 fresh water station, copper brazed


Art.No.: 1381595
EAN: 4026755438895
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Exploded view

Dimensions

Dimensions of article

Length Width Height Weight
525 mm 120 mm 165 mm 10,82 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 535 mm 275 mm 245 mm 11,57 kg

Images

Product images

  File size
491,48 KB
  Size
4556 px x 4556 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
13,84 KB
  Size
113 px x 498 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0 EC010138
CH plate changer
Property Value
Width 119 mm
Model Soldered
Height 526 mm
Depth 161.4 mm
Material Stainless steel
Primary nominal internal diameter 1 1/4 inch (32)
Number of plates 46
Secondary connection External thread
Nominal inner diameter secondary 1 1/4 inch (32)
Centre-to-centre distance of connections 470 mm
Suitable for insulation tray
Primary connection External thread
