High-efficiency pump
for Regumaq X-80 fresh water station, for primary circuit, Grundfos UPML 25-105 180 PWM-C


Art.No.: 1381599
EAN: 4026755443349
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

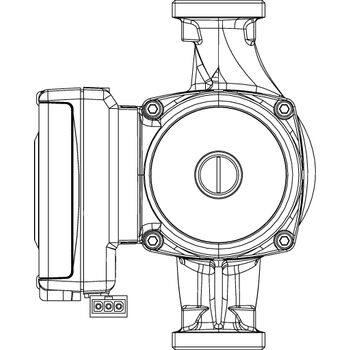

Exploded view

Dimensions

Dimensions of article

Length Width Height Weight
175 mm 180 mm 130 mm 2,71 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 190 mm 195 mm 145 mm 2,98 kg

Images

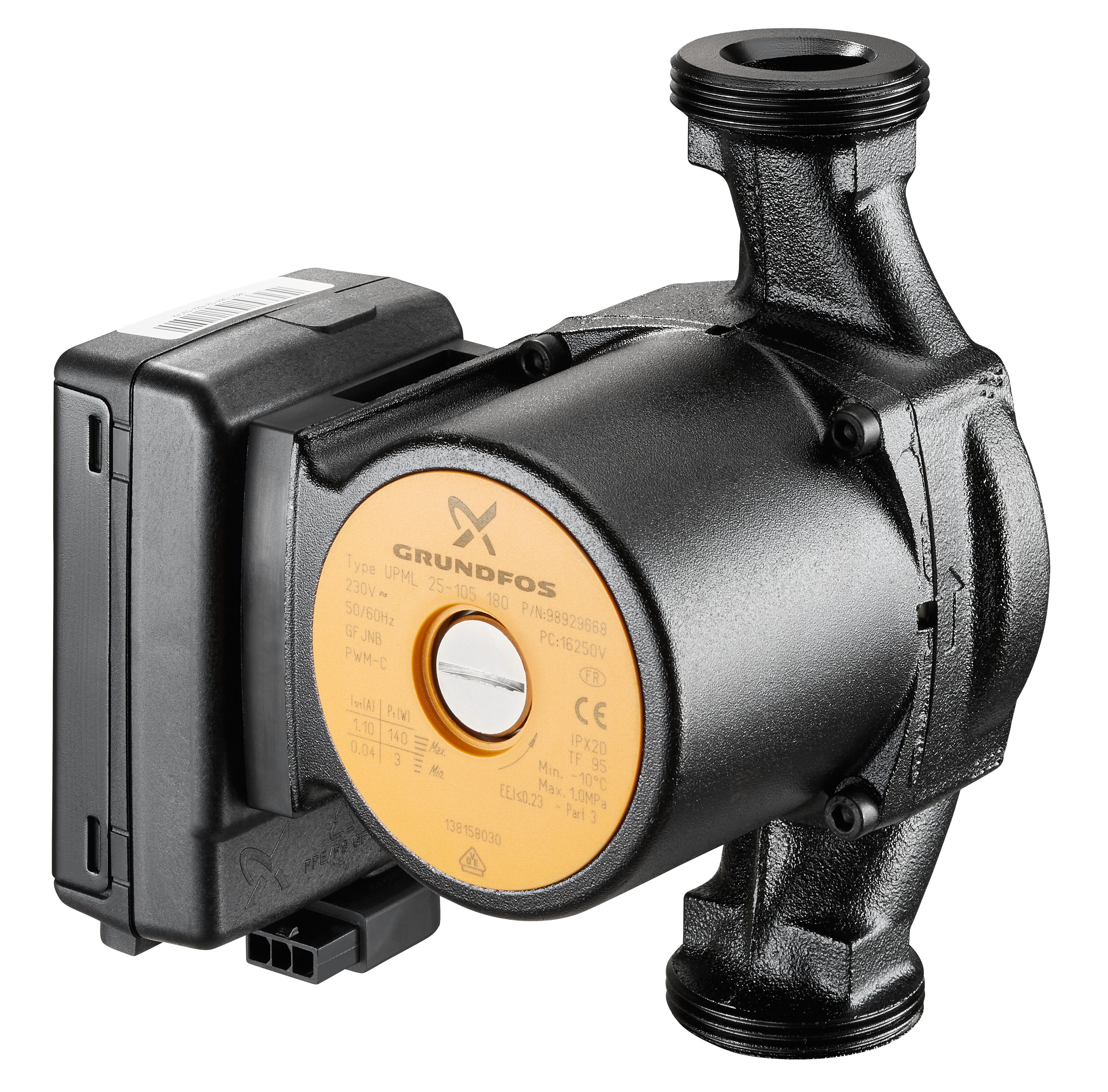

Product images

  File size
1,49 MB
  Size
3404 px x 3356 px
  Properties
  •  Clear product picture
  •  Cutout
Download

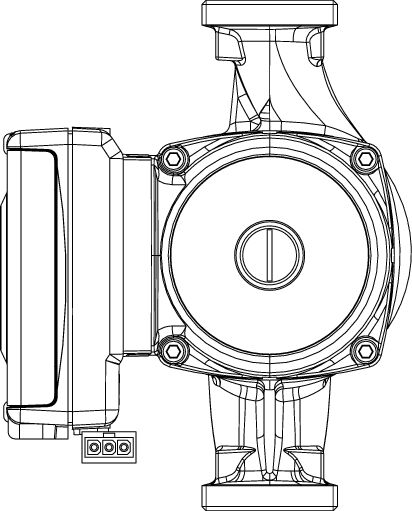

Drawings

  File size
73,23 KB
  Size
412 px x 511 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0 EC010980
Built-in circulation pump
Property Value
Nominal current 1.1 A
Connection Outer thread cylindrical BSPP-G (ISO 228-1)
Built-in length 180 mm
Frequency 50 Hz
Degree of protection (IP) IPX2
Motor power input (P1) per motor 0.14 W
Article compression class PN 10
Max. medium temperature (continuous) 95 °C
Min. medium temperature (continuous) -10 °C
Connection voltage 1 x 230 V
Housing material Cast iron
Discharge head at nom. flow rate 10.5 kPa
Double pump
Nominal inner diameter DN 25
Flange shape oval
Connecting measure pump housing 1 1/2 inch
