Vacuum gauge
with connection fitting, G ⅜ collar nut x G ⅜ with inner taper


Art.No.: 2120585
EAN: 4026755271263
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Is accessory of

Heating oil filter for two pipe systems "Oilpur Z A" G ⅜ F x G ⅜ F, stainless steel 100-150 µm, isolating valve
Item no. 2120103
Heating oil filter for two pipe systems "Oilpur Z A" G ½ F x G ½ F, stainless steel 100-150 µm, isolating valve
Item no. 2120104
Heating oil filter for two pipe systems "Oilpur Z A" G ⅜ F x G ⅜ F, Siku 50-75 µm, isolating valve
Item no. 2120261
Heating oil filter for two pipe systems "Oilpur Z A" G ⅜ F x G ⅜ M, stainless steel 100-150 µm, isolating valve
Item no. 2120403
Heating oil filter for two pipe systems "Oilpur Z A"
Item no. 2120561
Heating oil filter for one pipe systems with return flow feed "Oilpur E A R" G ⅜ F x G ⅜ F, stainless steel 100-150 µm, isolating valve
Item no. 2122103
Heating oil filter for one pipe systems with return flow feed "Oilpur E A R" G ⅜ F x G ⅜ F, Siku 50-75 µm, isolating valve
Item no. 2122261
Heating oil filter for one pipe systems with return flow feed "Oilpur E A R"
Item no. 2122262
Heating oil filter for one pipe systems with return flow feed "Oilpur E A R" G ⅜ F x G ⅜ M, stainless steel 100-150 µm, isolating valve
Item no. 2122403
Heating oil filter for one pipe systems with return flow feed "Oilpur E A R" G ⅜ F x G ⅜ M, Siku 50-75 µm, isolating valve
Item no. 2122561
Heating oil filter for one pipe systems "Oilpur E A" G ⅜ F x G ⅜ F, stainless steel 100-150 µm, isolating valve
Item no. 2123103
Heating oil filter for one pipe systems "Oilpur E A"
Item no. 2123104
Heating oil filter for one pipe systems "Oilpur E A" G ⅜ F x G ⅜ F, Siku 50-75 µm, isolating valve
Item no. 2123261
Heating oil filter for one pipe systems "Oilpur E A"
Item no. 2123561
Heating oil filter/heating oil deaerator "Toc-Duo-3"
Item no. 2142700
Heating oil filter/heating oil deaerator "Toc-Duo-3"
Item no. 2142732
Heating oil filter/heating oil deaerator "Toc-Duo-3"
Item no. 2142735
Heating oil filter/heating oil deaerator "Toc-Duo-3" G ⅜ F x G ⅜ M, Siku, 25-40 µm, with vacuum gauge
Item no. 2142762
Heating oil deaerator "Toc-Uno-A" G ¼ F x G ¼ F, including flexible hose
Item no. 2142900
Heating oil deaerator "Toc-Uno-A" G ¼ F x G ¼ F, without accessories
Item no. 2142901
Heating oil deaerator "Toc-Uno-A" G ¼ F x G ⅜ M, including flexible hose
Item no. 2142951
Heating oil filter/heating oil deaerator "Toc-Duo-3"
Item no. 2152754

Dimensions

Dimensions of article

Length Width Height Weight
74 mm 50 mm 42 mm 0,15 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 95 mm 90 mm 95 mm 0,18 kg
Carton 10 600 mm 200 mm 100 mm 2,17 kg

Images

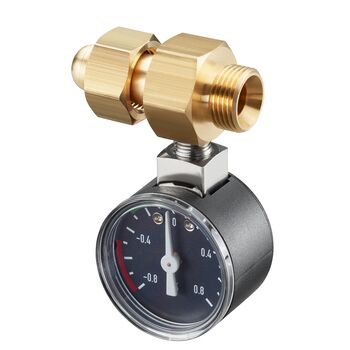

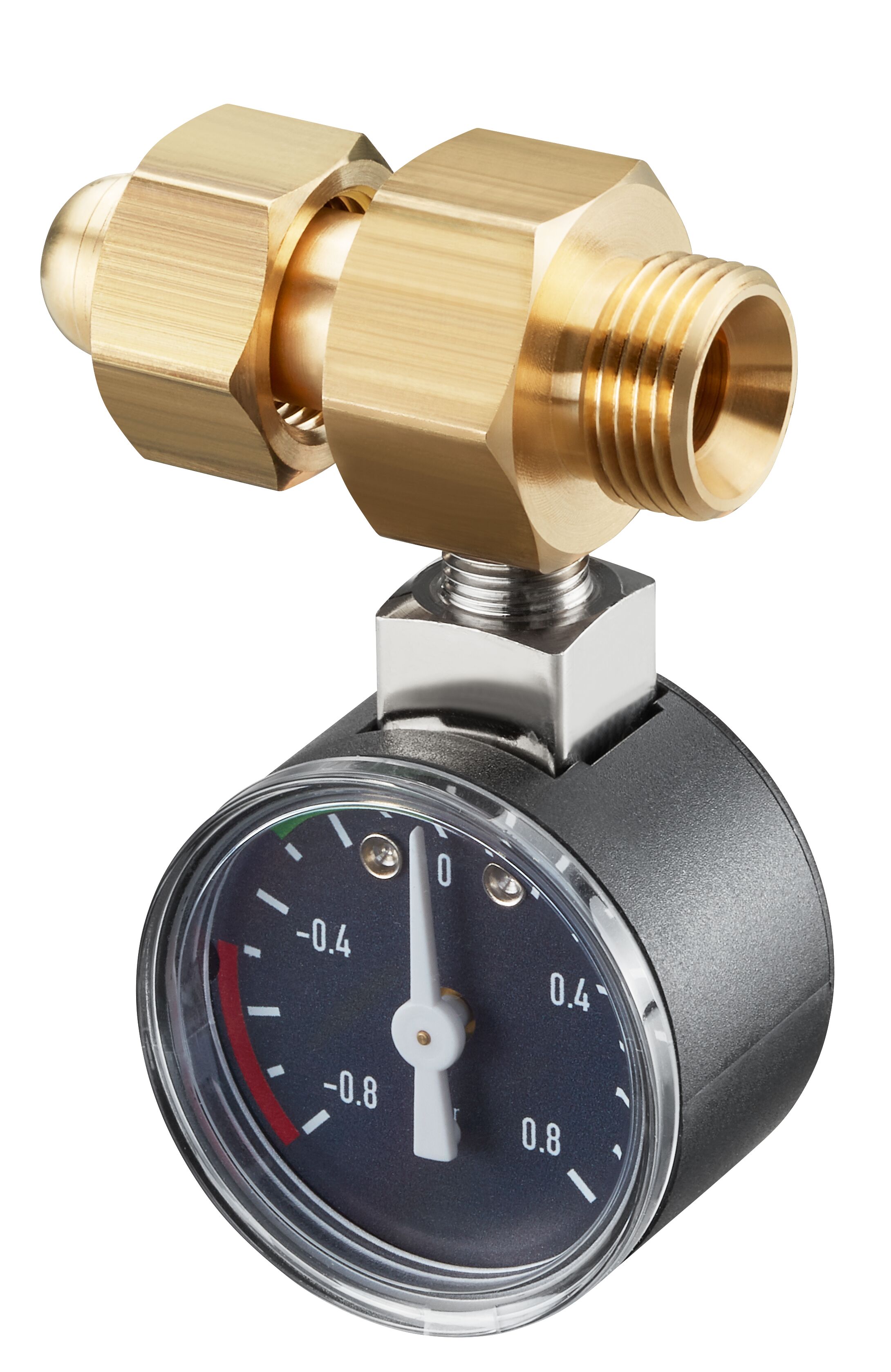

Product images

  File size
534,71 KB
  Size
2180 px x 3355 px
  Properties
  •  Clear product picture
  •  Cutout
Download

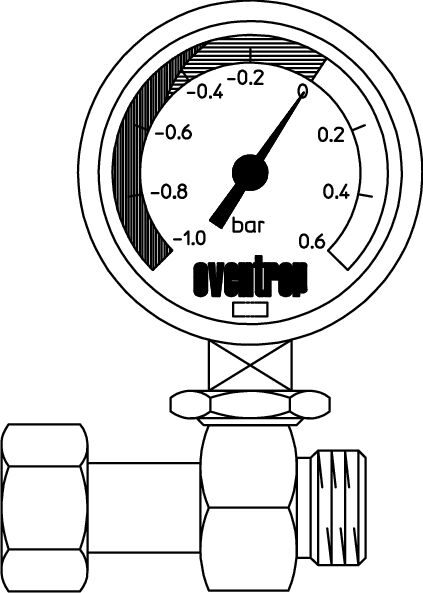

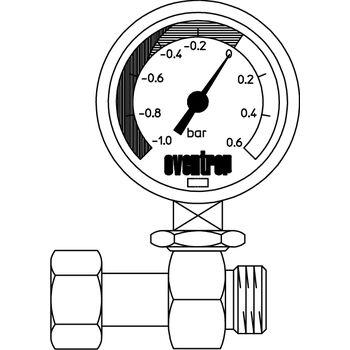

Drawings

  File size
38,39 KB
  Size
423 px x 593 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Manual

  Name Size
L_212028581.pdf 1,79 MB

Manufacturer declaration

  Name Size
Vacuum gauge Manufacturer Declaration 262,59 KB

ETIM

Klassifizierung
ETIM 7.0 EC010262
Pressure gauge valve
Property Value
Connection 1 Inner thread cylindrical BSPP-G (ISO 228-1)
Connection size 3/8 inch (10)
Incl. gland nut and soldering pipe, connection 1
With tension socket, connection 2
Housing material Brass
