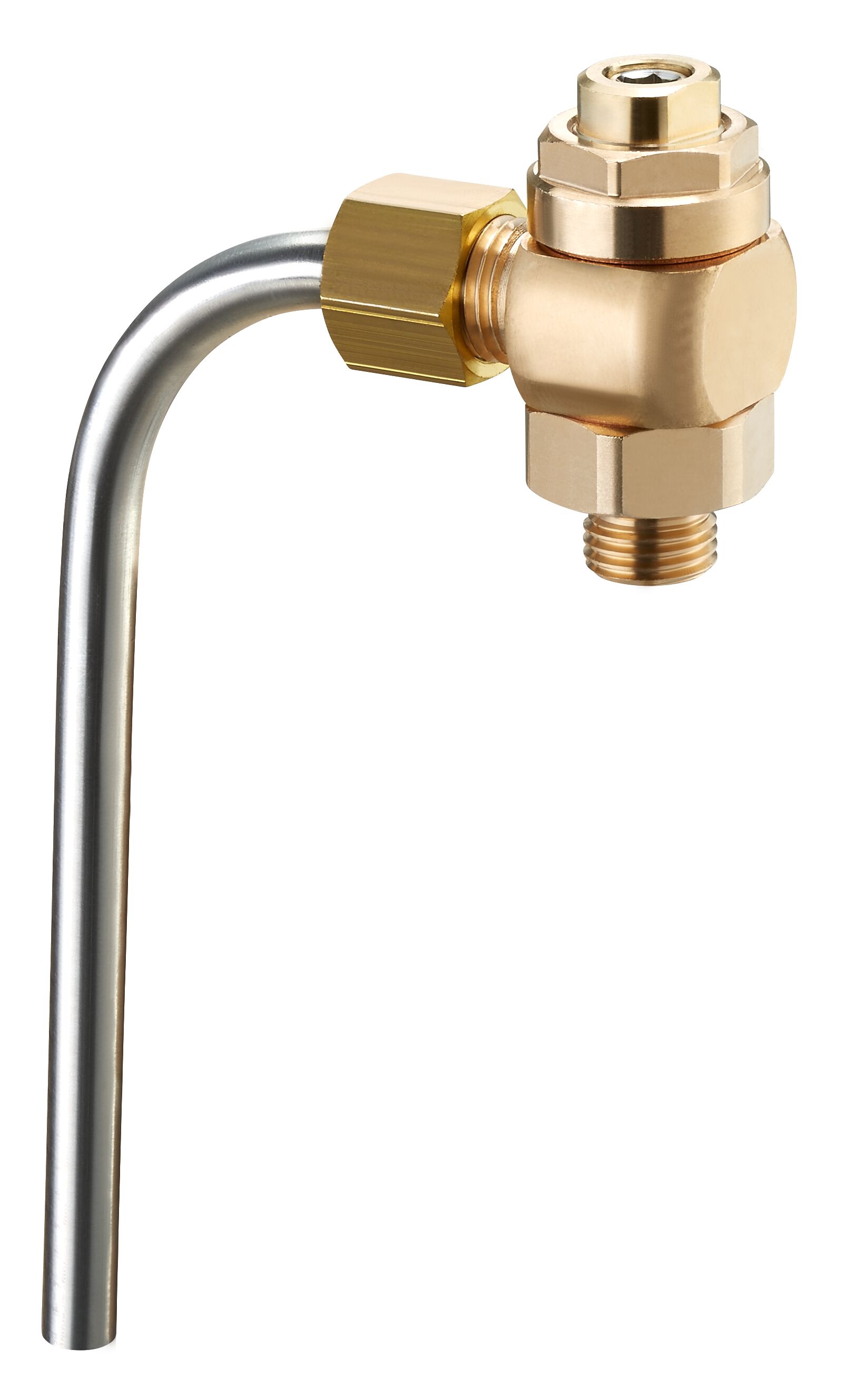

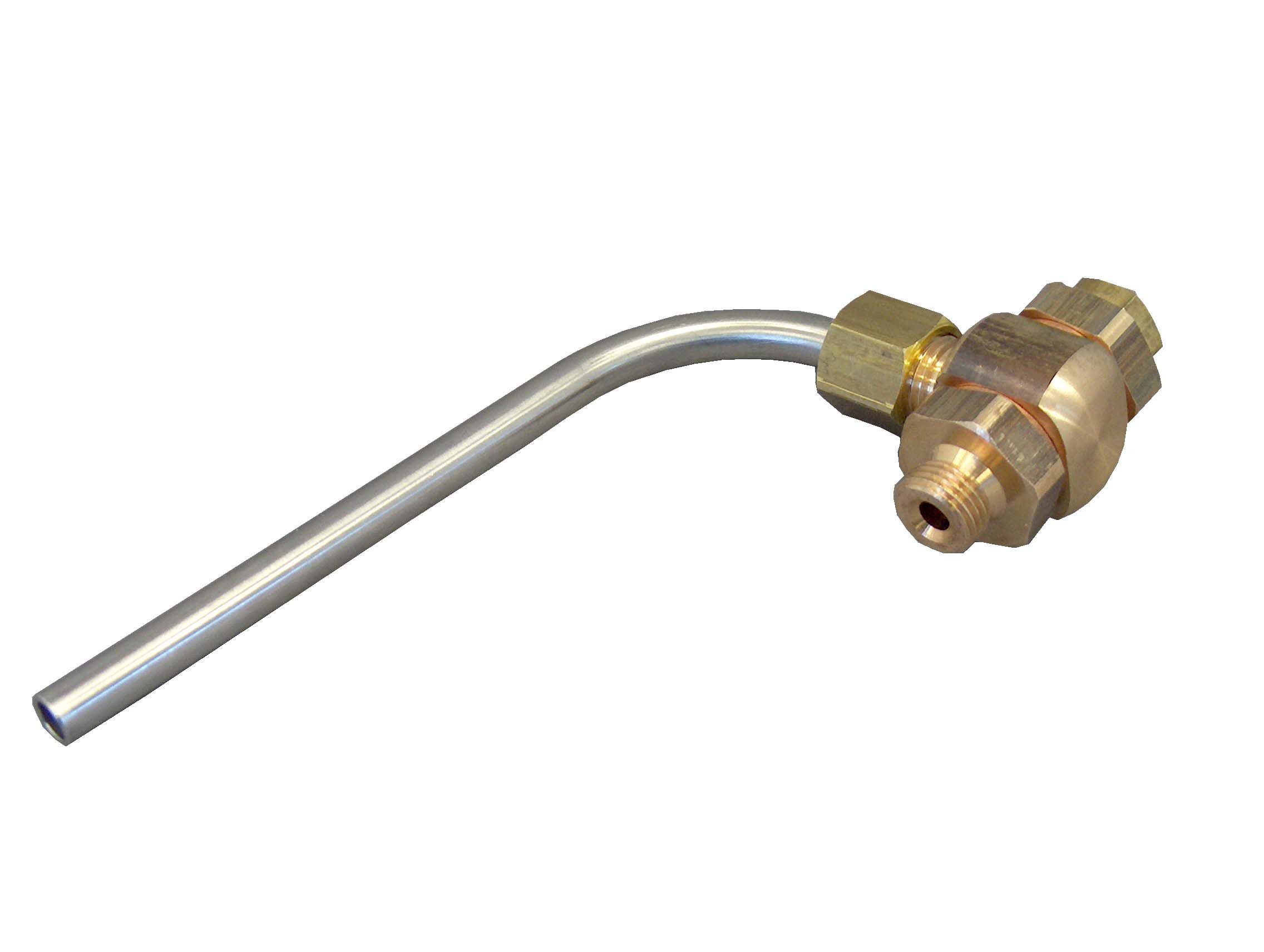

Aquastrom P Water sampling valve
DN 8, PN 10, flame resistant, bronze/stainless steel, G ¼


“Aquastrom P” Water sampling valve

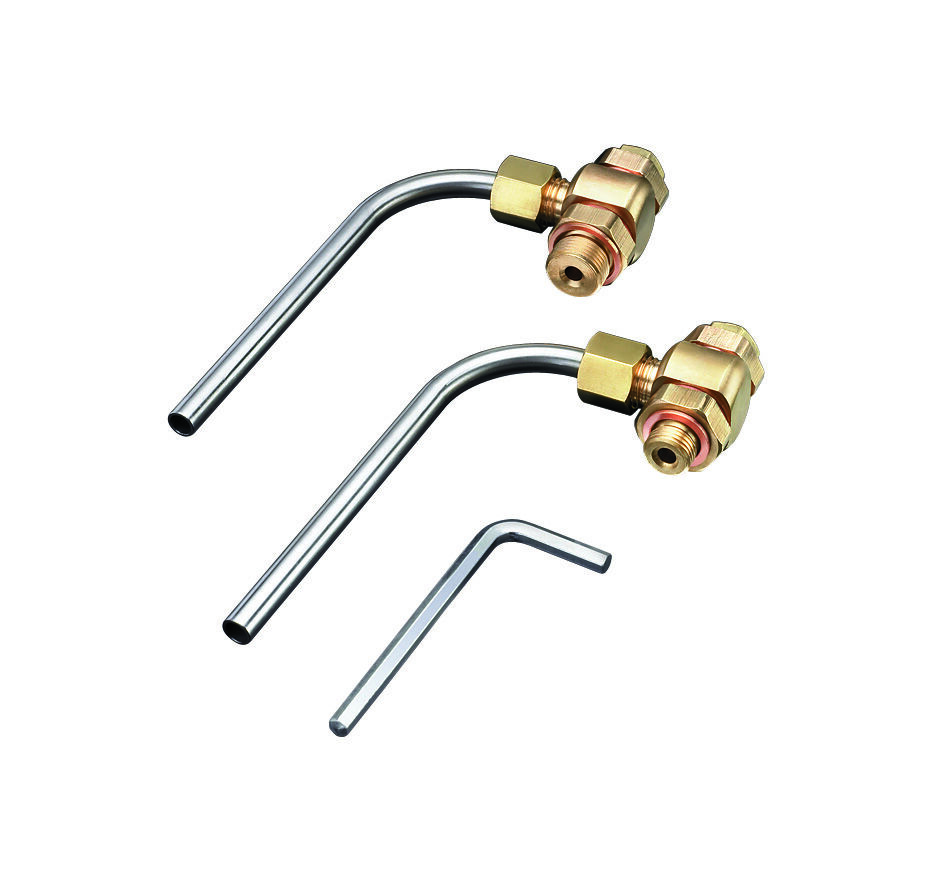

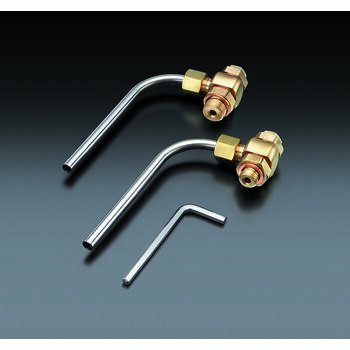

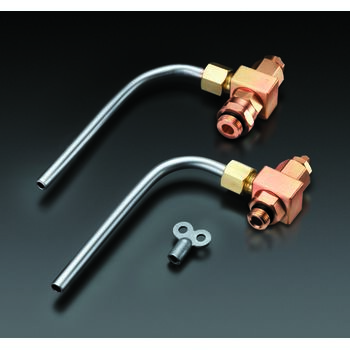

Flame resistant water sampling valve for hygienic-microbiologic tests according to DVGW W551 and TrinwV (decree for potable water). Application: Potable water installations PN 16 for circulation pipes according to DVGW work sheets W551 and W553. Valve body and stem made of bronze according to DIN EN 1982 and DIN 50930.6. Metal to metal sealing according to VDI 6023, delivery elbow made of stainless steel, loosely connected and thus allowing any position. Operation by using the Allen key supplied with the valve.
Art.No.: 4209102
EAN: 4026755309959
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Is accessory of

Regumaq X-25 fresh water station
Item no. 1381125
Regumaq X-45 Fresh water station Heat exchanger copper brazed
Item no. 1381140
Regumaq X-45 fresh water station Heat exchanger, copper brazed, with Sealix® protective layer
Item no. 1381142
Regumaq X-25 fresh water station
Item no. 1381127
Regumaq X-80 Fresh water station Heat exchanger copper brazed
Item no. 1381580
Regumaq X-80 Fresh water station Heat exchanger copper brazed, with Sealix® protective layer
Item no. 1381582
Aquastrom C Static circulation valve with external thread DN 15, G ¾, with thermal insulation and thermometer
Item no. 4207104
Aquastrom C Static circulation valve with external thread DN 20, G 1, with thermal insulation and thermometer
Item no. 4207106
Aquastrom C Static circulation valve with external thread DN 25, G 1 ¼, with thermal insulation and thermometer
Item no. 4207108
Aquastrom C Static circulation valve with external thread DN 32, G 1 ½, with thermal insulation and thermometer
Item no. 4207110
Aquastrom C Static circulation valve with external thread and water sampling valve DN 15, G ¾, with thermal insulation and thermometer
Item no. 4207504
Aquastrom C Static circulation valve with external thread and water sampling valve DN 20, G 1, with thermal insulation and thermometer
Item no. 4207506
Aquastrom C Static circulation valve with external thread and water sampling valve DN 25, G 1 ¼, with thermal insulation and thermometer
Item no. 4207508
Aquastrom C Static circulation valve with external thread and water sampling valve DN 32, G 1 ½, with thermal insulation and thermometer
Item no. 4207510
Aquastom C Static circulation valve with internal thread DN 15, Rp ½, with thermal insulation and thermometer
Item no. 4208104
Aquastom C Static circulation valve with internal thread DN 20, Rp ¾, with thermal insulation and thermometer
Item no. 4208106
Aquastom C Static circulation valve with internal thread DN 25, Rp 1, with thermal insulation and thermometer
Item no. 4208108
Aquastom C Static circulation valve with internal thread DN 32, Rp 1 ¼, with thermal insulation and thermometer
Item no. 4208110
Aquastom C Static circulation valve with internal thread, without accessories DN 15, Rp ½, without thermal insulation and thermometer
Item no. 4208152
Aquastom C Static circulation valve with internal thread, without accessories DN 20, Rp ¾, without thermal insulation and thermometer
Item no. 4208154
Aquastom C Static circulation valve with internal thread, without accessories DN 25, Rp 1, without thermal insulation and thermometer
Item no. 4208156
Aquastom C Static circulation valve with internal thread, without accessories DN 32, Rp 1 ¼, without thermal insulation and thermometer
Item no. 4208158

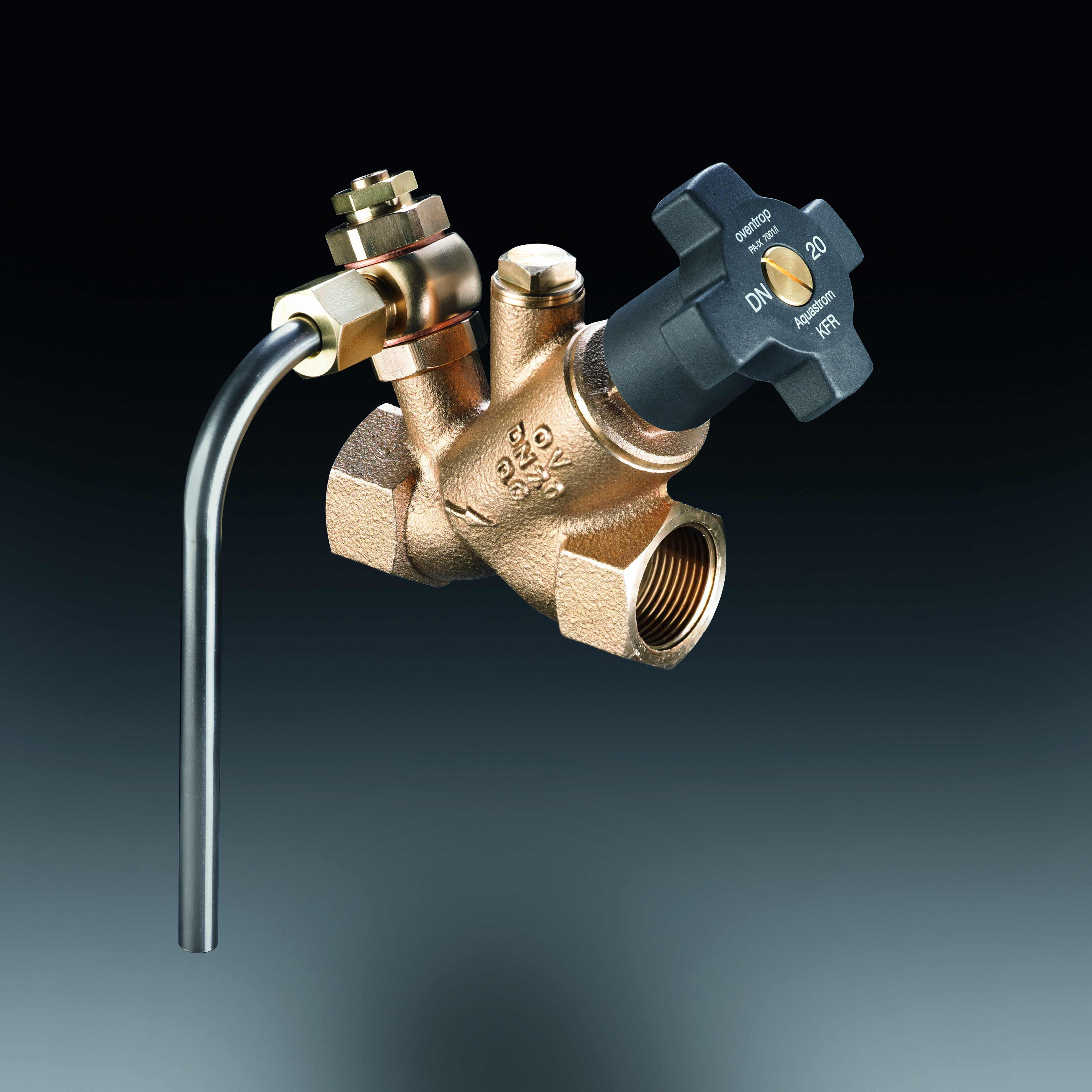

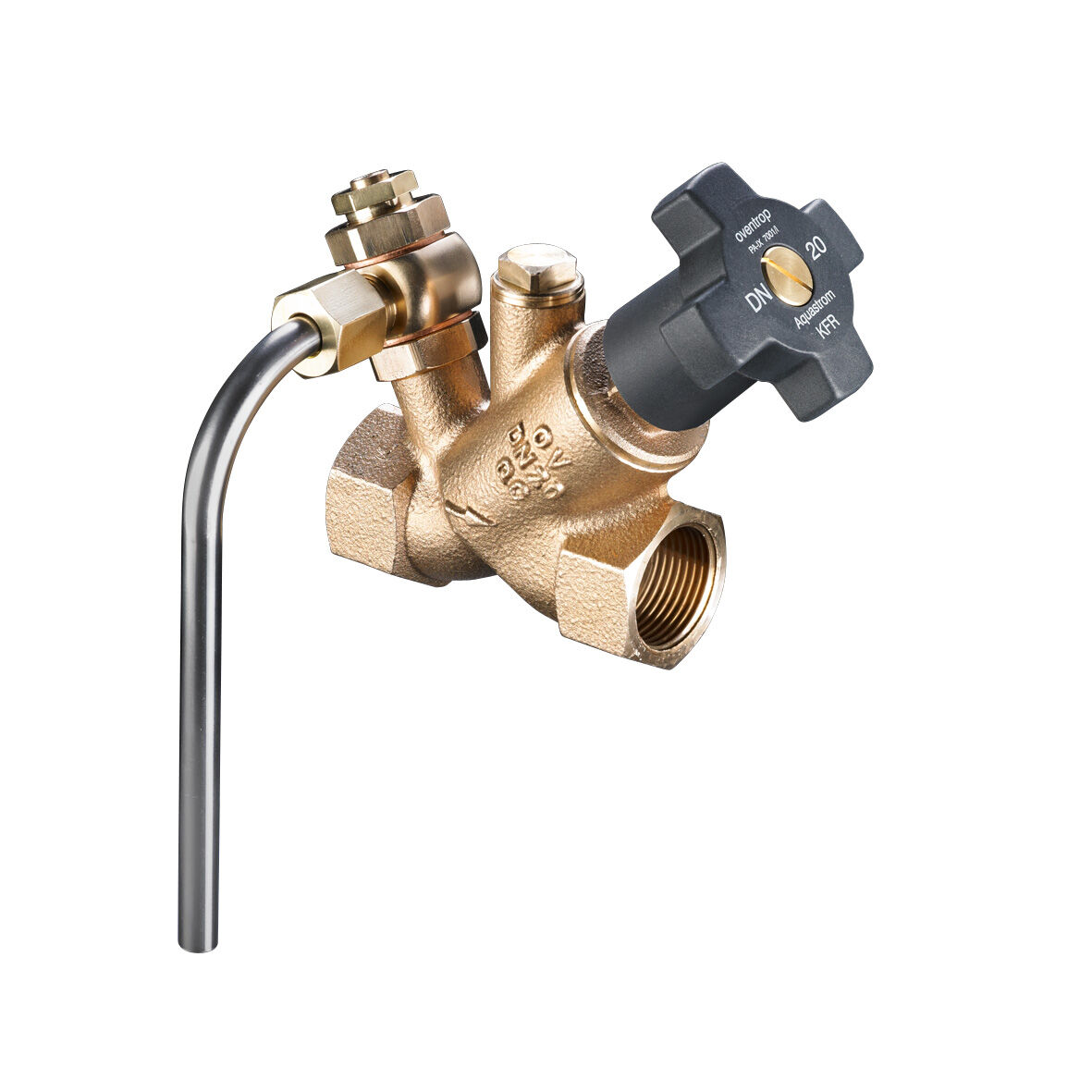

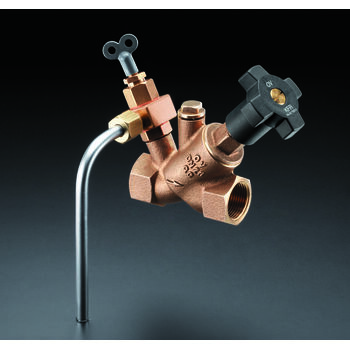

Aquastrom C Static circulation valve with internal thread and water sampling valve DN 15, Rp ½, with thermal insulation and thermometer
Item no. 4208504
Aquastrom C Static circulation valve with internal thread and water sampling valve DN 20, Rp ¾, with thermal insulation and thermometer
Item no. 4208506
Aquastrom C Static circulation valve with internal thread and water sampling valve DN 25, Rp 1, with thermal insulation and thermometer
Item no. 4208508
Aquastrom C Static circulation valve with internal thread and water sampling valve DN 32, Rp 1 ¼, with thermal insulation and thermometer
Item no. 4208510

Dimensions

Dimensions of article

Length Width Height Weight
124 mm 50 mm 27 mm 0,21 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 153 mm 65 mm 34 mm 0,21 kg
Carton 10 183 mm 180 mm 151 mm 2,26 kg
Europallet 1200 1200 mm 800 mm 876 mm 273 kg

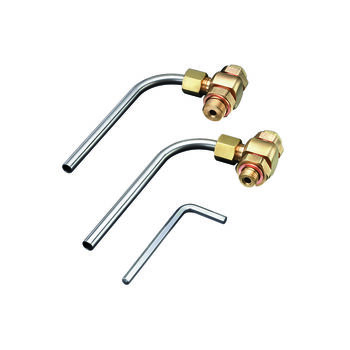

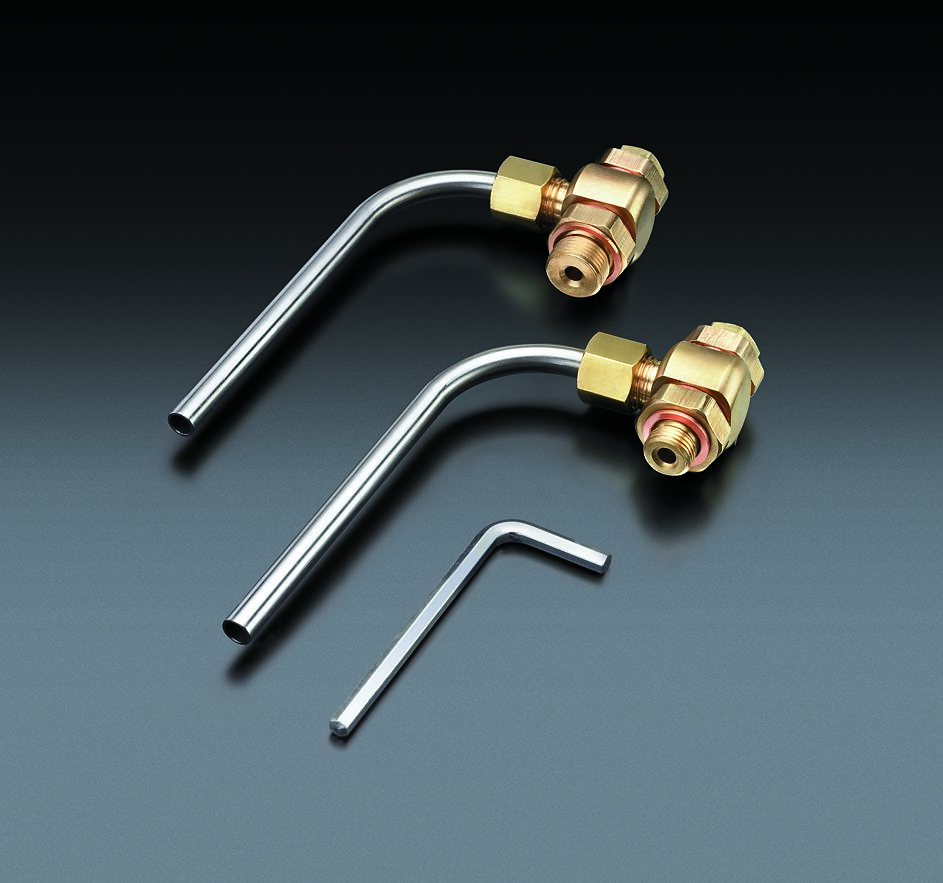

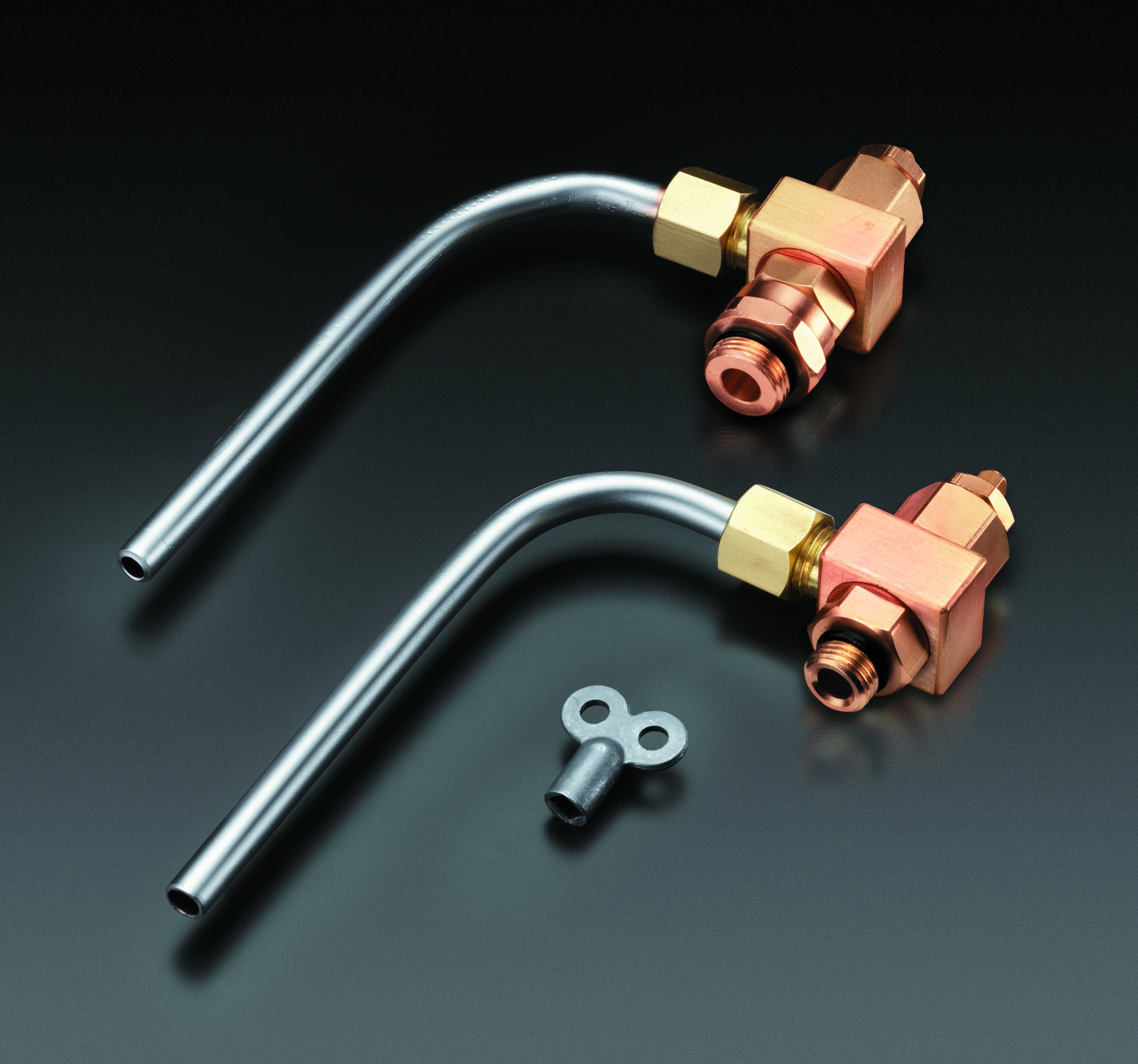

Images

Product images

  File size
145,5 KB
  Size
1648 px x 2656 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
77,28 KB
  Size
2272 px x 1712 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,31 MB
  Size
3716 px x 3716 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
777,28 KB
  Size
2087 px x 1972 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
77,47 KB
  Size
943 px x 883 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
101,95 KB
  Size
1181 px x 1181 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
874,61 KB
  Size
2183 px x 2042 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
92,75 KB
  Size
943 px x 883 px
  Properties
  •  Clear product picture
  •  Cutout
Download

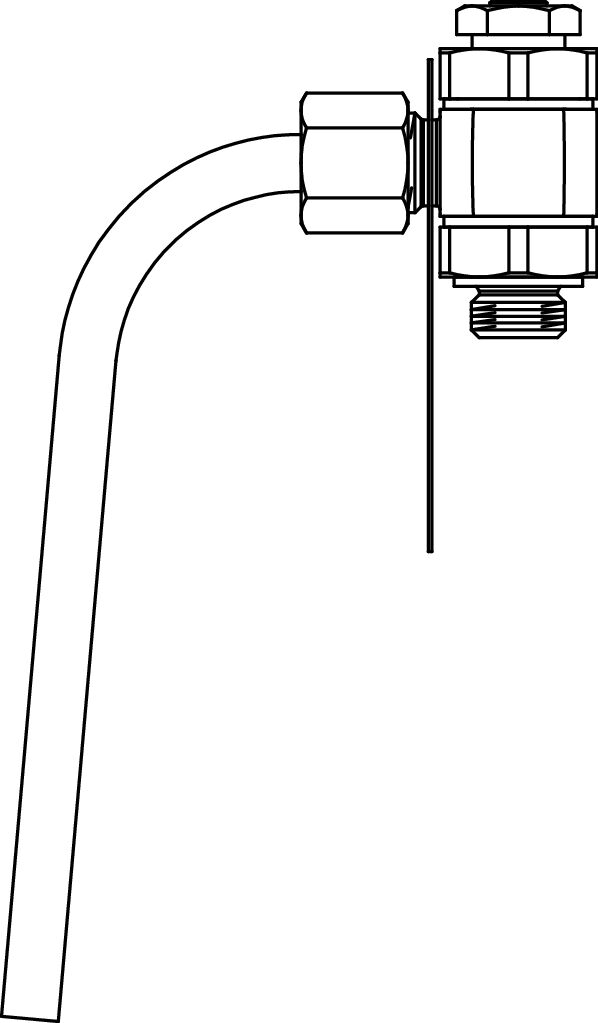

Drawings

  File size
53,68 KB
  Size
598 px x 1023 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
17,06 KB
  Size
425 px x 425 px
  Properties
  •  Clear product picture
  •  Cutout
Download

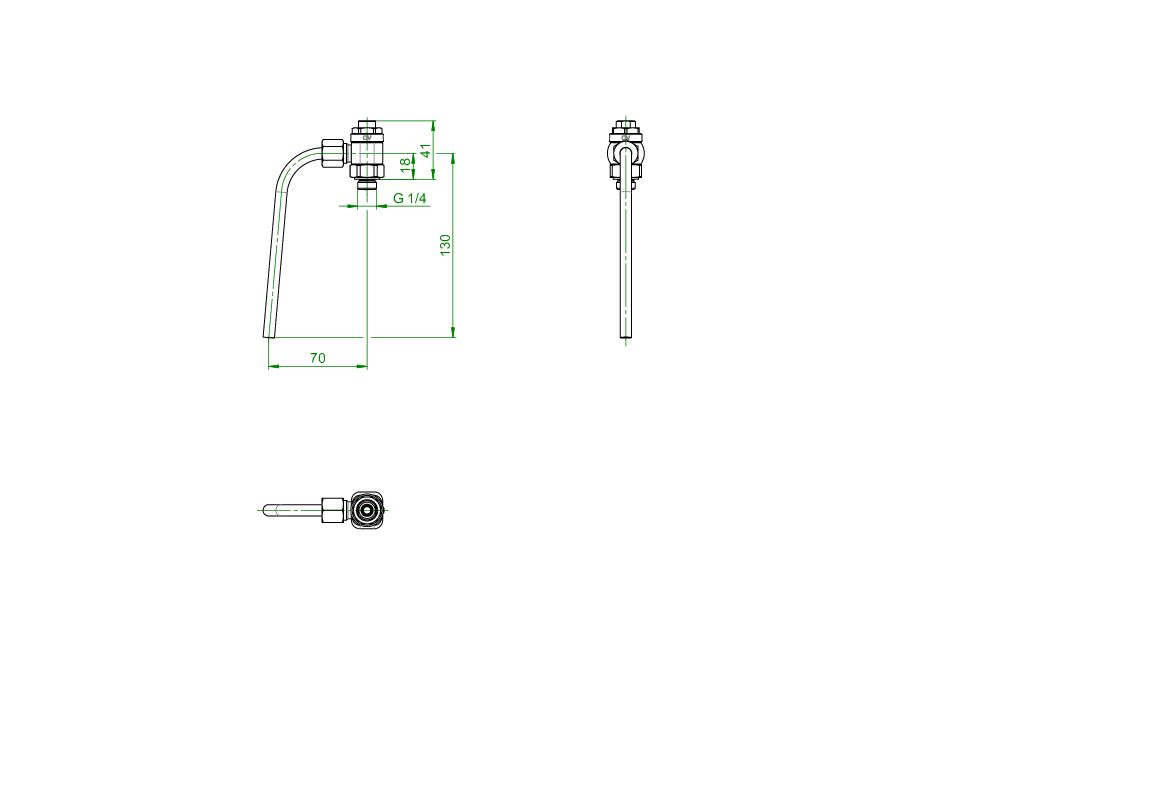

Dimensional drawings

  File size
28,2 KB
  Size
1155 px x 809 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Manual

  Name Size

365,31 KB

Brochure

  Name Size
more languages 735,48 KB
more languages 12,54 MB
more languages 3,37 MB
more languages 4,87 MB

2,77 MB

74,17 MB

Certificate

System illustration

“Aquastrom T plus” for circulation pipes with thermal disinfection
A: Potable water cold
B: Potable water hot
C: Potable water circulation pipe
D: System with storey branches
E: Total circulation without storey branches
F: Furthest point of network

ETIM

Klassifizierung
ETIM 7.0 EC010985
Drain valve (radiator and tap water)
Property Value
Surface protection Untreated
Operation Key
Max. medium temperature (continuous) 90 °C
KIWA certified
With operating key
Suitable for tap water
Suitable for central heating water
Size of threaded connection 1/4 inch (8)
Rotating spout
Housing material Bronze
