Aquastrom P Water sampling valve for mounting on angle valves
DN 10, PN 10, flammable, dezincification resistant brass/stainless steel, chrome plated

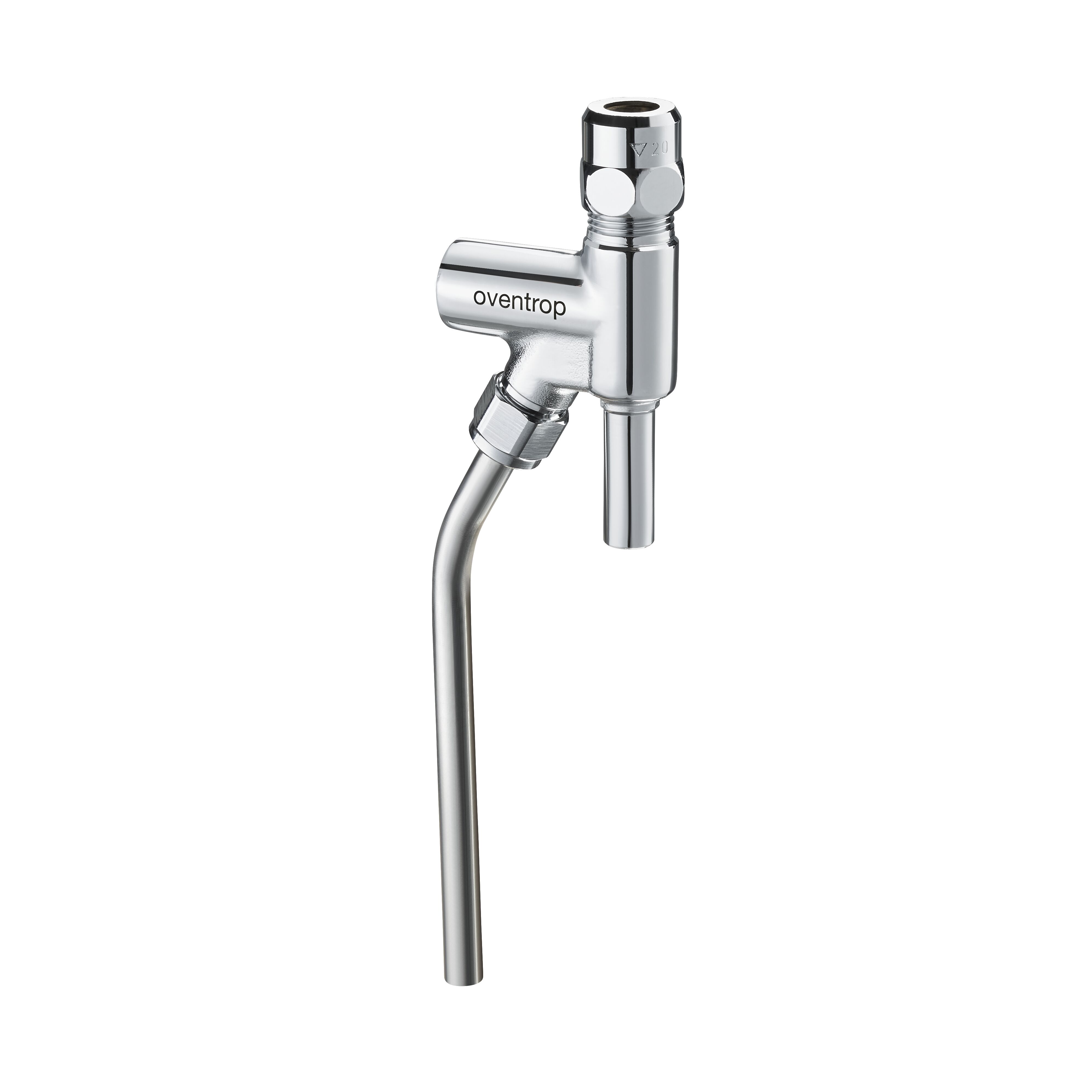

Aquastrom P water sampling valve

Flammable water sampling valve for mounting on angle valves for for hygienic-microbiological testing according to DIN EN ISO 19458, DVGW W 551, German Potable Water Ordinance (TrinkwV) and VDI/DVGW 6023.

Valve body made of dezincification resistant brass according to DIN 50930-6, chrome-plated, spindle made of stainless steel, metal to metal sealing, with additional seal made of heat-resistant PTFE, with push-in backflow preventer according to DIN EN 13959.

Operation with enclosed Allen key.

Inlet: Pipe 10 x 1.25
Outlet: G 3/8 ET with cone compression fitting with lenght compensation
Art.No.: 4209202
EAN: 4026755412963
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Is accessory of

Aquastrom C Static circulation valve with external thread DN 15, G ¾, with thermal insulation and thermometer
Item no. 4207104
Aquastrom C Static circulation valve with external thread DN 20, G 1, with thermal insulation and thermometer
Item no. 4207106
Aquastrom C Static circulation valve with external thread DN 25, G 1 ¼, with thermal insulation and thermometer
Item no. 4207108
Aquastrom C Static circulation valve with external thread DN 32, G 1 ½, with thermal insulation and thermometer
Item no. 4207110
Aquastom C Static circulation valve with internal thread DN 15, Rp ½, with thermal insulation and thermometer
Item no. 4208104
Aquastom C Static circulation valve with internal thread DN 20, Rp ¾, with thermal insulation and thermometer
Item no. 4208106
Aquastom C Static circulation valve with internal thread DN 25, Rp 1, with thermal insulation and thermometer
Item no. 4208108
Aquastom C Static circulation valve with internal thread DN 32, Rp 1 ¼, with thermal insulation and thermometer
Item no. 4208110
Aquastom C Static circulation valve with internal thread, without accessories DN 15, Rp ½, without thermal insulation and thermometer
Item no. 4208152
Aquastom C Static circulation valve with internal thread, without accessories DN 20, Rp ¾, without thermal insulation and thermometer
Item no. 4208154
Aquastom C Static circulation valve with internal thread, without accessories DN 25, Rp 1, without thermal insulation and thermometer
Item no. 4208156
Aquastom C Static circulation valve with internal thread, without accessories DN 32, Rp 1 ¼, without thermal insulation and thermometer
Item no. 4208158

Dimensions

Dimensions of article

Length Width Height Weight
90 mm 85 mm 83 mm 0,25 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 95 mm 90 mm 95 mm 0,27 kg

Images

Product images

  File size
232,32 KB
  Size
3987 px x 3987 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Brochure

  Name Size
more languages 735,48 KB
more languages 3,37 MB
more languages 4,87 MB
more languages 12,54 MB

ETIM

Klassifizierung
ETIM 7.0
Property Value
Surface protection Chromium-plated
Operation Key
Max. medium temperature (continuous) 90 °C
KIWA certified
With operating key
Suitable for tap water
Suitable for central heating water
Size of threaded connection 3/8 inch (10)
Rotating spout
Housing material Brass
