Mounting bridge


Art.No.: 1016453
EAN: 4026755499308
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
81 mm 27 mm 28 mm 0,11 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 80 mm 30 mm 30 mm 0,13 kg
Carton 10 148 mm 145 mm 68 mm 1,38 kg
Carton 100 320 mm 225 mm 125 mm 13,81 kg

Images

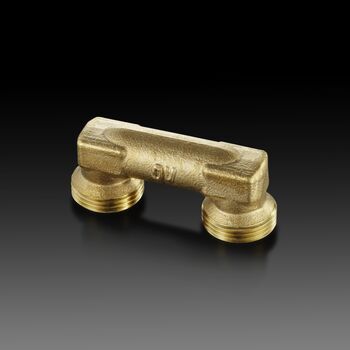

Product images

  File size
380,84 KB
  Size
2532 px x 1572 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
471,49 KB
  Size
3600 px x 3600 px
  Properties
  •  Clear product picture
  •  Cutout
Download

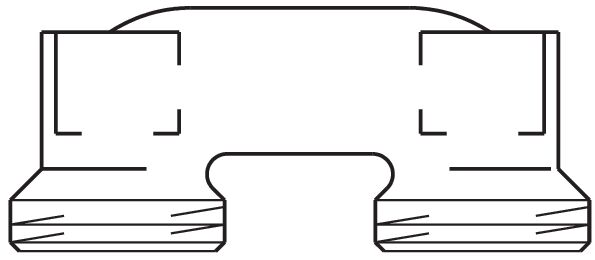

Drawings

  File size
12,76 KB
  Size
595 px x 260 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
6,63 KB
  Size
425 px x 425 px
  Properties
  •  Clear product picture
  •  Cutout
Download

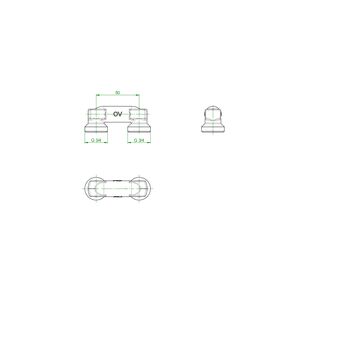

Dimensional drawings

  File size
20,27 KB
  Size
1155 px x 809 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Lockable
Surface protection Nickel-plated
Material Brass
Adjustable
Suitable for single pipe system
Suitable for two pipe system
Centre distance, supply / return 50
Connection direction towards wall (square)
Connection direction towards floor (straight)
Size of pipe connection 3/4 inch face-sealing
Suitable for filling/drain tap
Four-way supply/return connection
Size of radiator connection Other
Self-controlling
Thermostatically prepared
