Name: Regucor WHS Energy storage centre type 500, heat exchanger copper brazed
Brand: OVENTROP
SKU: 1383645

Description Dimensions Images Documents ETIM

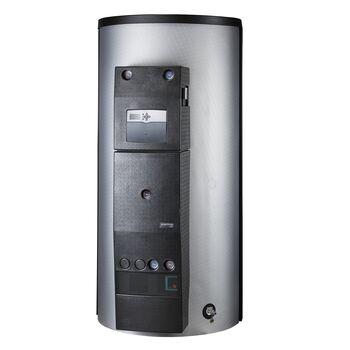

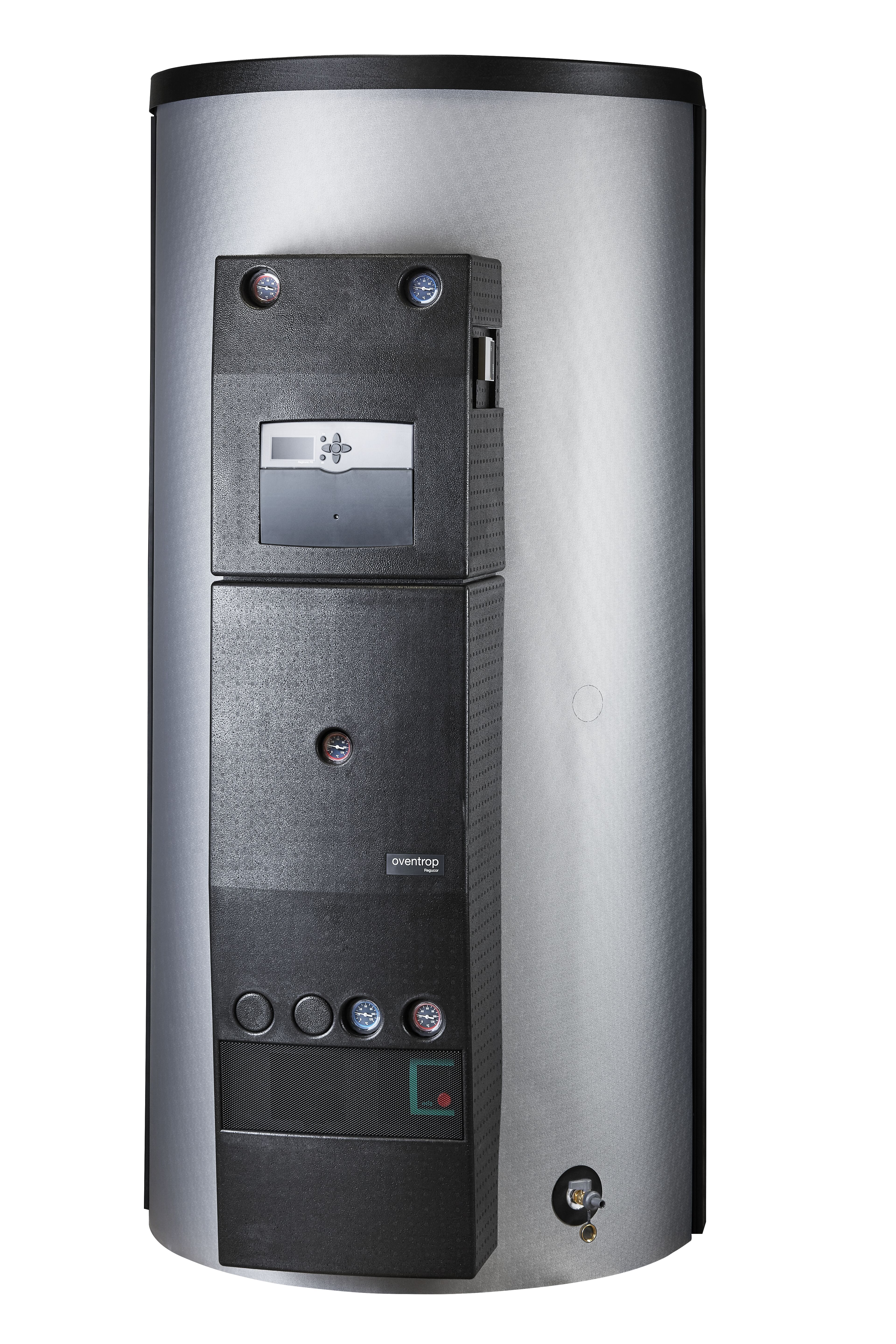

Regucor WHS Energy storage centre
type 500, heat exchanger copper brazed

Regucor WHS energy storage centre

Modular system for the solar-supported supply of heating and hot water to detached and semi-detached houses. The storage cylinder and the add-on groups are functionally and thermo-dynamically matched to each other. With integrated piping and ready-to-plus-in wiring. For combination with conventional (e.g. gas/oil) and regenerative heat generators (e.g. heat pump/solid fuel) in existing and new buildings.

Consisting of:

Solar buffer storage cylinder:
System storage cylinder type 500
Nominal content: 475 litres
Diameter (without thermal insulation): 650 mm,
Max. tipping height (without thermal insulation): 1770 mm
Connections: 8 x G 1½ IT
Max. operating pressure ps: 3 bar (coil 10 bar)
Operating temperature: ts: 95 °C (coil110 °C)
With integrated temperature stratification unit. Connections and mounting positions matched to the Regudor WHS add-on units. Thermal insulation avaiable as accessory.

Solar add-on unit:
Regusol L-130 DN 20 with Wilo TEC 15/7 PWM circulation pump, flow meter 2-15 l/min, safety group for pipeline installation 6 bar, connections G ¾ ET according to DIN V 3838.

Fresh water add-on unit:
Regumaq XH DN 20 hydraulically controlled product assembly with heat exchanger for hygienic hot potable water preparation according to the continous flow principle.
Recommended discharge capacity: 15-20 l/min, depending on the set potable water temperature and the existing buffer storage cylinder temperature
Connections: G ¾ ET, flat sealing
With Wilo Yonos Para RS 15/7 high-efficiency pump, temperature controller 40 - 70 °C and copper brazed heat exchanger made of stainless steel.

Heating circuit add-on unit:
Regumat M3-130 DN 20
For weather-compensated flow temperature control.
Connections: G 1 ET, flat sealing
With Wilo Stratos PICO 15/1-6 pump, three-way mixing valve and actuator.

Multifunctional system controller:
Regtronic RS for controlling the Regucor energy storage centre and other system components. Up to 12 free inputs and up to 9 free solid-state relay outputs. S-bus for connection to the DynaTemp CS-BS data logger. SD card slot for data recording.

Art.No.: 1383645
EAN: 4026755422535
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.
