Aquastrom UP-F Flush-mounted free-flow valve with internal thread and plaster sleeve
DN 15, Rp ½, bronze

Please wait!

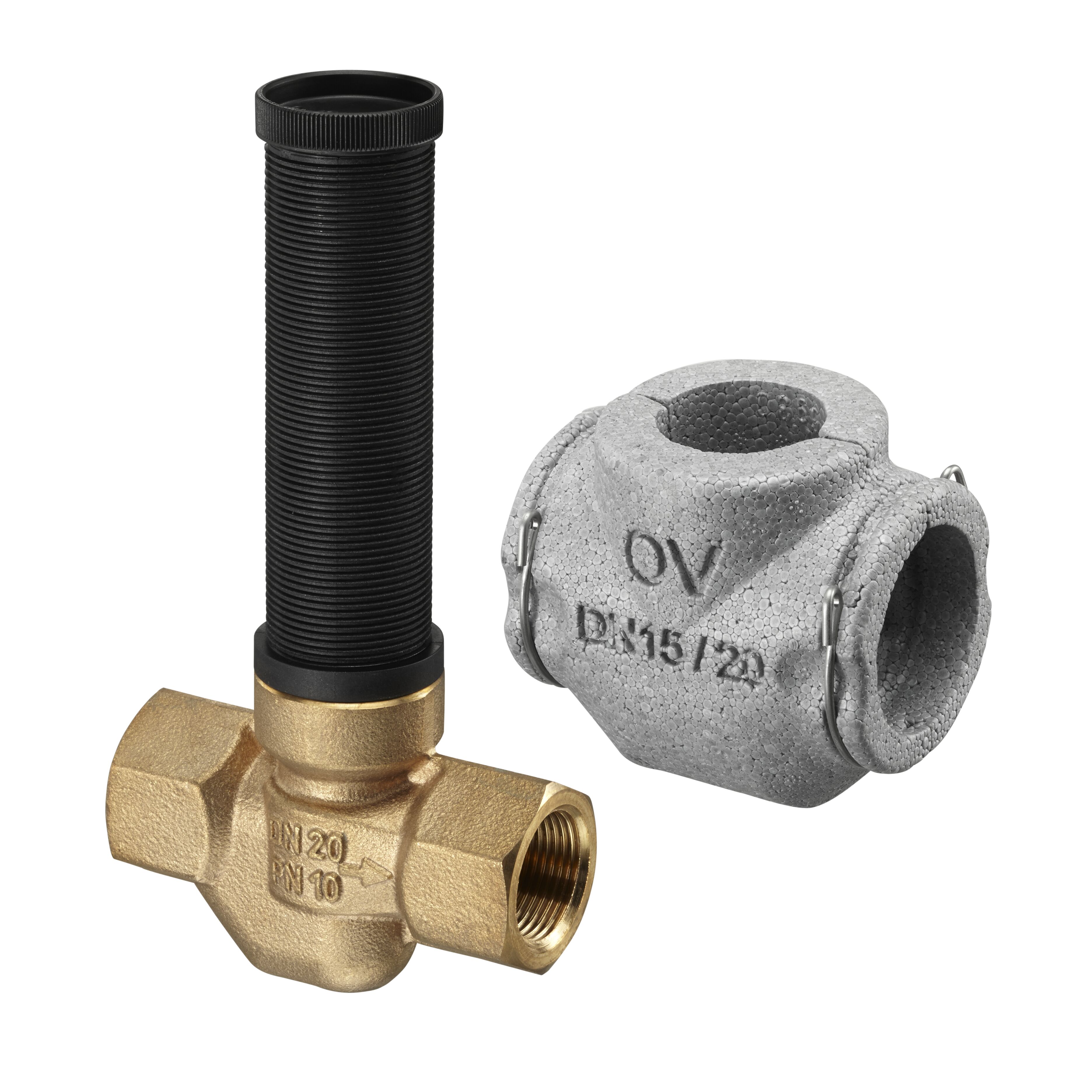

Flush-mounted free-flow valve "Aquastrom UP-F"

For potable water installations PN 16, straight pattern valve made of bronze, with flush-mounting pipe and protection/operating cap.

Without dead zone, non-rising stem, maintenance-free stem seal due to double O-ring made of EPDM.

Sound absorbing according to DIN EN ISO 3822 product group I.

With insulation shells made of EPS according to the Energy Saving Directive (EnEV). Fire protection class B1.

DVGW certified (DN 15, DN 20) (PN 10).

both ports female thread according to EN 10226-1 for the universal connection of pipes for flush-mounting or front of wall installation
to be discontinued
Art.No.: 4220104
EAN: 4026755357028
Manufacturer: Oventrop GmbH & Co. KG
