Name: Unibox E BV Individual room temperature control with bypass, depth: 57 mm, white
Brand: OVENTROP
SKU: 1022662

Description Dimensions BIM/CAD Images Documents Installation examples ETIM

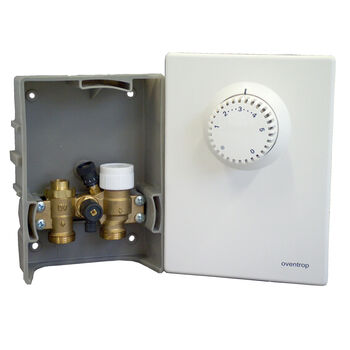

Unibox E BV Individual room temperature control
with bypass, depth: 57 mm, white

Unibox E BV Individual room temperature control

for individual room temperature control via a thermostatic valve ( room temperature control), with adjustable base load operation in systems with flow temperatures suitable for surface heating.

Consisting of: Wall mounting box with thermostatic valve with integrated bypass spindle and separate regulating insert for hydronic balancing of the surface heating circuits with each other , working without auxiliary energy. Vent and flush valve, valve insulation, cover and thermostat with zero position. Valve connection G ¾ for Oventrop compression fittings.

Setpoint range: 7-28 °C (room temperature)
Max. operating temperature of the valve: 100 °C
Max. operating pressure: 0-10 bar
Max. differential pressure: 0-1 bar
Depth: 57 mm

No longer produced

Art.No.: 1022662
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.
