Radiator lockshield valve "Combi 2"
DN 15, G ¾ M x G ½ M, PN 10, angle pattern, brass, nickel plated

Please wait!

Combi 2

Radiator lockshield valve with proportional presetting for use in hot water central heating systems and cooling circuits.

For presetting and shutting off the radiator.

Made of brass. Body nickel-plated. Valve plug  made of brass with EPDM O-ring seal. Brass protection cap with additional soft seal.

Installation dimensions according to DIN 3842 with connection for threaded connections.
No longer produced
Art.No.: 1091072
EAN: 4026755130492
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.
Download GAEB


Download tender text

Dimensions

Dimensions of article

Length Width Height Weight
72,1 mm 32,5 mm 50 mm 0,22 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 72,1 mm 32,5 mm 50 mm 0,22 kg
Carton 25 295 mm 195 mm 164 mm 5,67 kg
Europallet 2800 1200 mm 800 mm 1308 mm 658,04 kg

Images

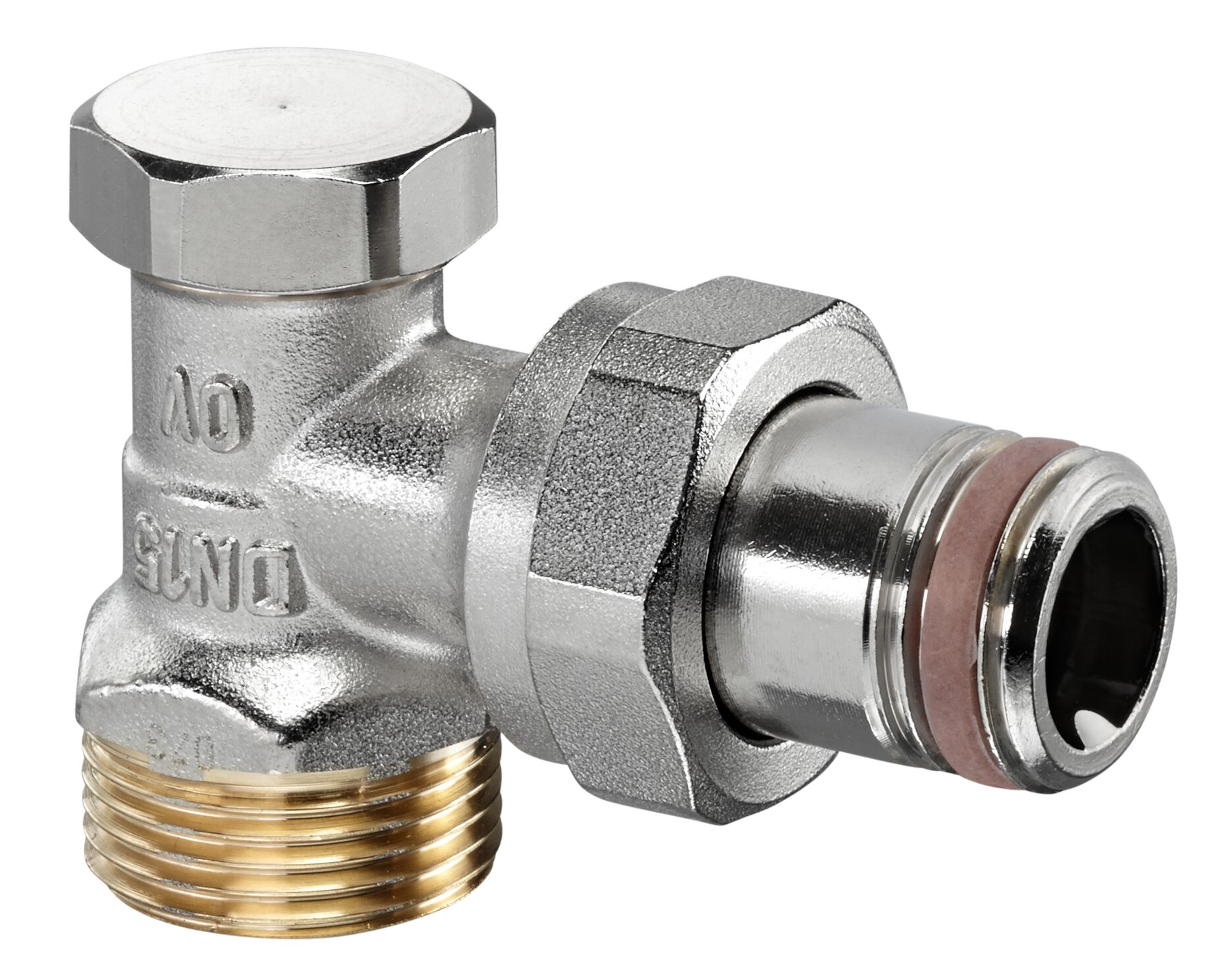

Product images

  File size
298,16 KB
  Size
1848 px x 1488 px
  Properties
  •  Clear product picture
  •  Cutout
Download

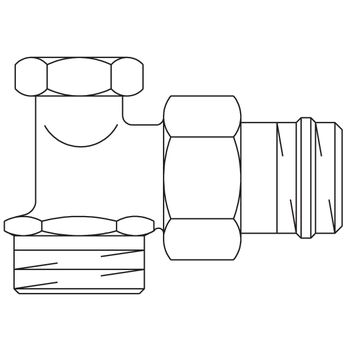

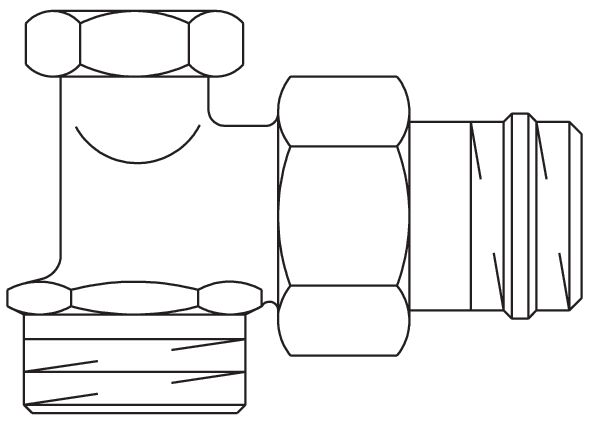

Drawings

  File size
18,6 KB
  Size
595 px x 424 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Valve sizing

Valve sizing

°C
°C
Watt
 Calculate
Please wait!

ETIM

Klassifizierung
ETIM 7.0
Property Value
Model Tailpiece/Outer thread
Surface protection Nickel-plated
Operation Allen
Right-angled model
Adjustable
With compression set
With drain
Size of pipe connection 3/4 inch Euro conus
Size of radiator connection 1/2 inch (15)
Kv value 0.06 - 1.7
Shortened construction length
Reverse direction of flow
Housing material Brass
Kvs value 1.7
