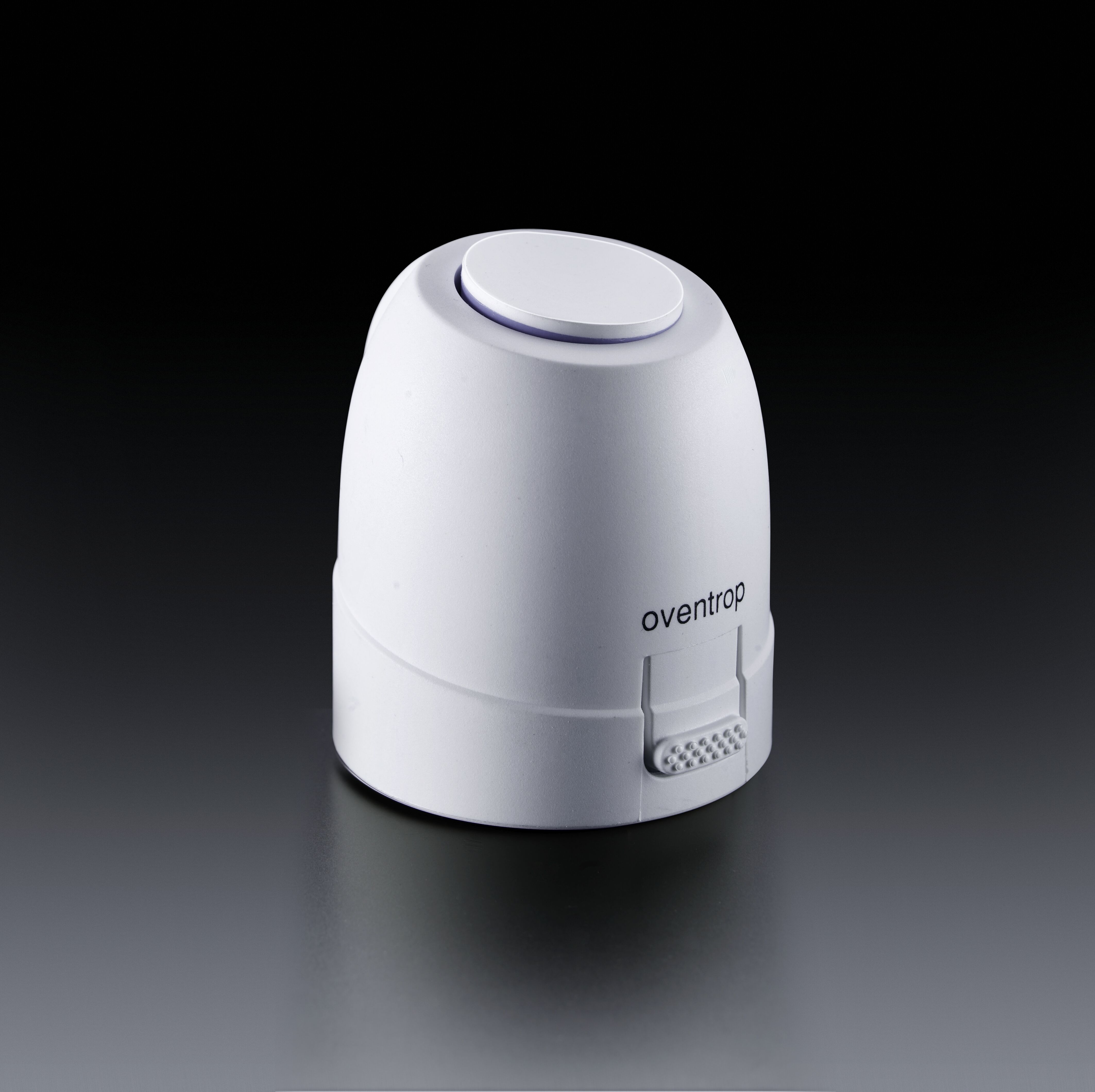

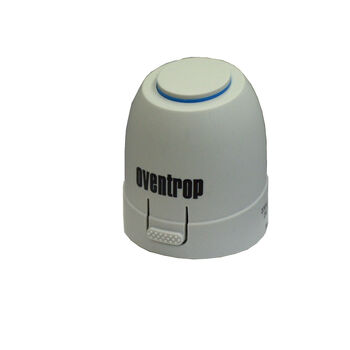

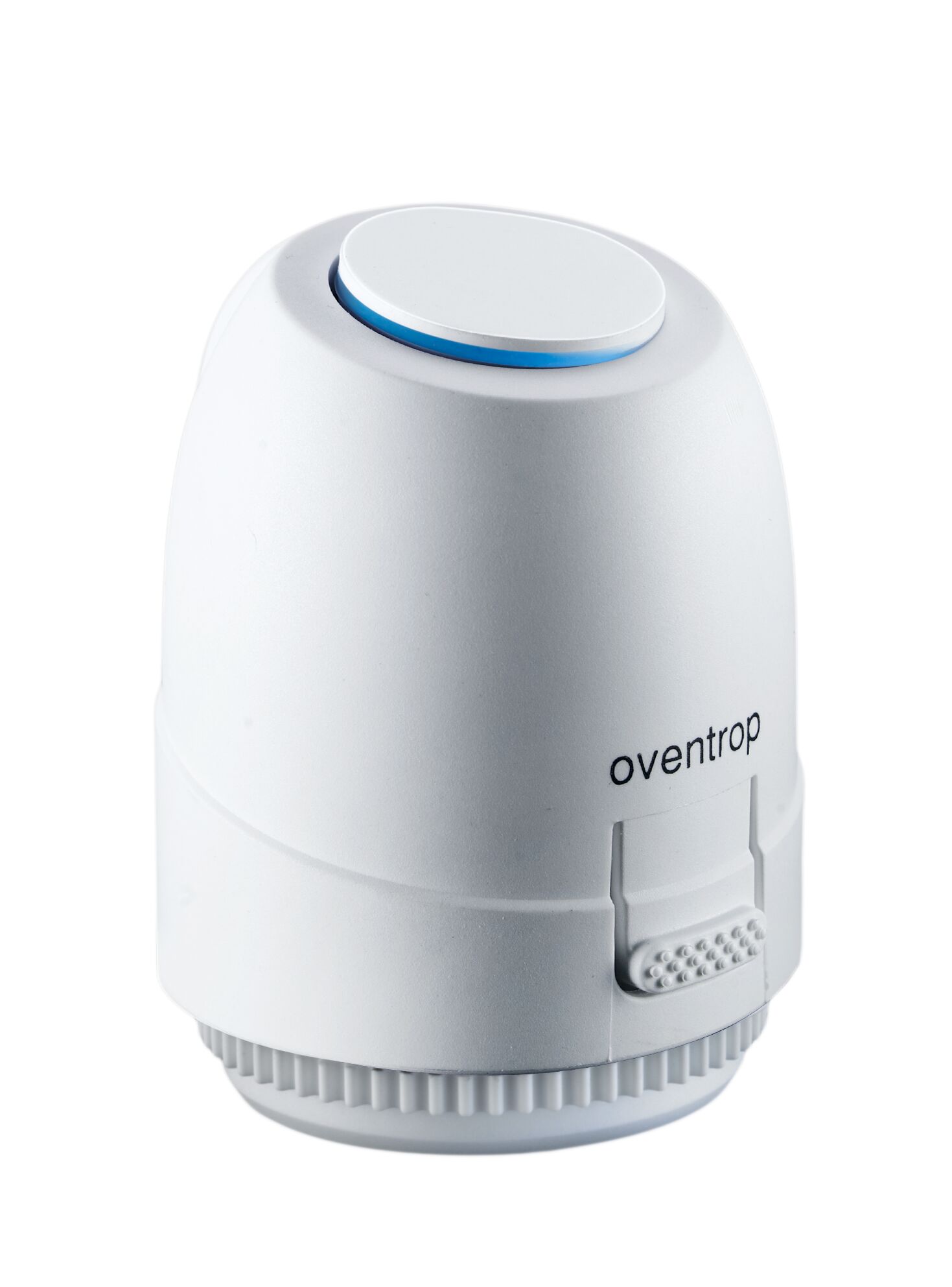

Electrothermal actuator "Aktor T 2P"
L NO, 24 V, opened with current "off", two point, M 30 x 1.5


Electrothermal actuator "Aktor T 2P"

Used for heating, ventilation and air conditioning. The actuator serves to control the room temperature and can be used e.g. with conventional radiators, radiators with integrated distributor, distributors/collectors for surface heating, radiant ceiling panels, chilled ceiling systems and induction air systems in combination with two point room thermostats. Further applications in bivalent heating installations.

For zone and room temperature control.

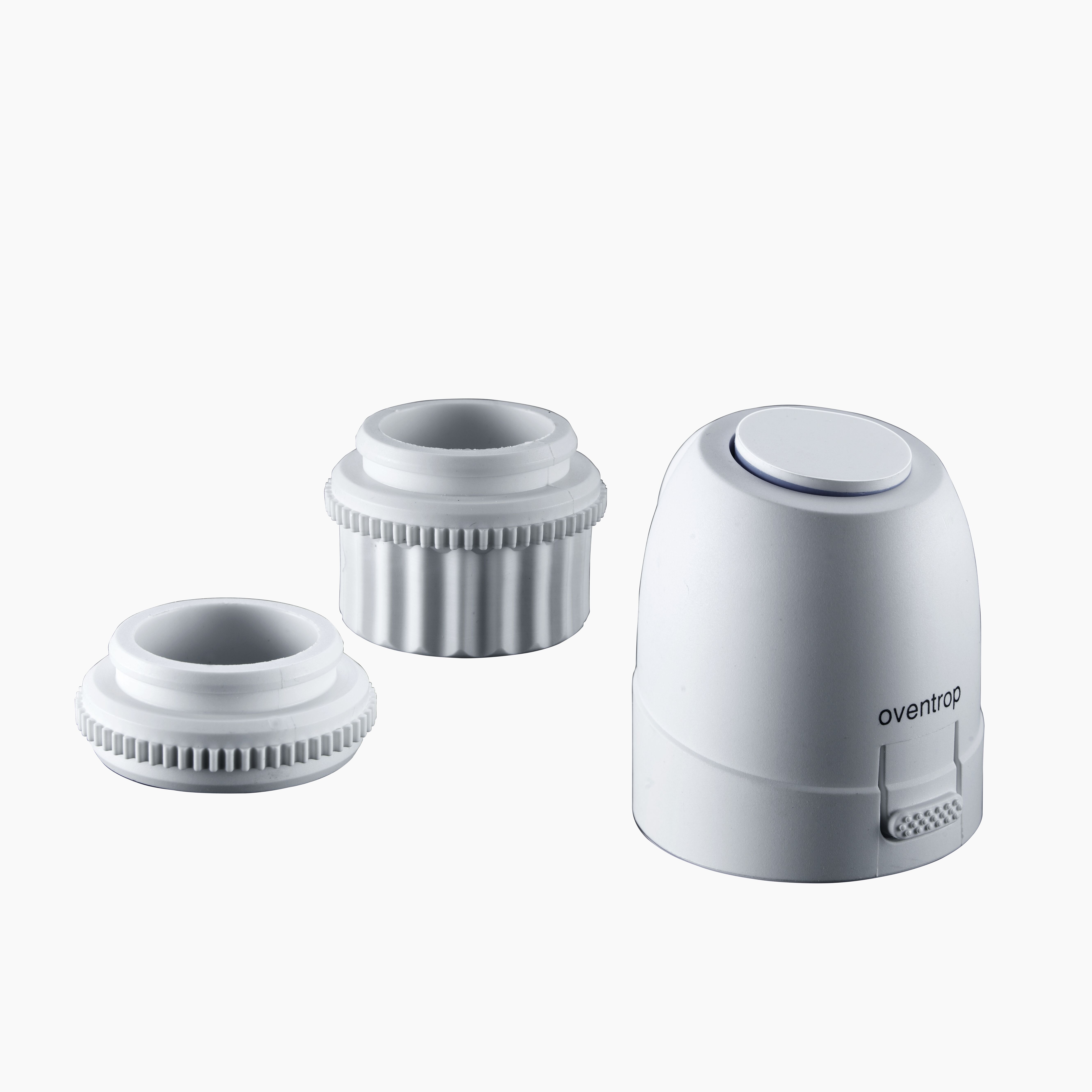

Simple plug-in connection with valve adapter. Actuators can be installed in any position.

Due to their construction, the electrothermal actuators are secured against overvoltage which could occur when switching on neon tubes. A varistor is thus not necessary.

Connecting cable: 1 m
to be discontinued
Art.No.: 1012826
EAN: 4026755357844
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.
