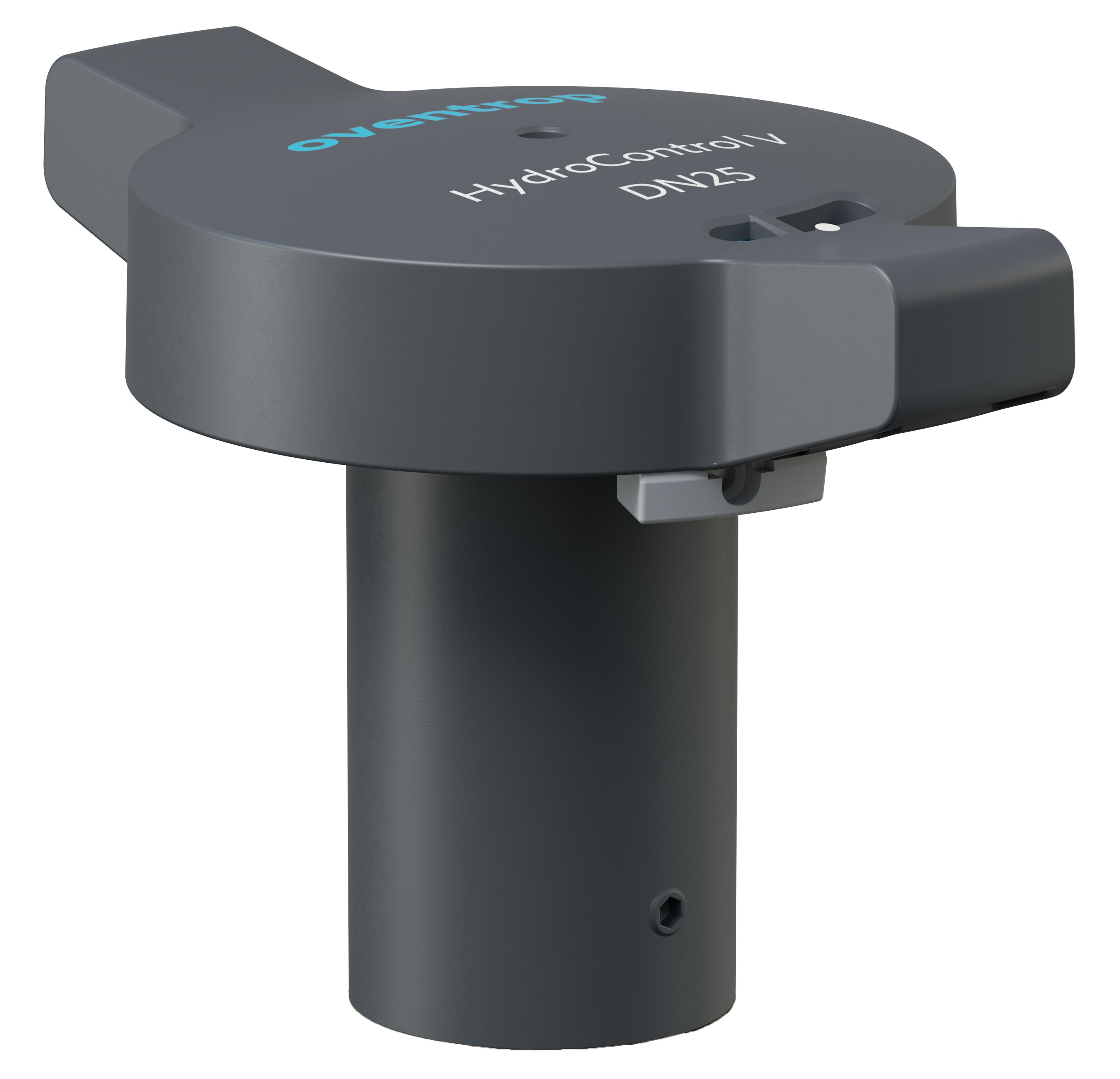

Handwheel

Please wait!


  • Main function: Handwheel
  • Presetting: Yes
  • Reproducible presetting: Yes
  • Presetting blockable: Yes
  • Position indicator: Yes
Art.-Nr.: 9010514
EAN: 4026755501360
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes
Download GAEB


Download tender text

Is spare part of

---------- Double regulating valve with metering station HydroControl M
Double regulating valve with metering station HydroControl M PN 25, DN 15 MF, Internal thread, Kvs: 0.9
Item no. 1065824
---------- Double regulating valve with metering station HydroControl M
Double regulating valve with metering station HydroControl M PN 25, DN 15 LF, Internal thread, Kvs: 0.4
Item no. 1065834
---------- Double regulating valve with metering station HydroControl M
Double regulating valve with metering station HydroControl M PN 25, DN 15 ULF, Internal thread, Kvs: 0.19
Item no. 1065844
---------- Double regulating valve with metering station HydroControl M
Double regulating valve with metering station HydroControl M PN 25, DN 15 HF, Internal thread, Kvs: 2.2
Item no. 1065804
---------- Double regulating valve with metering station HydroControl M
Double regulating valve with metering station HydroControl M PN 25, DN 20, Internal thread, Kvs: 4.3
Item no. 1065806
---------- Double regulating valve with metering station HydroControl M
Double regulating valve with metering station HydroControl M PN 25, DN 25, Internal thread, Kvs: 8.6
Item no. 1065808
---------- Double regulating valve with metering station HydroControl M
Double regulating valve with metering station HydroControl M PN 25, DN 32, Internal thread, Kvs: 15.9
Item no. 1065810
---------- Double regulating valve with metering station HydroControl M
Double regulating valve with metering station HydroControl M PN 25, DN 40, Internal thread, Kvs: 23.4
Item no. 1065812
---------- Double regulating valve with metering station HydroControl M
Double regulating valve with metering station HydroControl M PN 25, DN 50, Internal thread, Kvs: 35
Item no. 1065816
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 25, DN 15, Internal thread, Kvs: 3.9
Item no. 1062404
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 25, DN 20, Internal thread, Kvs: 6.9
Item no. 1062406
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 25, DN 25, Internal thread, Kvs: 11
Item no. 1062408
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 25, DN 32, Internal thread, Kvs: 20.8
Item no. 1062410
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 25, DN 40, Internal thread, Kvs: 28.7
Item no. 1062412
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 25, DN 50, Internal thread, Kvs: 42.9
Item no. 1062416
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 16, DN 15, External thread, Kvs: 3.9
Item no. 1062604
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 16, DN 20, External thread, Kvs: 6.9
Item no. 1062606
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 16, DN 25, External thread, Kvs: 11
Item no. 1062608
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 16, DN 32, External thread, Kvs: 20.8
Item no. 1062610
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 16, DN 40, External thread, Kvs: 28.7
Item no. 1062612
---------- Double regulating valve HydroControl V
Double regulating valve HydroControl V PN 16, DN 50, External thread, Kvs: 42.9
Item no. 1062616

Dimensions

----------

Dimensions of article

Length Width Height Weight
109 mm 68 mm 70 mm 0,11 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 93 mm 90 mm 96 mm 0,11 kg
Unknown 832 1200 mm 800 mm 950 mm 167,69 kg

Images

Product images

  File size
158,6 KB
  Size
2662 px x 2565 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
