Uni CH Thermostat
M 30 x 1.5, 7-28 °C, * 1-5, liquid sensor, white

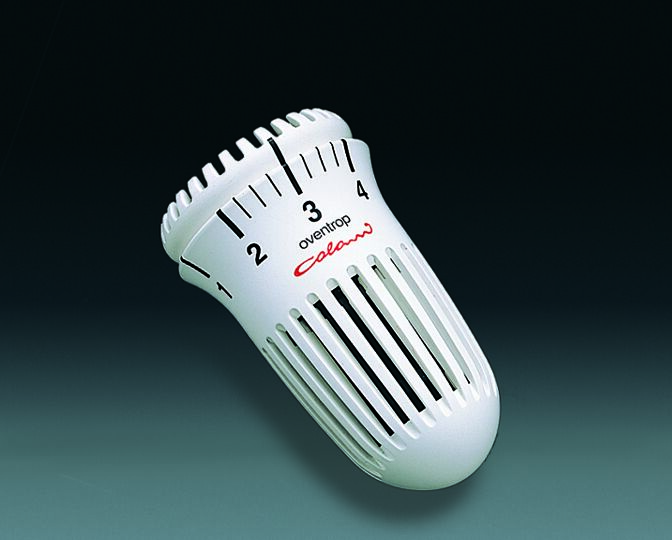

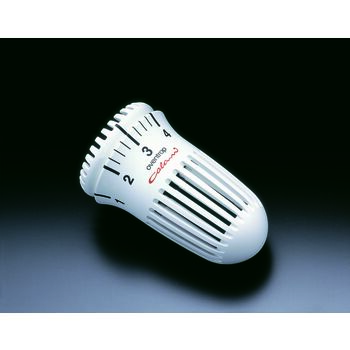

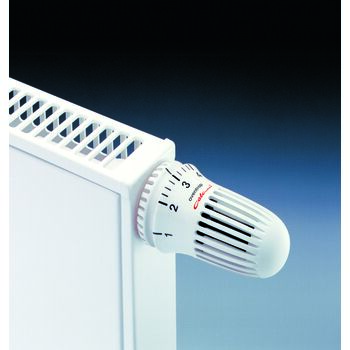

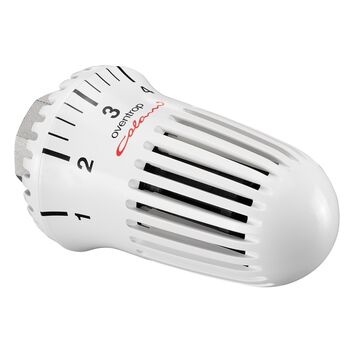

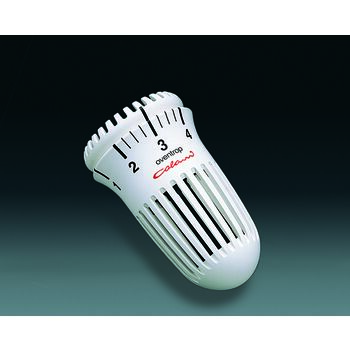

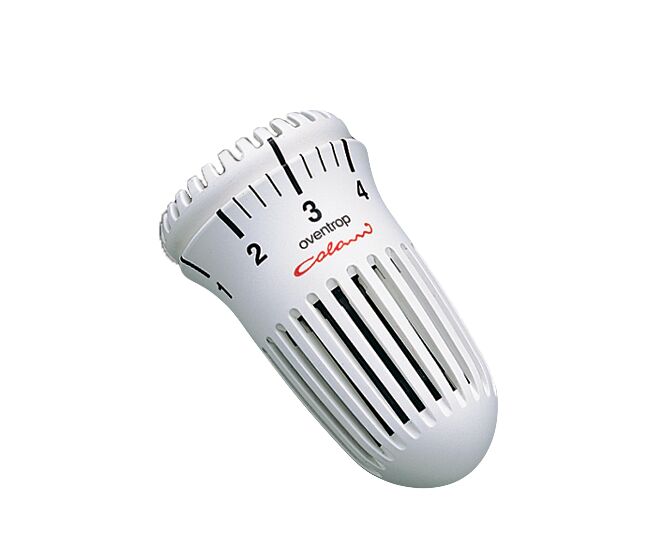

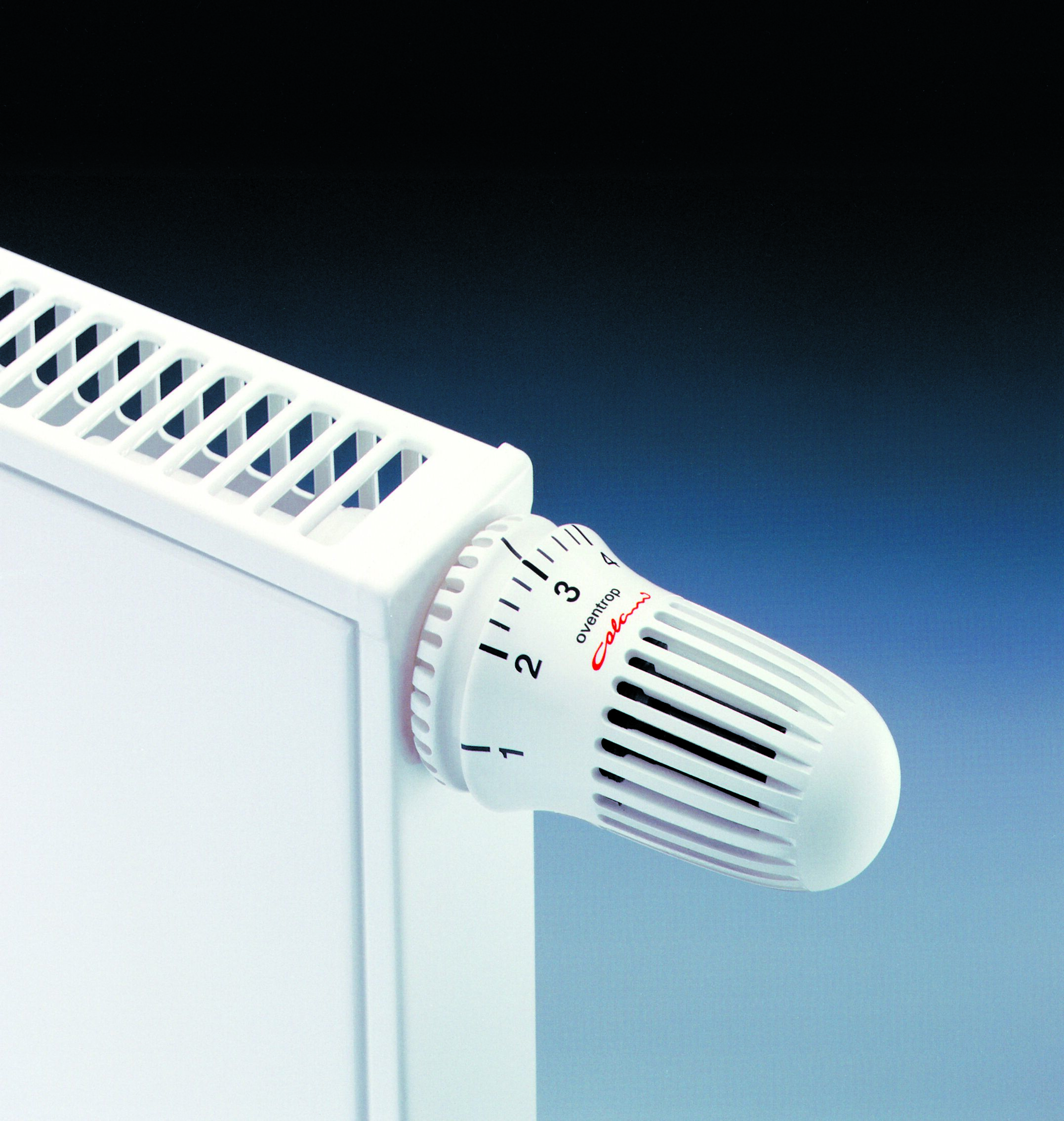

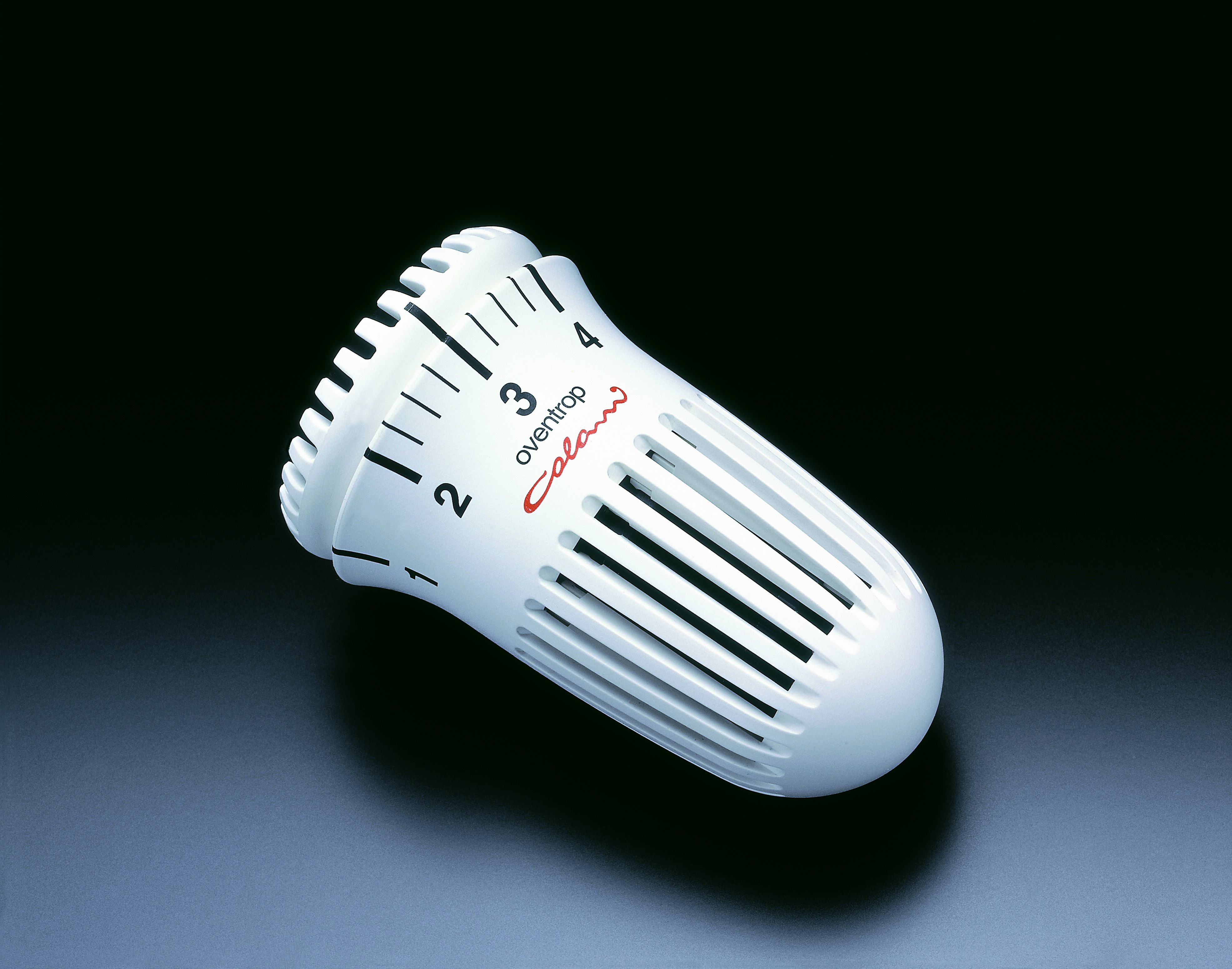

Thermostat "Uni CH"

with liquid sensor. Design Colani, with frost protection.

Suitable for valves with connection thread M 30 x 1.5 and the integrated distributors with connection thread M 30 x 1.5 of the following radiator manufacturers:

ACOVA, Alarko, Aluplan, Arbonia, Baufa, Bemm, Borer, Bremo, Caradon- Stelrad, Cetra, Cöskünöz, Concept, Dekatherm, DEF, Delta, Demrad, DiaNorm, Dia-therm, Dunaferr, DURA, Ferroli, Gerhard + Rauh, Heatline, Henrad, HM- Heizkörper, Hoval, IMAS, Itemar/Biasi, Jaga, JOCO, Kaitherm, Kalor, Kermi, Korado, Lembacher, Manaut, Merriott, Neria, Purmo, Radson, Rettig, Runtal, Starpan, Stelrad, Superia, Univa, US-Steel, Vasco, VEHA, Winkels, Zehnder, Zenith.

Temperature range 7-28°C
Graduation on cap * 1-5
Without ‘0’ setting
Art.No.: 1011265
EAN: 4026755114850
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Actuators

Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5
Item no. 1012415
Aktor T 2P Electrothermal actuator, on/off control 24 V AC / DC, normally closed, connection thread M 30 x 1.5
Item no. 1012416
Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally open, connection thread M 30 x 1.5
Item no. 1012425
Aktor T 2P Electrothermal actuator, on/off control 24 V AC / DC, normally open, connection thread M 30 x 1.5
Item no. 1012426
Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally closed with integrated auxiliary switch, connection thread M 30 x 1.5
Item no. 1012435
Aktor T 2P Electrothermal actuator, on/off control 24 V AC / DC, normally closed, M 30 x 1.5, cable length 2 m
Item no. 1012442
Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5, cable length 2 m
Item no. 1012452
Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally closed, connection thread M 30 x 1.5, cable length 5 m
Item no. 1012455
Aktor T 2P Electrothermal actuator, on/off control 230 V AC, normally closed, connection threadM 30 x 1.5, cable length 10 m
Item no. 1012459
Aktor M Electromotive actuator, on/off control, with short operating time (3 s) 230 V AC, connection thread M 30 x 1.5
Item no. 1012710
Aktor M Electromotive actuator, on/off control, with short operating time (3 s), connection thread M 30 x 1.5 24 V AC / DC, connection thread M 30 x 1.5
Item no. 1012711
Aktor M Electromotive actuator, modulating with 0 - 10 V 24 V AC / DC, modulating proportional actuator, connection thread M 30 x 1.5
Item no. 1012717
Aktor M Electromotive actuator, modulating with 0 - 10 V 24 V AC / DC, modulating proportional actuator, connection thread M 30 x 1.5
Item no. 1012725
Aktor M Electromotive actuator, modulating with 0 - 10 V 24 V AC / DC, modulating proportional actuator, connection thread M 30 x 1.5
Item no. 1012726
Aktor M Electromotive actuator actuator, on/off and floating control 230 V AC, connection thread M 30 x 1.5
Item no. 1012729
Aktor M Electromotive actuator with Modbus RTU interface 24 V AC / DC, connection thread M 30 x 1.5, suitable for Cocon QTZ
Item no. 1012745
Aktor M Electromotive actuator with KNX interface 21 - 32 V (from KNX bus), connection thread M 30 x 1.5
Item no. 1012746
Aktor T ST Electrothermal actuator, 0 - 10 V control 24 V AC, normally closed, connection thread M 30 x 1,5
Item no. 1012953
Aktor M Electromotive actuator with Modbus RTU interface 24 V AC / DC, connection thread M 30 x 1.5, suitable for Cocon QTR/QFC DN 40 and DN 50
Item no. 1158014

Dimensions

Dimensions of article

Length Width Height Weight
59 mm 59 mm 109 mm 0,16 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 60 mm 60 mm 120 mm 0,18 kg
Bag 10 305 mm 120 mm 120 mm 1,82 kg

Images

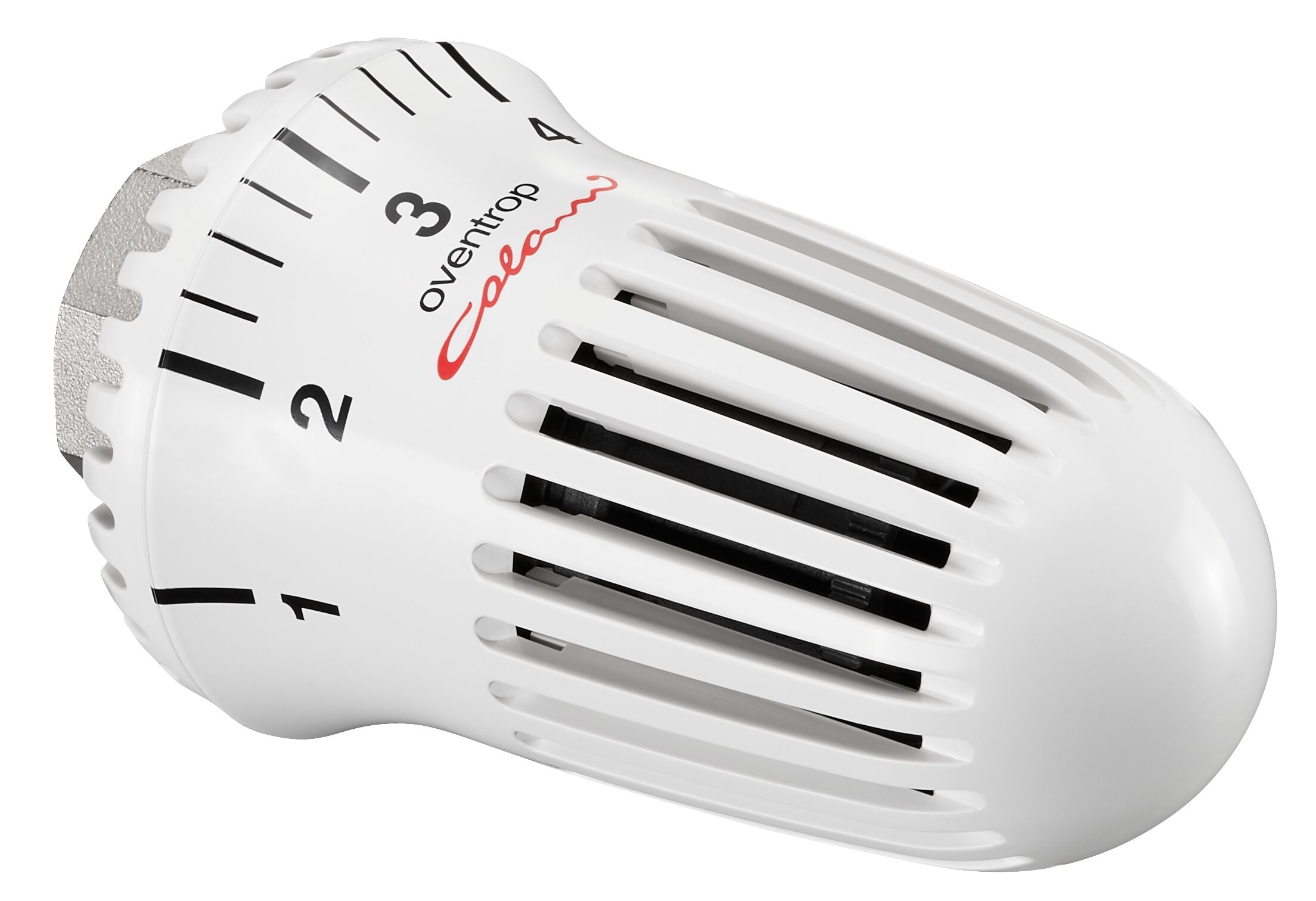

Product images

  File size
23,69 KB
  Size
672 px x 540 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
147,71 KB
  Size
2208 px x 1512 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
52,37 KB
  Size
672 px x 540 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
744,83 KB
  Size
2154 px x 2270 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
1,89 MB
  Size
3941 px x 3100 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
58,32 KB
  Size
487 px x 892 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0 EC010064
Radiator thermostat button
Property Value
Colour White
Model Straight
RAL-number 9010
Adjustment range 7 - 28
Remote operation
Vandal proof
Programme clock
Adjustment element Liquid-filled
Remote sensor
Frost protected
Mechanically sealable at zero position
Connection to radiator stop valve M30 x 1.5
Blocking/limiting adjustment range
Length of remote capillary sensor 0 m
Length of remote capillary control element 0 m
Remote sensor diameter 0 mm
Length of remote sensor 0 mm
Suitable for valve compact radiator
With anti-theft security
