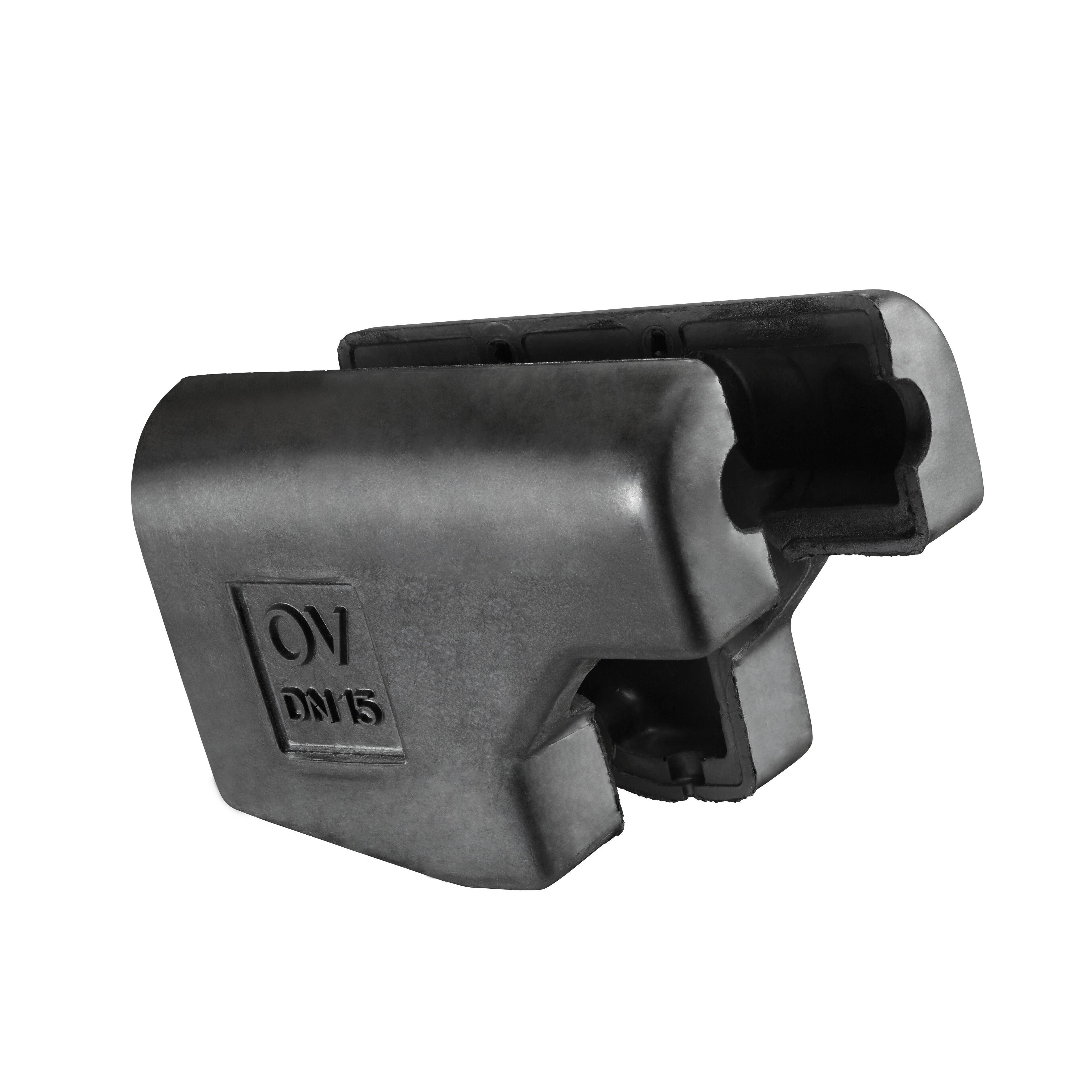

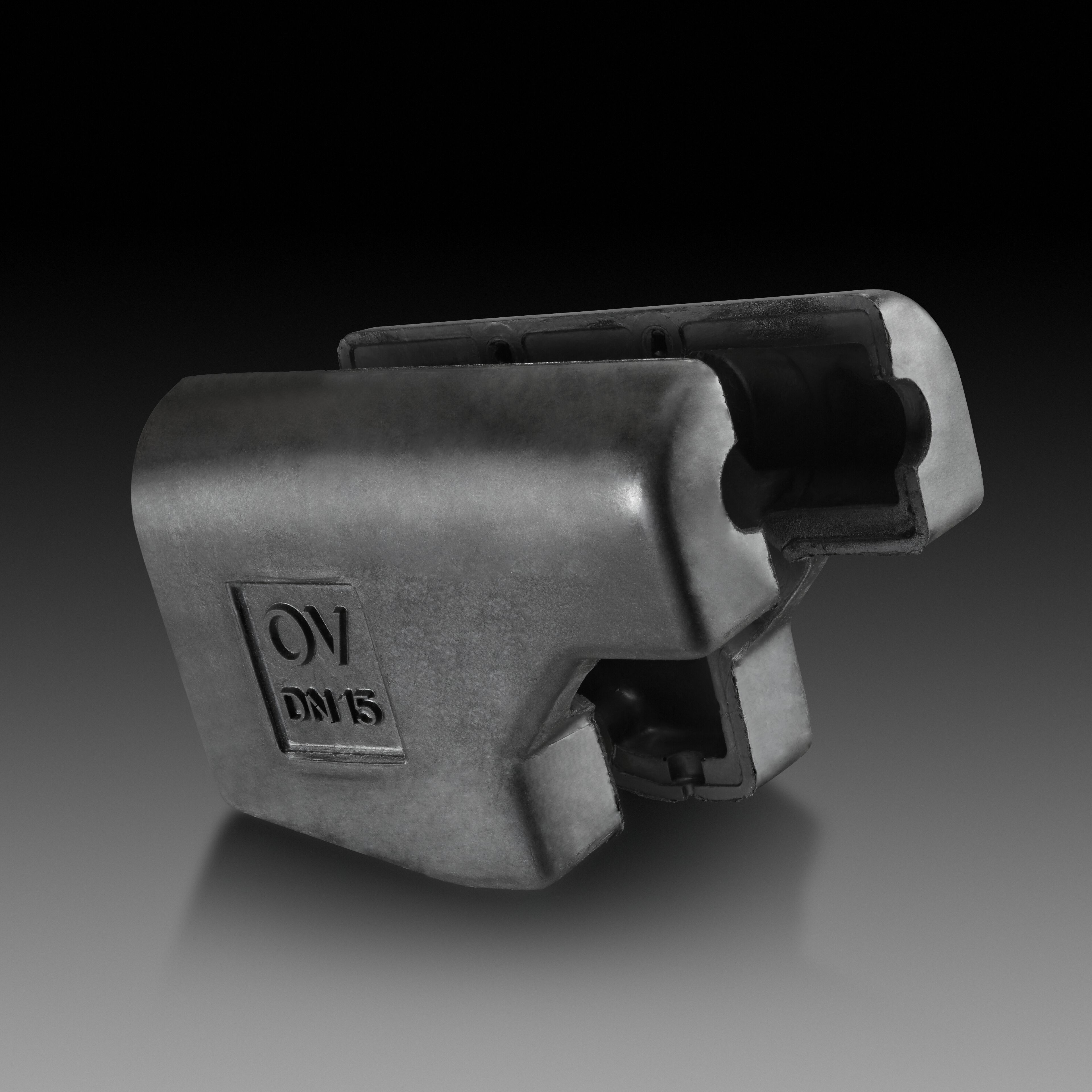

Insulation shells
for "Hydrocontrol VTR/VPR/ATR/APR", "Hydromat QTR/DTR", "Aquastrom F/KFR", DN 15


Art.No.: 1060081
EAN: 4026755167870
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Is accessory of

Combined free-flow and non-return check valve "Aquastrom KFR" F/F DN 15, Rp ½ x Rp ½, draining orifices closed with plugs, bronze
Item no. 4205804
Combined free-flow and non-return check valve "Aquastrom KFR" F/F DN 15, Rp ½ x Rp ½, with draining ball valve, bronze
Item no. 4206204
Combined free-flow and non-return check valve "Aquastrom KFR" F/M DN 15, Rp ½ x G ¾, draining orifices closed with plugs, bronze
Item no. 4206804
Combined free-flow and non-return check valve "Aquastrom KFR" M/M DN 15, G ¾ x G ¾, draining orifices closed with plugs, bronze
Item no. 4207804
Combined free-flow and non-return check valve "Aquastrom KFR" M/M DN 15, G ¾ x G ¾, with draining ball valve, bronze
Item no. 4208204
Combined free-flow and non-return check valve "Aquastrom KFR" M/M DN 15, G 1 x G 1, draining orifices closed with plugs, bronze
Item no. 4208363
Differential pressure regulator "Hydromat DTR" PN 16 bronze, both ports female thread, 50-300 mbar, DN 15
Item no. 1064504
Differential pressure regulator "Hydromat DTR" PN 16 bronze, male threads with collar nuts, 50-300 mbar, DN 15
Item no. 1064604
Differential pressure regulator "Hydromat DTR" PN 16 bronze, both ports female thread, 250-700 mbar, DN 15
Item no. 1064704
Differential pressure regulator "Hydromat DTR" PN 16 bronze, male threads with collar nuts, 250-700 mbar, DN 15
Item no. 1064804
Isolating and orifice valve "Hydrocontrol ATR" PN 25 bronze, both ports female, with blind plugs, DN 10
Item no. 1067503
Isolating and orifice valve "Hydrocontrol ATR" PN 25 bronze, both ports female, with blind plugs, DN 15
Item no. 1067504
Isolating and orifice valve "Hydrocontrol ATR" PN 16 bronze, both ports male with collar nuts, with blind plugs, DN 10
Item no. 1067603
Isolating and orifice valve "Hydrocontrol ATR" PN 16 bronze, both ports male with collar nuts, with blind plugs, DN 15
Item no. 1067604
Double regulating and commissioning valve "Hydrocontrol VTR" PN 25 bronze, both ports female, with blind plugs, DN 10
Item no. 1060103
Double regulating and commissioning valve "Hydrocontrol VTR" PN 25 bronze, both ports female, with blind plugs, DN 15
Item no. 1060104
Double regulating and commissioning valve "Hydrocontrol VTR" PN 16 bronze, both ports male with collar nuts, with blind plugs, DN 10
Item no. 1060503
Double regulating and commissioning valve "Hydrocontrol VTR" PN 16 bronze, both ports male with collar nuts, with blind plugs, DN 15
Item no. 1060504
Double regulating and commissioning valve "Hydrocontrol VTR" PN 25 bronze, both ports female, 2 pressure test points, DN 10
Item no. 1060203
Double regulating and commissioning valve "Hydrocontrol VTR" PN 25 bronze, both ports female, 2 pressure test points, DN 15
Item no. 1060204
Double regulating and commissioning valve "Hydrocontrol VTR" PN 25 bronze, both ports female, 1 pressure test point, 1 fill and drain valve, DN 10
Item no. 1060303
Double regulating and commissioning valve "Hydrocontrol VTR" PN 25 bronze, both ports female, 1 pressure test point, 1 fill and drain valve, DN 15
Item no. 1060304
Double regulating and commissioning valve "Hydrocontrol VTR" PN 25 both ports female thread, DN 10, with 2 pressure test points, with DNV-GL type approval
Item no. 1688703
Double regulating and commissioning valve "Hydrocontrol VTR" PN 25 both ports female thread, DN 15, with 2 pressure test points, with DNV-GL type approval
Item no. 1688704
Free-flow valve "Aquastrom F" both ports female thread DN 15, Rp ½ x Rp ½, without draining orifices, bronze
Item no. 4200804
Free-flow valve "Aquastrom F" both ports female thread DN 15, Rp ½ x Rp ½, draining orifices closed with plugs, bronze
Item no. 4201004
Free-flow valve "Aquastrom F" both ports female thread DN 15, Rp ½ x Rp ½, with draining ball valve, bronze
Item no. 4201204
Free-flow valve "Aquastrom F" both ports female thread Ø 15 mm, both ports press fittings, with draining ball valve, bronze
Item no. 4201252
Free-flow valve "Aquastrom F" both ports female thread Ø 18 mm, both ports press fittings, with draining ball valve, bronze
Item no. 4201253
Free-flow valve "Aquastrom F" both ports male thread DN 15, G ¾ x G ¾, draining orifices closed with plugs, bronze
Item no. 4201804
Free-flow valve "Aquastrom F" both ports male thread DN 15, G ¾ x G ¾, with draining ball valve, bronze
Item no. 4202204
Free-flow valve "Aquastrom F" both ports male thread DN 15, G 1 x G 1, draining orifices closed with plugs, bronze
Item no. 4202463
Free-flow valve "Aquastrom F" female thread/male thread DN 15, Rp ½ x G ¾, draning orifices closed with plugs, bronze
Item no. 4202804
Free-flow valve "Aquastrom F" female thread/male thread DN 25, Rp 1 x G 1¼, draning orifices closed with plugs, bronze
Item no. 4202808
Free-flow valve "Aquastrom F" female thread/male thread DN 32, Rp 1¼ x G 1½, draning orifices closed with plugs, bronze
Item no. 4202810
Free-flow valve "Aquastrom F" female thread/male thread DN 40, Rp 1½ x G 1¾, draning orifices closed with plugs, bronze
Item no. 4202812
Free-flow valve "Aquastrom F" female thread/male thread DN 50, Rp 2 x G 2⅜, draning orifices closed with plugs, bronze
Item no. 4202816
Free-flow valve "Aquastrom F" solder connection/collar nut DN 15, solder conn. and solder tailpipe 15 mm, draining orifices closed with plugs, bronze
Item no. 4203852
Free-flow valve "Aquastrom F" solder connection/collar nut DN 15, solder conn. and solder tailpipe 18 mm, draining orifices closed with plugs, bronze
Item no. 4203853

Dimensions

Dimensions of article

Length Width Height Weight
180 mm 137 mm 72 mm 0,12 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 180 mm 137 mm 72 mm 0,12 kg
One-way pallet 350 1205 mm 800 mm 880 mm 70,3 kg

Images

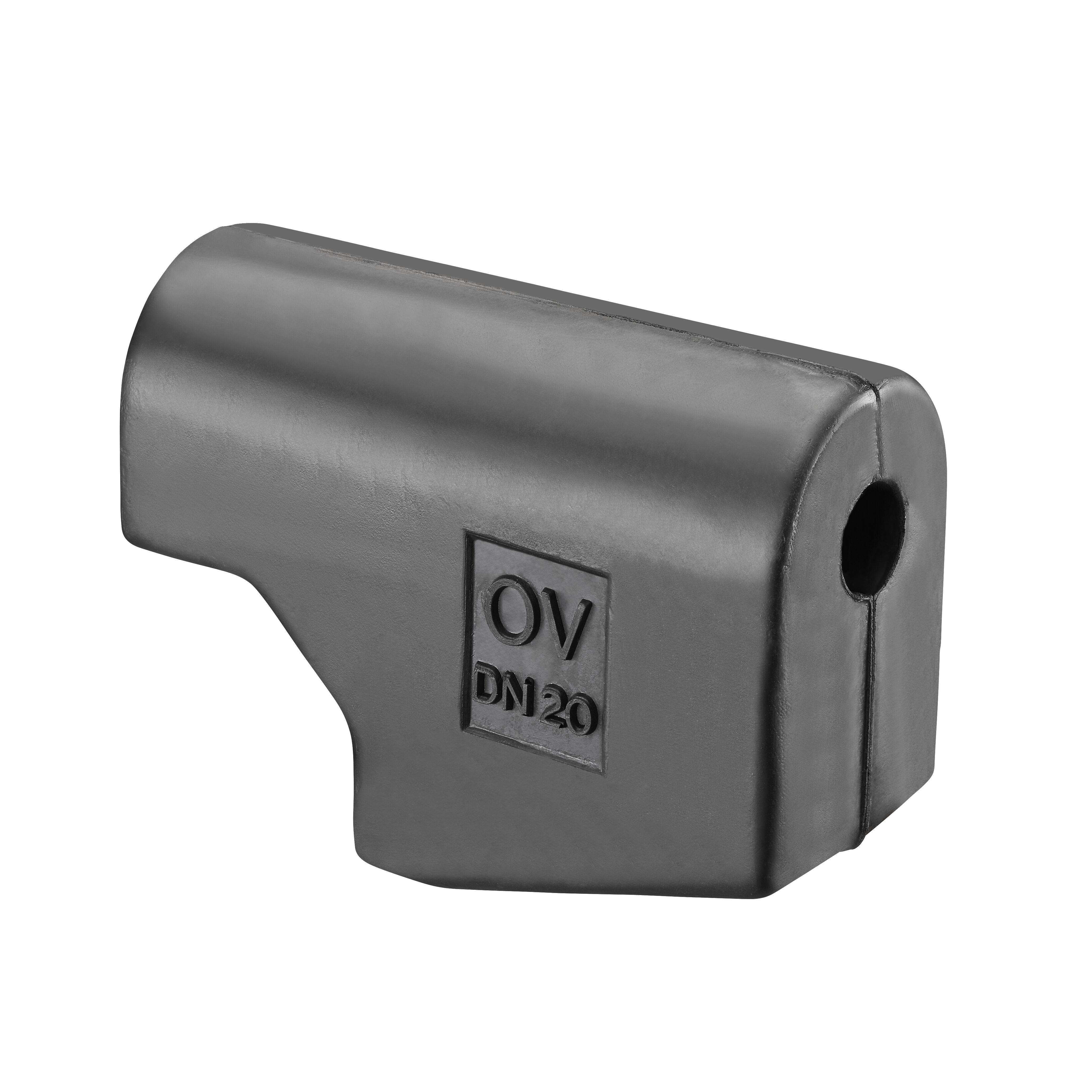

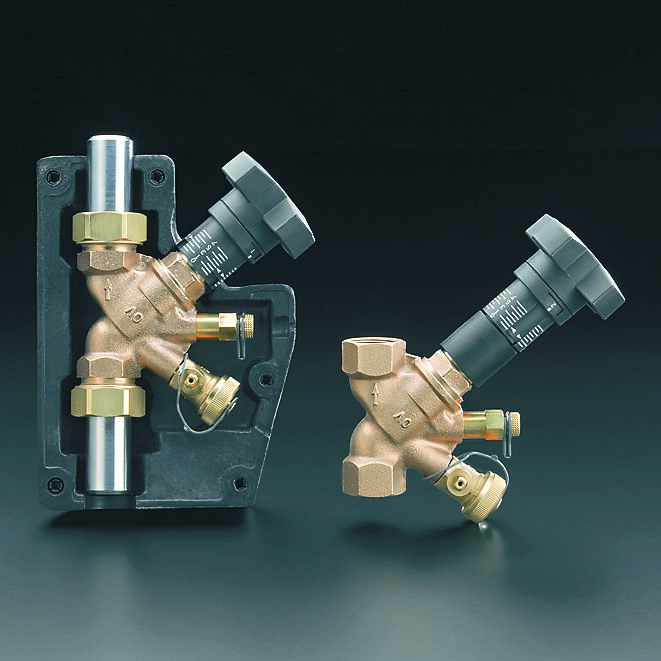

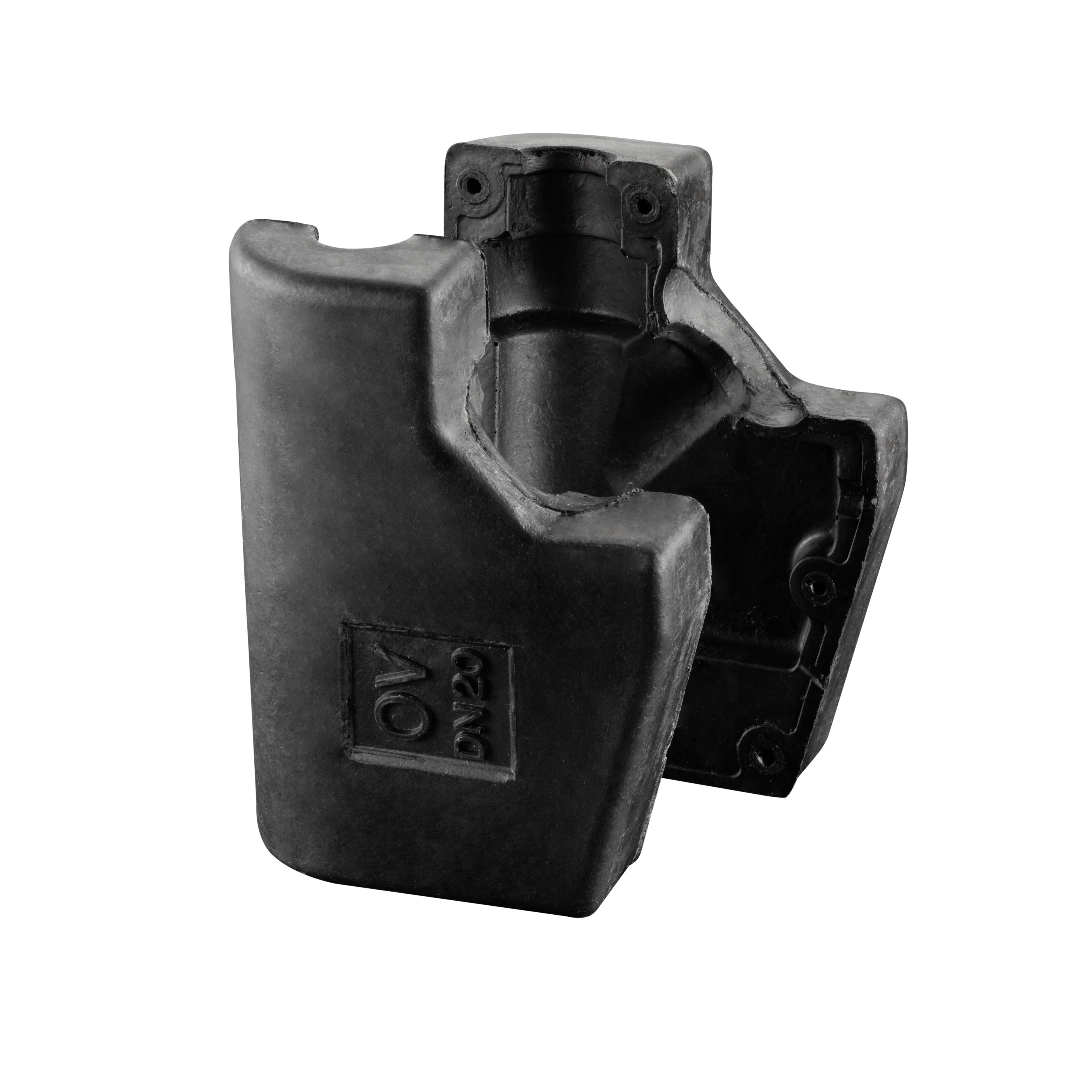

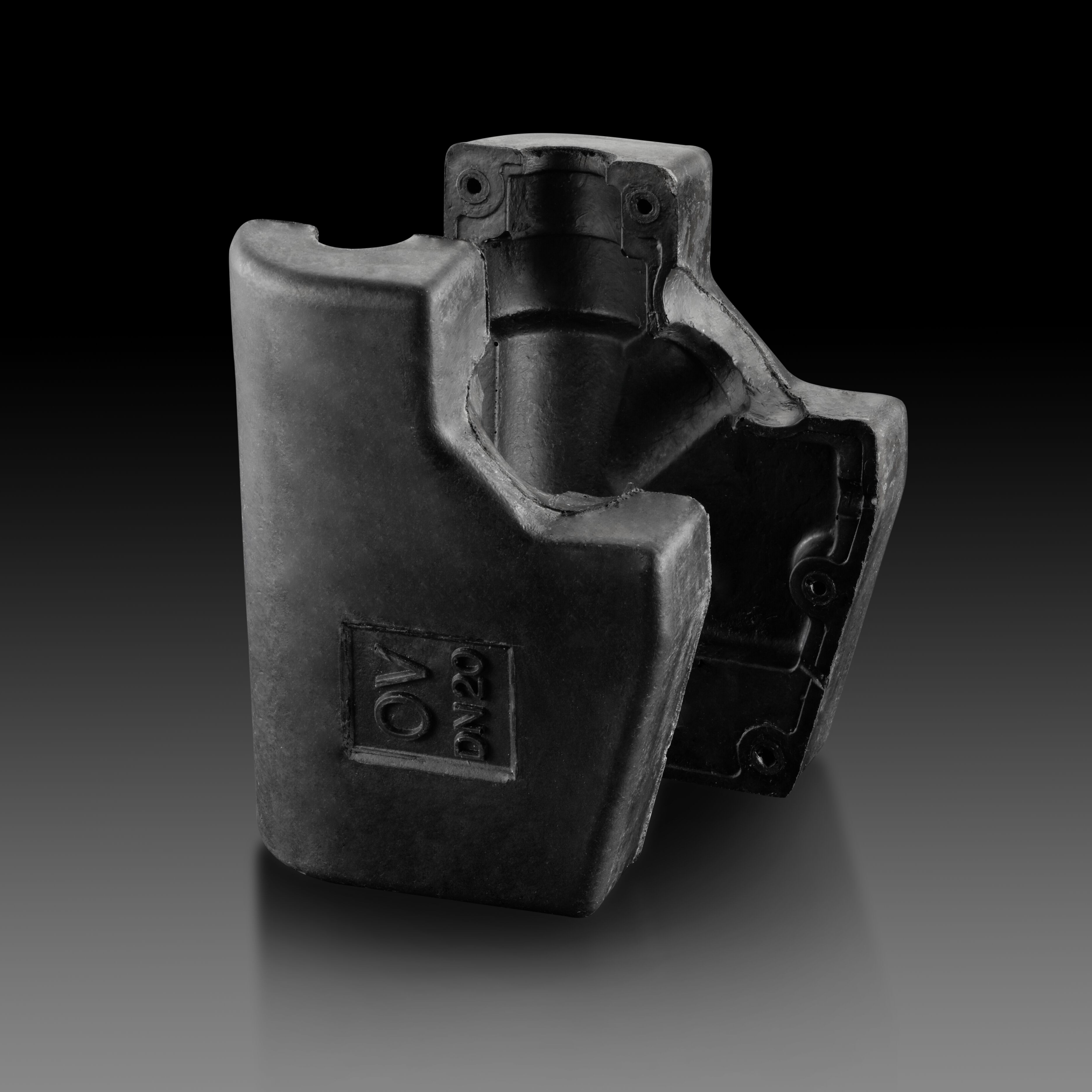

Product images

  File size
743,97 KB
  Size
4143 px x 4143 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
600,34 KB
  Size
3840 px x 3840 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
567,32 KB
  Size
3744 px x 3744 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
581,54 KB
  Size
3744 px x 3744 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
917,89 KB
  Size
3840 px x 3840 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
88,83 KB
  Size
661 px x 661 px
  Properties
  •  Clear product picture
  •  Cutout
Download

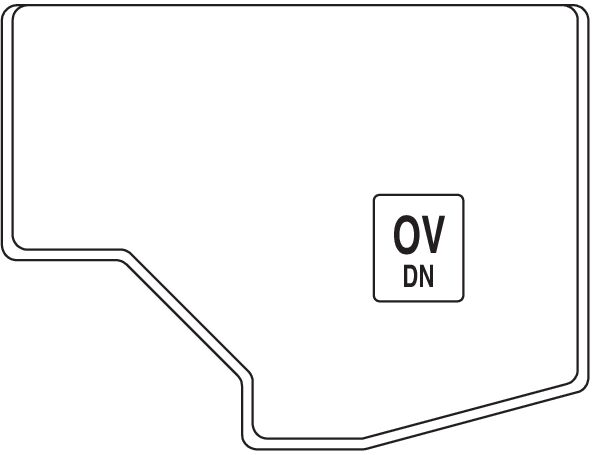

Drawings

  File size
14,26 KB
  Size
595 px x 455 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Technical data

  Name Size
db_1060103_en.pdf 2,92 MB

System illustration

Limitation of flow
Double regulating- and isolating valve, female thread, bronze
Flow control
Isolating valve "Hydrocontrol A" and flow regulator "Hydromat Q" female thread, bronze
Differential pressure regulation
Isolating valve and differential pressure regulator "Hydromat DP" female thread, bronze

ETIM

Klassifizierung
ETIM 7.0 EC011656
Accessories/spare parts for regulating valve
Property Value
Type of accessory/spare part Insulation tray
Material Other
