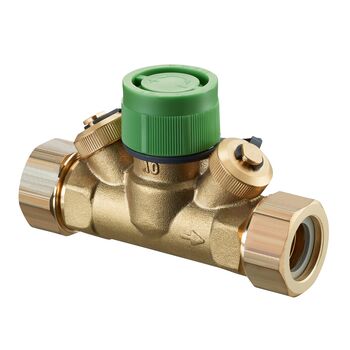

DZR brass, with pressure test points and drain valves, DN 15, G ¾ male


to be discontinued
Art.No.: 1068664
EAN: 4026755264975
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
107 mm 65 mm 33 mm 0,5 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 107 mm 65 mm 33 mm 0,5 kg
Carton 10 180 mm 175 mm 150 mm 5,12 kg

CAD

Notice for CAD viewer

In order to open the CAD-Viewer and Download CAD-Data please onetime download and install the CAD-App.

Images

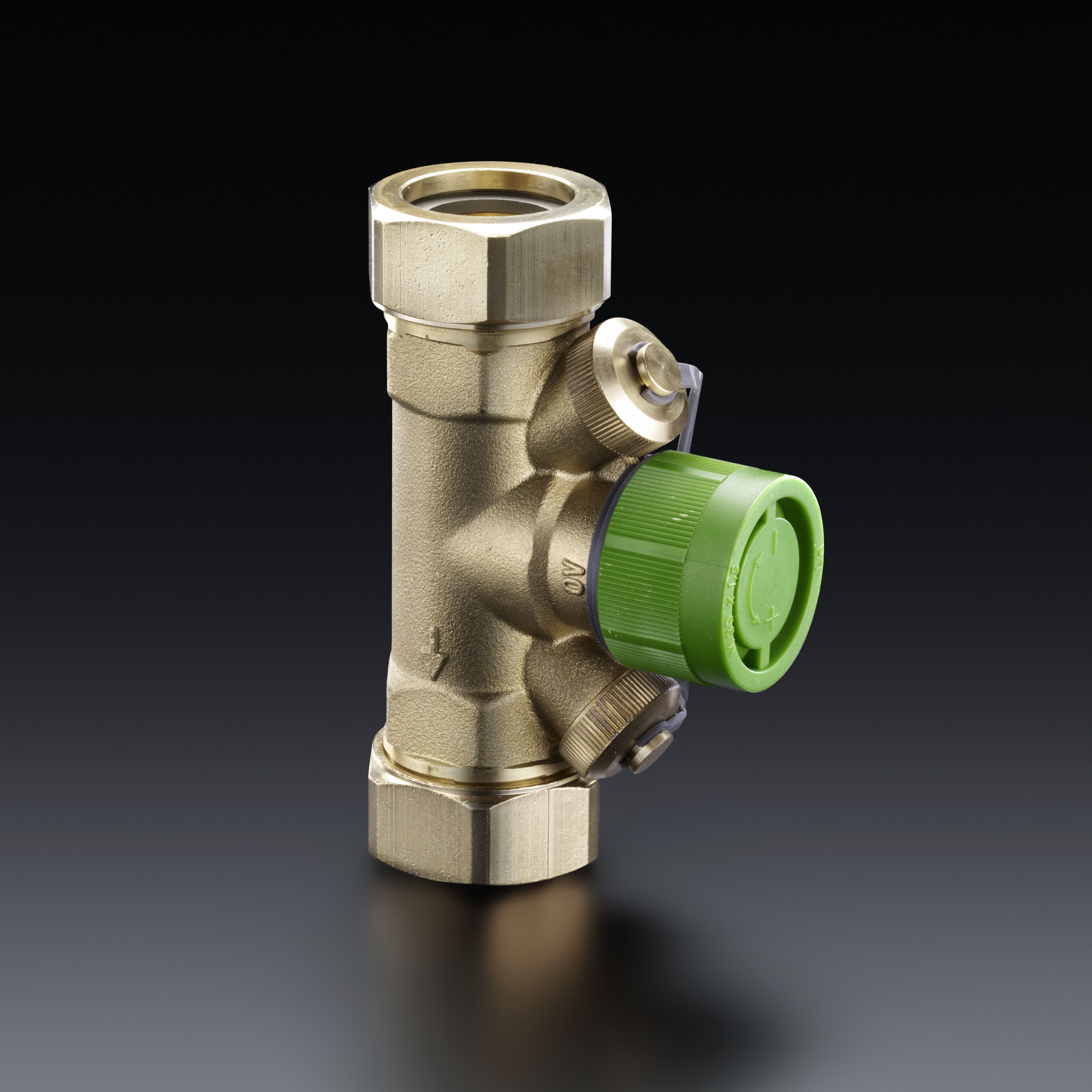

Product images

  File size
521,13 KB
  Size
2656 px x 2016 px
  Properties
  •  Clear product picture
  •  Cutout

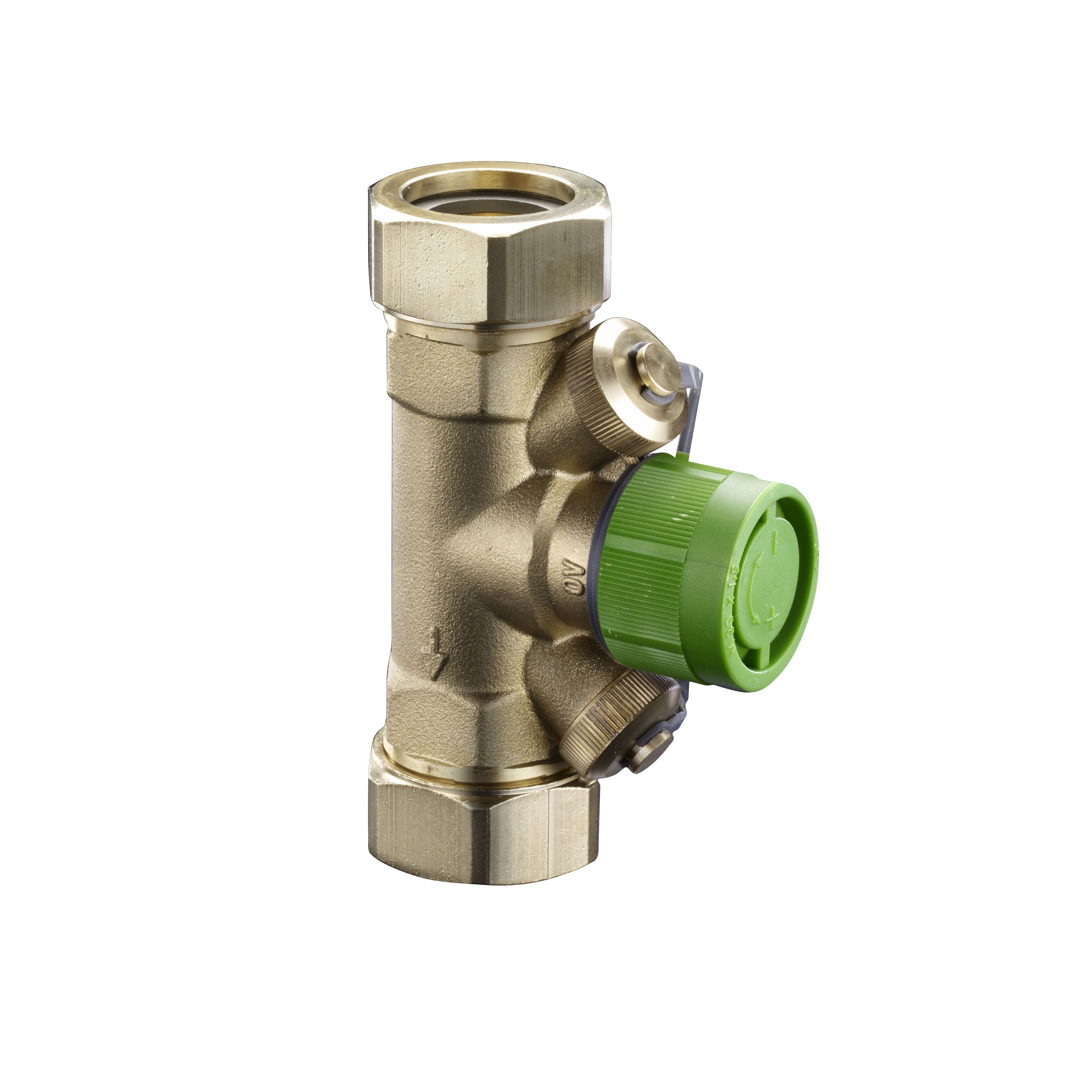

Download
  File size
294,42 KB
  Size
2639 px x 2639 px
  Properties
  •  Clear product picture
  •  Cutout

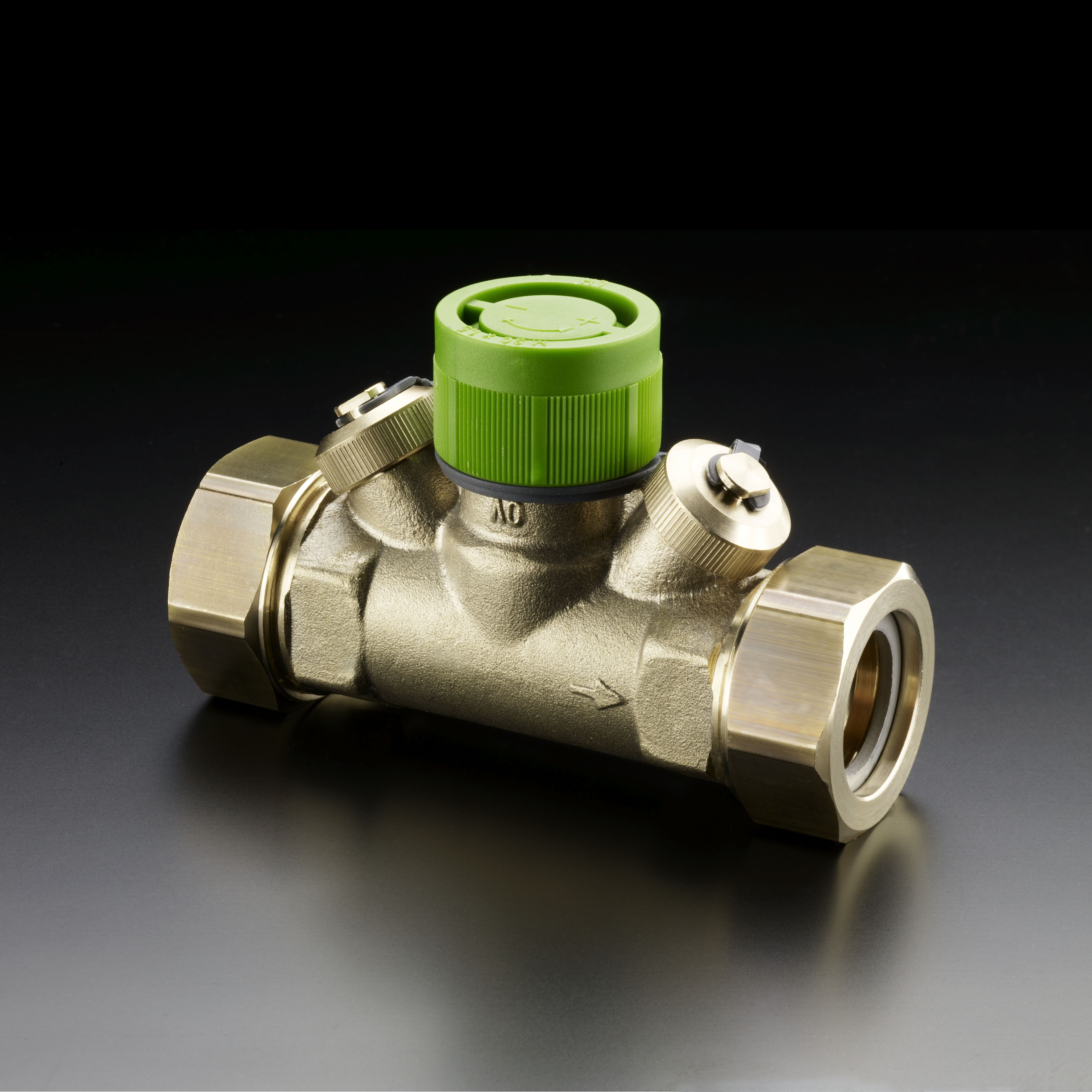

Download
  File size
1,52 MB
  Size
4892 px x 4892 px
  Properties
  •  Clear product picture
  •  Cutout

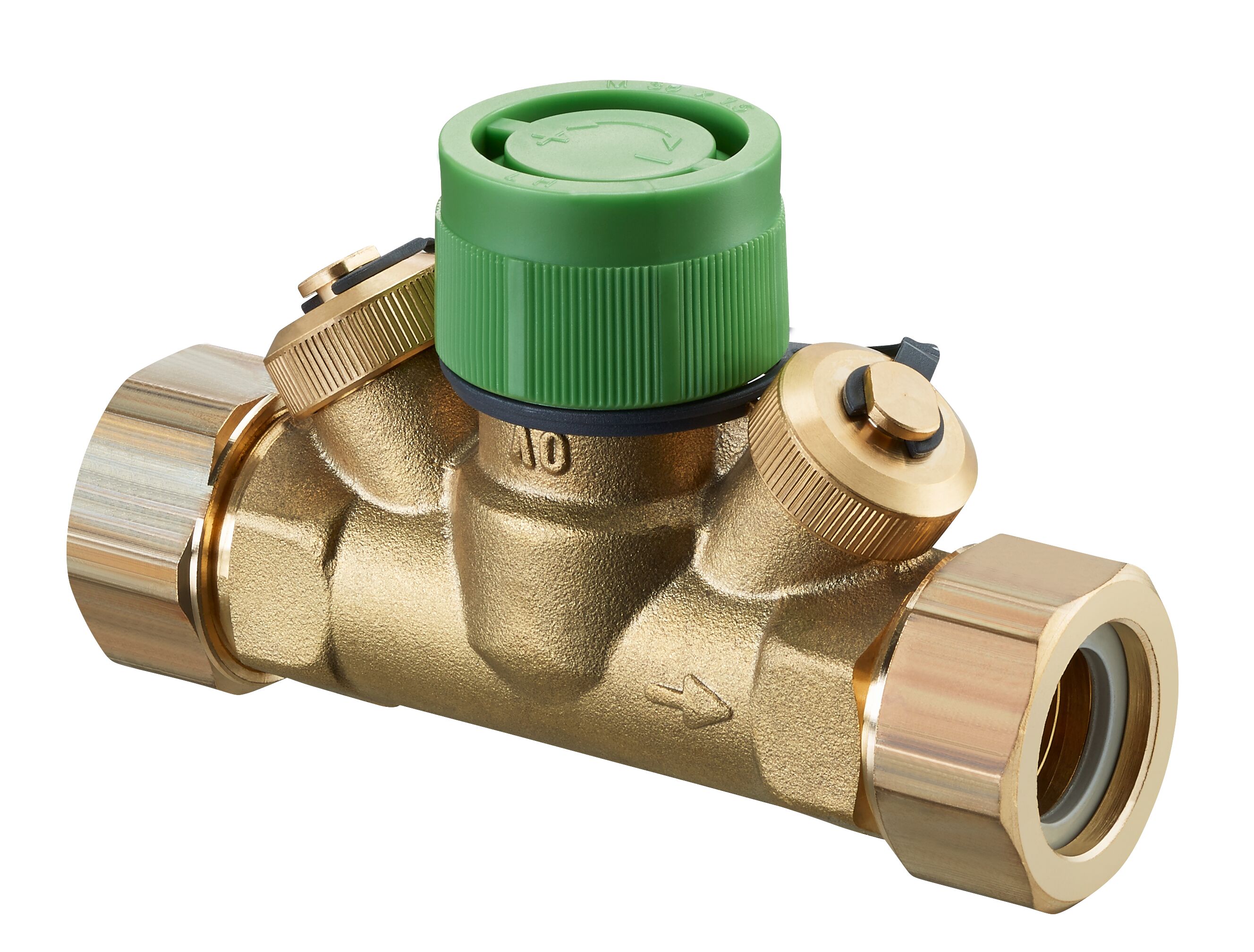

Download
  File size
1,79 MB
  Size
5700 px x 5701 px
  Properties
  •  Clear product picture
  •  Cutout
Download

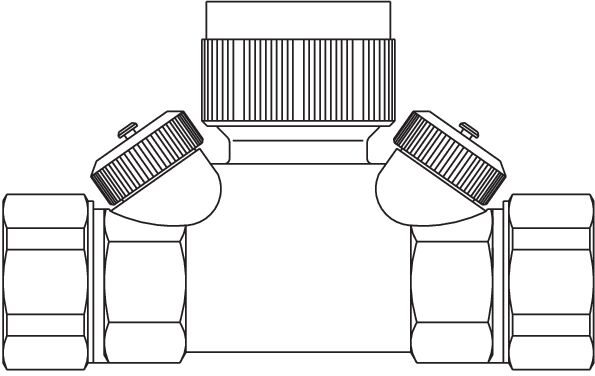

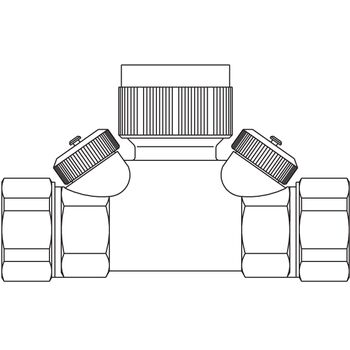

Drawings

  File size
26,75 KB
  Size
595 px x 376 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Technical data

  Name Size
"Hycocon" 2,53 MB

Brochure

  Name Size
p_gebaeudeautomation_en.pdf 3,84 MB
p_balancing_f_lv.pdf 805,43 KB

Manual

  Name Size
106866482.pdf 69,59 KB

Manufacturer declaration

Valve calculation

Valve calculation

°C
°C
Watt

ETIM

Klassifizierung
ETIM 7.0 EC011463
Regulating valve
Property Value
Surface protection Untreated
Type of control gear Static
Material quality Dezincification resistant brass (DZR)
With thermometer
Manual operation
Diameter handwheel 33.5 mm
Article compression class PN 16
Max. medium temperature (continuous) 120 °C
KIWA certified
Min. medium temperature (continuous) -10 °C
With drain
With extended measuring nipples
Thermostatic
Flange compression class PN 16
Spindle angle 90 °
With measuring connector
With impulse pipe connection
Suitable for hot tap water
Kv value 0.52 - 0.95
Suitable for tap water
Suitable for central heating water
With connection 1 coupling
With connection 2 coupling
Height operating element 33 mm
Housing material Brass
Kvs value 1.7
With position indicator
With measuring nipples
Motor-controlled
Nominal inner diameter DN 15
