DZR Brass ball valve with T-handle, with internal thread PN 30
DN 15, G ½, DZR brass


Ball valve "DZR"

brass resistant to dezincification, full flow both ports female thread according to ISO 228/1 (thread also corresponds to Rp according to EN 10226-1)

Aluminium T-handle, red.
Art.No.: 1079404
EAN: 4026755232196
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
60 mm 60 mm 33 mm 0,2 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 60 mm 60 mm 33 mm 0,2 kg
Carton 10 187 mm 137 mm 64 mm 2,09 kg
Carton 80 270 mm 260 mm 200 mm 16,96 kg

Images

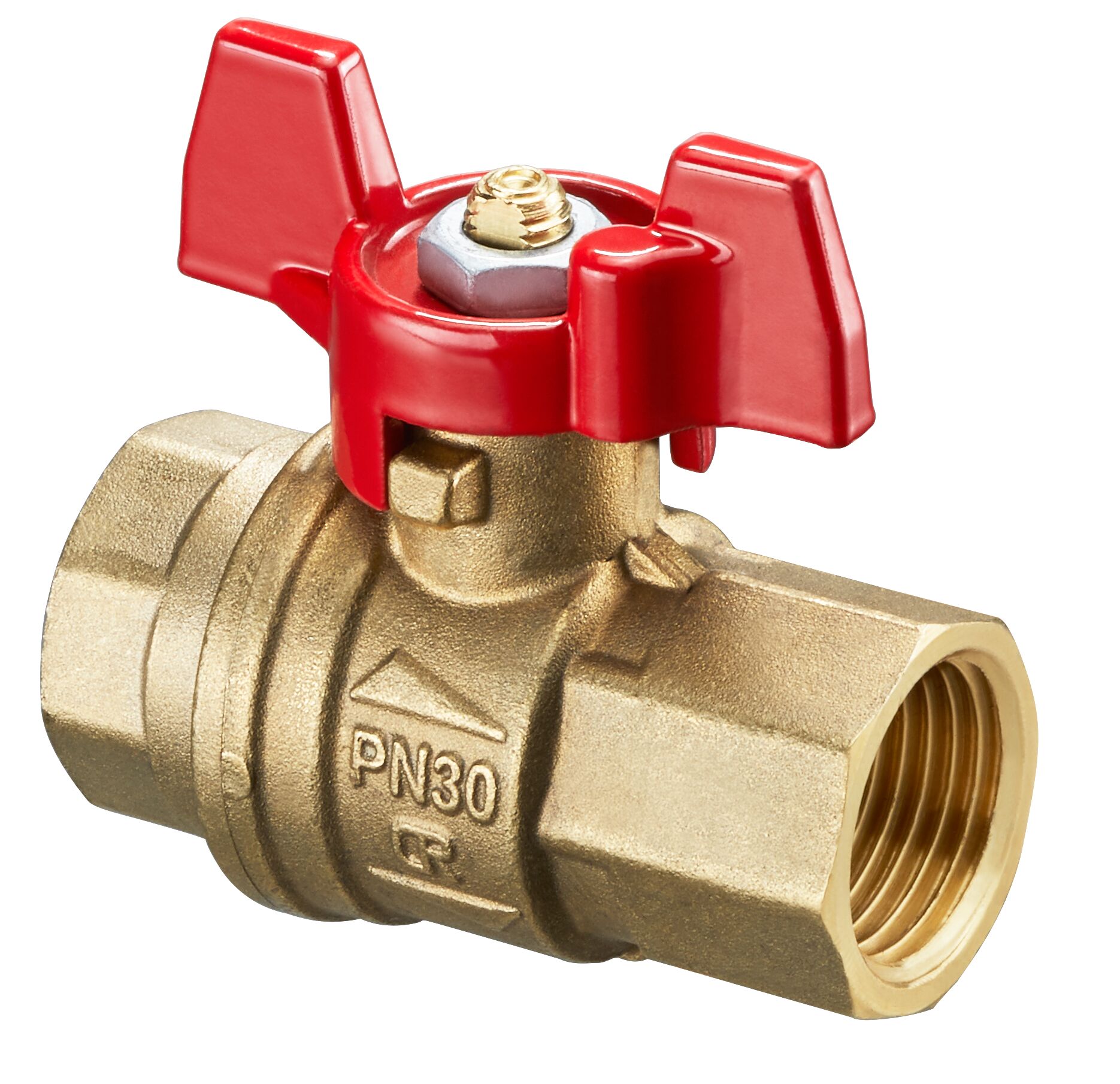

Product images

  File size
333,46 KB
  Size
1870 px x 1810 px
  Properties
  •  Clear product picture
  •  Cutout
Download

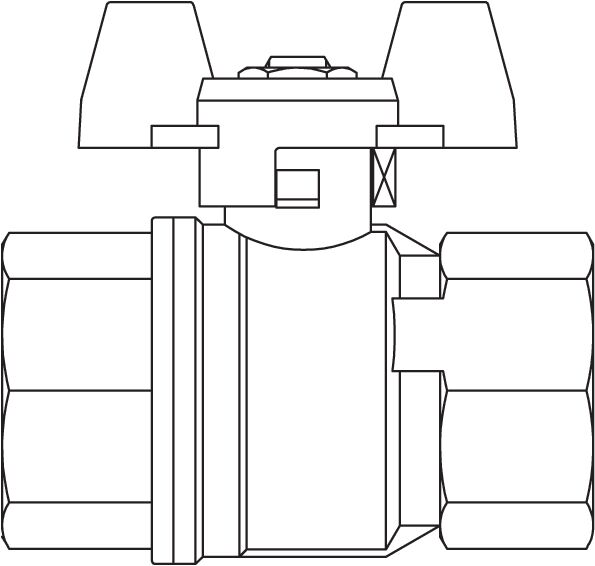

Drawings

  File size
25,07 KB
  Size
595 px x 566 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0 EC011343
Ball valve
Property Value
Model Straight
Surface protection Nickel-plated
Material quality Dezincification resistant brass (DZR)
Sealing Metal-sealing
Operation Lever handle
Max. medium temperature (continuous) 120 °C
Nominal inner diameter of connection 2 DN 15
KIWA certified
Permitted by NCP
Min. medium temperature (continuous) -10 °C
With drain
Angle of the valve 90 °
Housing construction 2-part
Full bore
Handle height 43 mm
Handgrip length 50 mm
With connection 1 coupling
With connection 2 coupling
FM quality mark
VdS quality mark
UL quality mark
ULC quality mark
LPCB quality mark
Fire-safe
DVGW quality mark
Housing material Brass
Spindle material Brass
With drain possibility (connection)
Medically clean
Nominal inner diameter connection 1 DN 15
Grease-free
Material ball seal Polytetrafluoroethylene (PTFE)
Material ball Brass
Primary spindle seal material Fluor caoutchouc (FPM/FKM)
Secondary spindle seal material Fluor caoutchouc (FPM/FKM)
