Dimensions

Dimensions of article

Length Width Height Weight
160 mm 80 mm 34 mm 0,21 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 163 mm 82 mm 42 mm 0,23 kg

Images

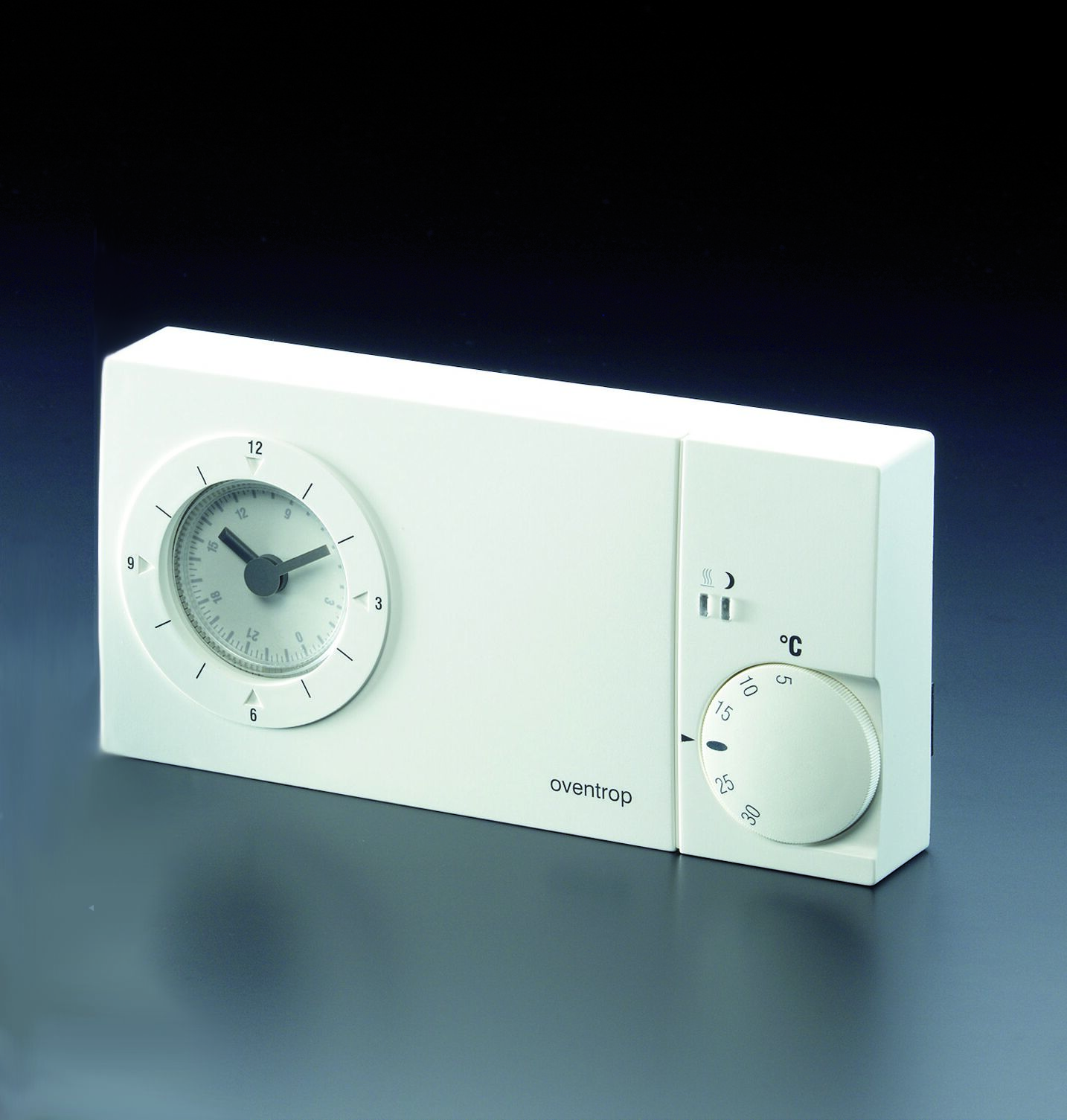

Product images

  File size
80,31 KB
  Size
1593 px x 1350 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
278,94 KB
  Size
1434 px x 1505 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
554,63 KB
  Size
2126 px x 2244 px
  Properties
  •  Clear product picture
  •  Cutout
Download

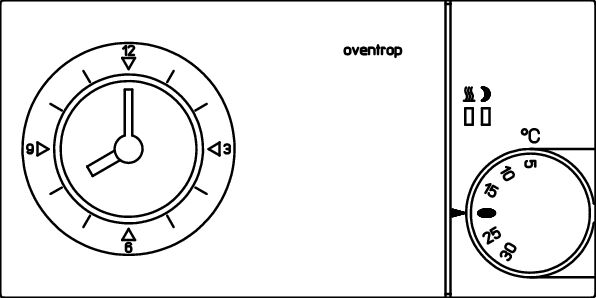

Drawings

  File size
20,04 KB
  Size
596 px x 298 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Width 160 mm
Model On/Off
Height 80 mm
Depth 34 mm
RAL-number 9010
With display
With thermal feedback
Type of power supply 230 V
Operation Turn
Explosion-proof
Type of clock Week clock
Degree of protection (IP) IP30
Sensor/feeler type Resistance sensor
Max. contact voltage 250 V
With receiver
Control characteristic PI
Weather-dependent control system
With tap water circuit
Number of heater outputs 2
Clock model Analogue
Overtime switch
Temperature readable
Optimisation
Number of switching programmes 84
Heating
Cooling
Max. contact load 4 A
Contact type Change-over contact
External sensor
