Mixed heating circuit station Regumat M3-130
DN 20, Wilo PARA 15-130/6-43/SC-9


For the connection of a mixed heating circuit. The stations include all components which are necessary for the connection of heat generators, pumps and pipework. The stations enable the heating circuit to be shut off on the supply and return sides. The check valve in the return pipe prevents incorrect circulation. Flow and return can be changed individually on site.

The stations consist of a shutoff device with two ball valves to shut off the heating circuit, two thermometers integrated in the handles to display the flow and return temperatures, a check valve to prevent incorrect circulation, a three-way mixing valve with actuator and a thermal insulation. Depending on the model, a pump ball valve is also included for easy pump replacement without draining system parts.

The Regumat stations are characterised by a time- and space-saving installation of the boilers to the pipework systems. A high degree of functional reliability is ensured by maintenance-free components and high-quality materials. The stations can be modularly extended with various accessories.

  • Version: Mixed heating circuit
  • Nominal size: DN 20
  • Connection heating circuit: G 1 external thread flat sealing
  • Connection heat generator: G 1 external thread flat sealing
  • Pump length: 130 mm
  • Pump type: Wilo PARA 15-130/6-43/SC-9
  • Supply pipe: Right
  • Optional supply pipe change: Yes
  • Length: 190 mm
  • Width: 230 mm
  • Height: 360 mm
  • Length product assembly: 315 mm
  • Centre distance: 100 mm
  • Thermal insulation: Yes
  • Universal thermal insulation: Yes
  • Wall bracket: Yes
  • Shutoff: Yes
  • Pump ball valve: No
  • Pump ball valve with drain/flush valve: No
  • Overflow insert: No
  • Check valve: Yes
  • Opening pressure check valve: 20 mbar
  • Three-way mixing valve: Yes
  • Actuator: Yes
  • Temperature control: Electronic
  • Safety temperature monitor: No
  • Kvs: 5.1
  • Recommended application  (∆T = 20K, ∆p = 100 mbar): 37 kW
  • Max. operating temperature: 95 °C
  • Max. operating pressure: 10 bar
  • Leak tested: Yes
Art.-Nr.: 1355259
EAN: 4026755387674
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes

Accessories

Installation relay for the connection of high-performance pumps (> 1A)
Item no. 1152089
Earthing clamp for Regumat DN 20 - DN 32 and Regumaq X-25/X-45/X-80
Item no. 1359995
Regtronic RM-B Multifunction controller Multifunction controller for the control of weather-compensated mixed/unmixed heating and cooling circuits as well as solar plants
Item no. 1369555
Outside temperature sensor suitable for Regtronic RH, RH-HT, EM, RM, RS and RD-W controllers, sensor element PT 1000, surface mounting
Item no. 1152099
Room temperature sensor suitable for Regtronic RH, RH-HT, EM, RM and RS controllers, sensor element PT 1000, surface mounting
Item no. 1152095
Remote control with room temperature sensor suitable for Regtronic RH, RH-HT, EM, RM and RS controllers, sensor element PT 1000, surface mounting
Item no. 1152096
Room control unit suitable for Regtronic RH, RH-HT, EM, RM and RS controllers, sensor element PT 1000, surface mounting
Item no. 1152087

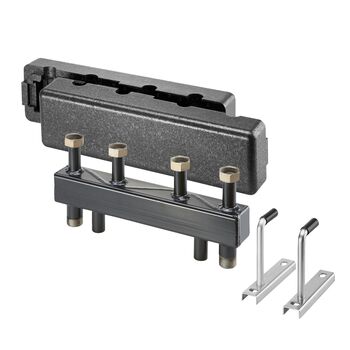

Distributor for Regumat DN 20 with thermal insulation, for 2 heating circuits, steel
Item no. 1351482
Distributor for Regumat DN 20 with thermal insulation, for 3 heating circuits, steel
Item no. 1351483
HydroFixx Hydraulic separator/distributor combination for Regumat DN 20 with thermal insulation, for 2 heating circuits, steel
Item no. 1351568
HydroFixx Hydraulic separator/distributor combination for Regumat DN 20 with thermal insulation, for 3 heating circuits, steel
Item no. 1351569
Regtronic RH Weather-compensated heating circuit controller for mixed/unmixed heating circuit with 1 x outdoor sensor, 1 x pipe contact sensor and 2 x storage cylinder sensor
Item no. 1152083
Regtronic RH Weather-compensated heating circuit controller for mixed/unmixed heating circuit with 1 x remote control including room temperature sensor, 1 x outside sensor, 1 x pipe contact sensor and 1 x storage cylinder sensor
Item no. 1152080
Actuator 24 V (0-10 V), running time 140 s, torque 5 Nm for Regumat M3 stations for heating circuits DN 20/25/32
Item no. 1350951
Actuator 24 V (floating), running time 140 s, torque 5 Nm for Regumat M3 stations for heating circuits DN 20/25/32
Item no. 1350952
Actuator 230 V, running time 140 s, torque 5 Nm for Regumat M3 stations for heating circuits DN 20/25/32, with fixed flow temperature value control
Item no. 1351055
Actuator 230 V (floating), running time 35 s, torque 5 Nm for Regumat M3 DN 20/25/32
Item no. 1361098

OV Spare Parts Finder

Dimensions

Dimensions of article

Length Width Height Weight
190 mm 230 mm 360 mm 5,14 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 390 mm 280 mm 235 mm 5,78 kg
Europallet 30 1200 mm 800 mm 1325 mm 188,31 kg
Europallet 40 1200 mm 800 mm 1280 mm 254,28 kg

BIM/CAD

Download CAD-Formats
Format Size Download
Revit 816 KB
Download
DWG (3D) 437,62 KB
Download
DWG 52,72 KB
Download
DXF (3D) 3,16 MB
Download
DXF 271,44 KB
Download
STEP 958,35 KB
Download
OBJ / MTL 278,85 KB
Download

Notice for CAD viewer

In order to open the CAD-Viewer and Download CAD-Data please onetime download and install the CAD-App.

Images

Product images

  File size
291,61 KB
  Size
1517 px x 1179 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
72,44 KB
  Size
595 px x 931 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Characteristic curves

Loss of pressure

Please wait a moment...
Characteristic line is queried

ETIM

Klassifizierung
ETIM 7.0
Property Value
Width 230 mm
Height 360 mm
Depth 190 mm
Connection 1 inch
With thermal insulation
With thermometer
Connection to Heating circuit
With circulation pump
With safety valve
With pressure gauge
With non-return valve
With filling- and draining valve
Max. flow rate 5.1 m³/h
With connection expansion reservoir
With automatic de-aeration
