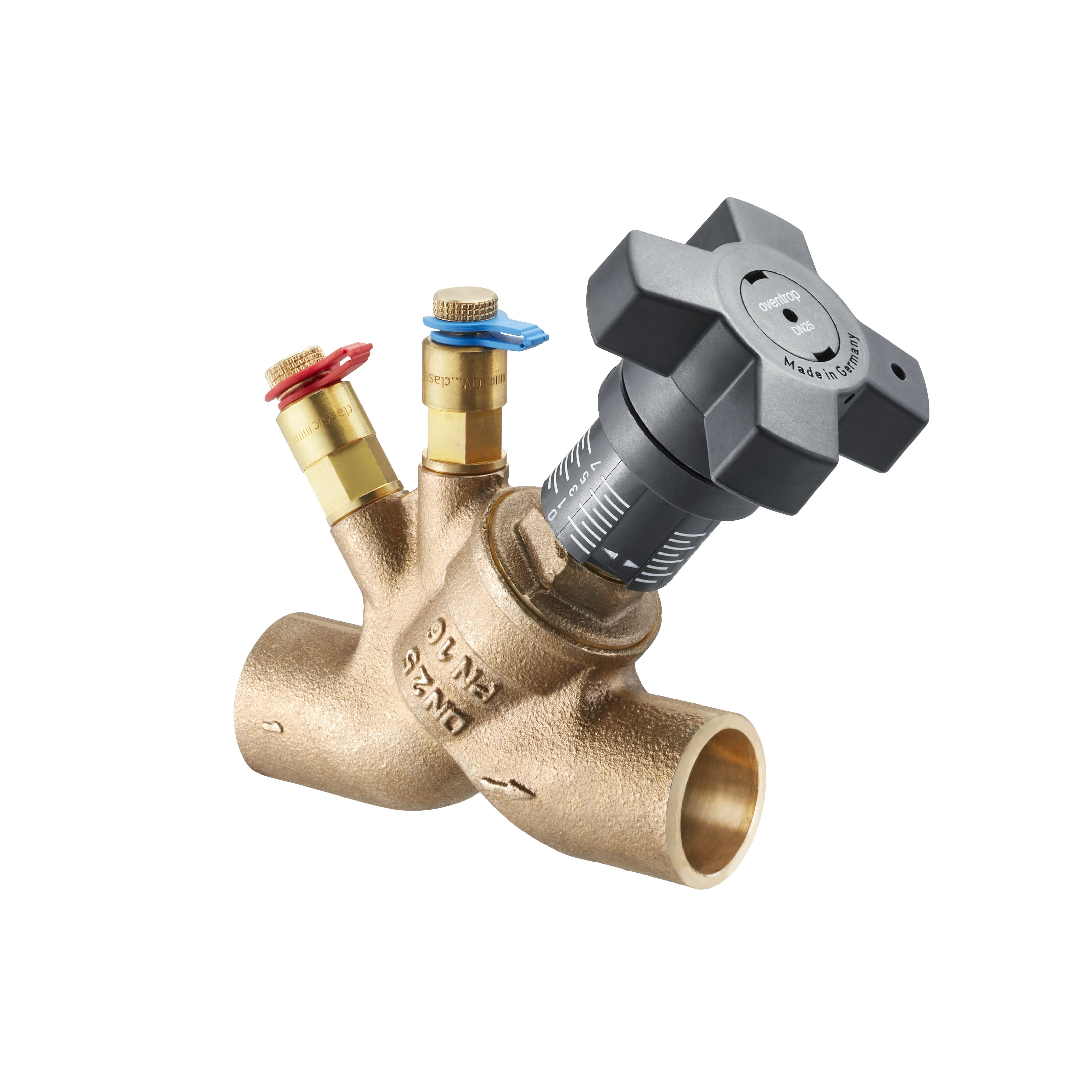

HydroControl VTR Calibrated Balancing Valve
Solder end

Please wait!

Precision balancing valve for the hydronic balancing of pipelines in closed central heating and cooling systems. Optional flow measurement, for example with the OV-DMC3 measuring system. Installation in supply or return.
Flow optimised Y-pattern housing. Valve insert with continuous, superfine presetting and non rising handwheel. Externally visible presetting value. Reproducible, lockable and sealable presetting position as standard. All functions operable from handwheel side. Fitted with two measuring valves as standard. Valve housing and all parts with contact to the flow made of red bronze, dezincification resistant brass, PTFE or EPDM. Maintenance free, double spindle sealing.
Inlet and outlet with solder ends.

Size: 1 1/4” (DN32)
Connection: 1 1/4“ solder ends
Cv value: 22.7

Specifications
- Operating temperature: -4…302°F (-20…150°C)
- Operating pressure: max. 235 psi (16 bar)

Functions
- Regulate
- Presetting
- Shutoff
- Measuring

Materials
- Housing: red bronze, untreated
- Insert and measuring valves: DZR brass, untreated
- O-ring seals: EPDM
- Seat seal: PTFE
- Handwheel assembly, protection caps: PA6
Art.No.: 1060554
EAN: 4026755496017
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.
Download GAEB


Download tender text

Dimensions

Dimensions of article

Length Width Height Weight
165 mm 70 mm 160 mm 1,31 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 0 mm 0 mm 0 mm 0 kg
Unknown 5 325 mm 230 mm 160 mm 0 kg
