Name: Wall connection set (1-fold) for E thermostatic valves, DN 15, white,
Brand: OVENTROP
SKU: 1169563

Description Dimensions Images Documents ETIM

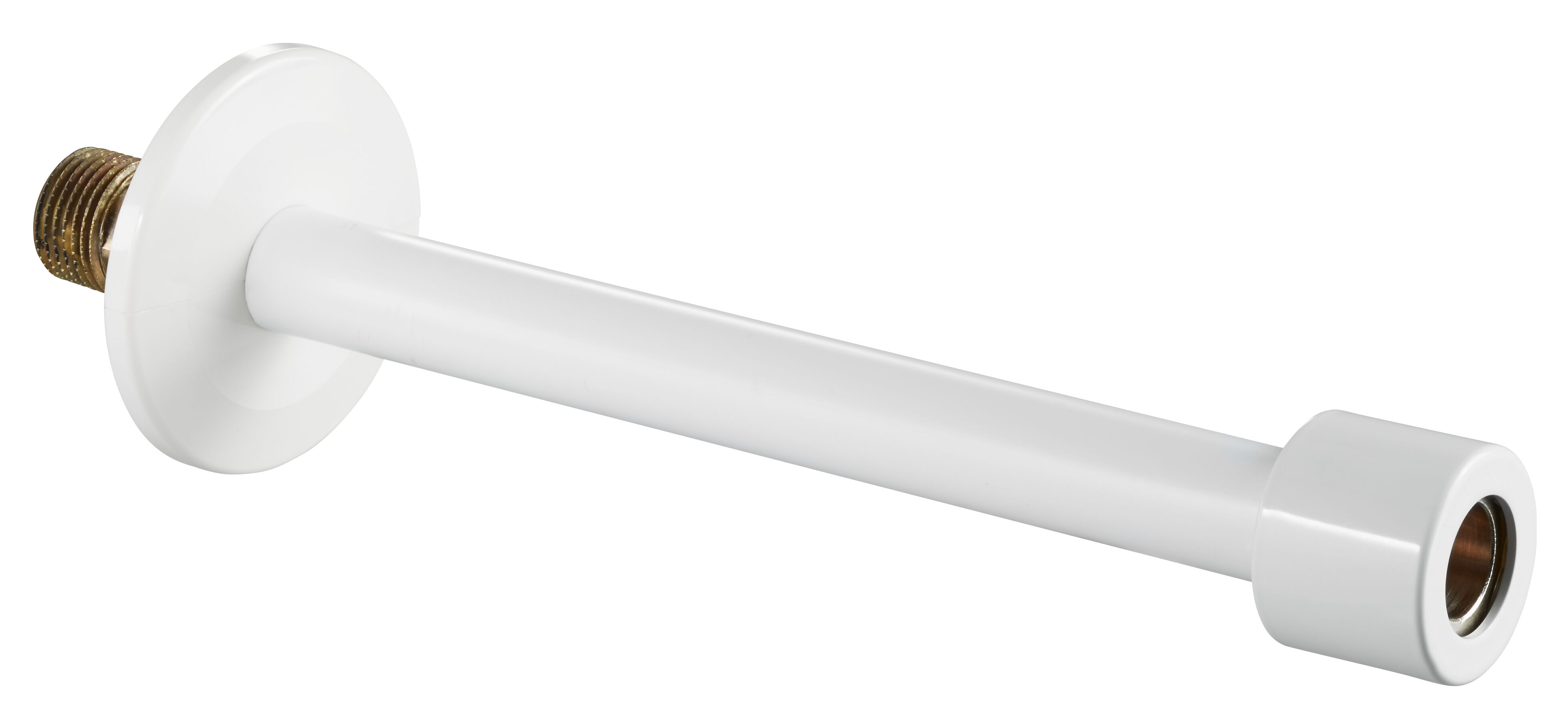

Wall connection set (1-fold)
for E thermostatic valves, DN 15, white,

Wall connection set for E thermostatic valves

For wall installation of exclusive radiator valves.

Consisting of pipe Ø 15 mm, L = 150 mm, R ½ ET according to EN 10226 and compression fittings.

Art.No.: 1169563
EAN: 4026755286564
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Download GAEB

Download tender text

Is accessory of

E Thermostatic valve, angle DN 15, Rp ½ x R ½, PN 10, white powder coated
Item no. 1163062

E Thermostatic valve, straight DN 15, Rp ½ x R ½, PN 10, white powder coated
Item no. 1163162

E Thermostatic valve, reversed angle DN 15, Rp ½ x R ½, PN 10, white powder coated
Item no. 1163262

E Thermostatic valve, double angle left DN 15, Rp ½ x R ½, PN 10, white powder coated
Item no. 1163462

E Thermostatic valve, double angle right DN 15, Rp ½ x R ½, PN 10, white powder coated
Item no. 1163463

Dimensions

Dimensions of article

Length	Width	Height	Weight
215 mm	65 mm	33 mm	0,18 kg

Packing units

Type	Qty.	Length	Width	Height	Weight
Carton	1	220 mm	95 mm	70 mm	0,26 kg
Unknown	400	1200 mm	800 mm	950 mm	183,6 kg
