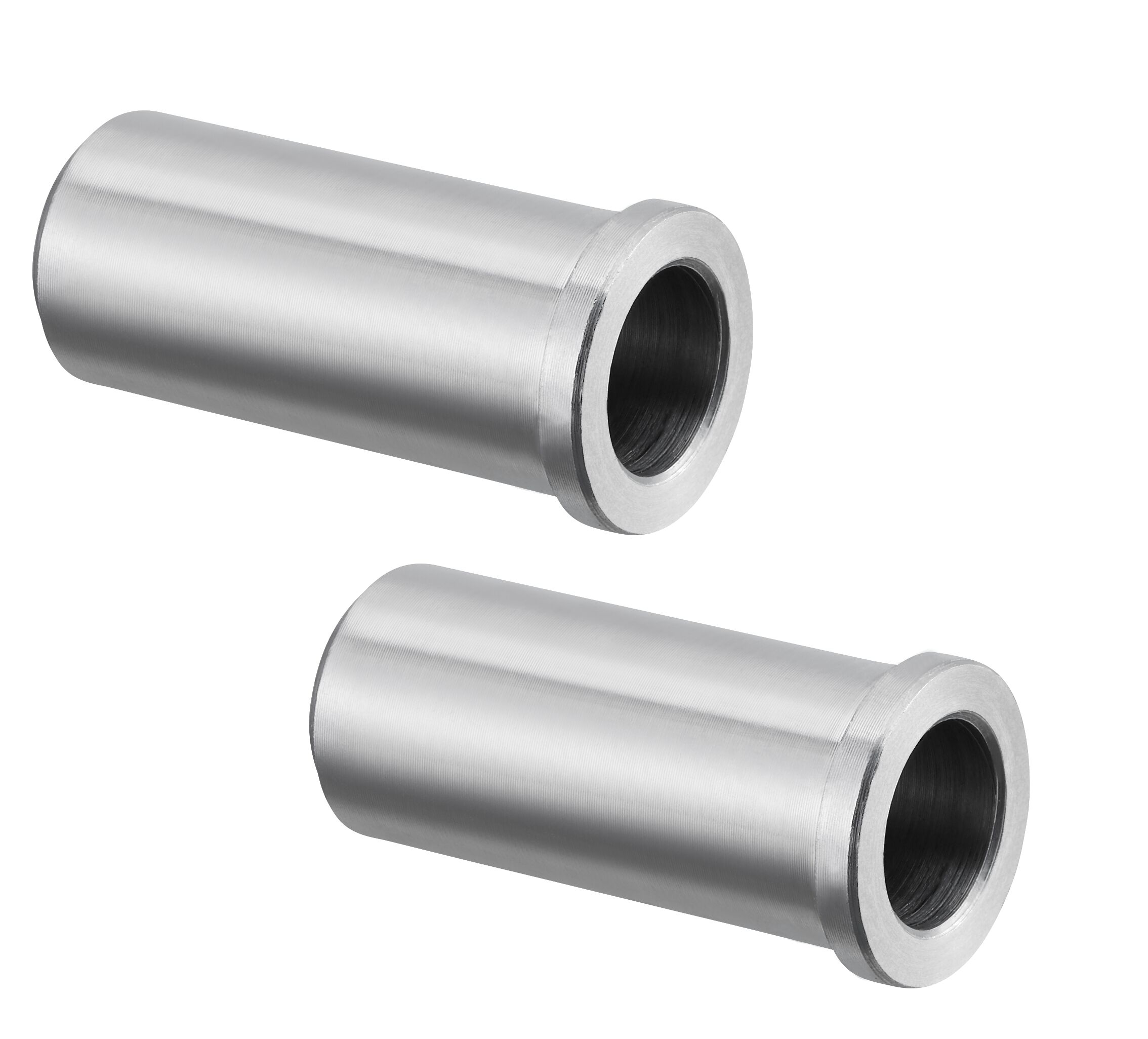

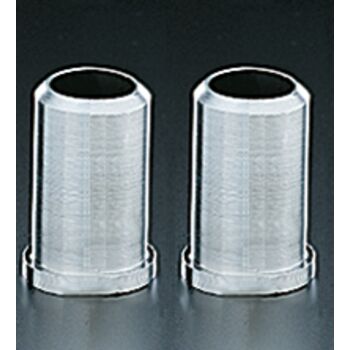

Weldable tailpipe
2-fold, for valves with flat sealing external thread, DN 15


The three-way conversion valves are suitable for one pipe heating systems with forced circulation and are often used in housing construction in the new Federal states. The body is made of nickel plated bronze/brass. The valve insert is made of brass and the spindle and spring of stainless steel. The valve disc has a soft seal. The pipe connections are designed with flat-sealing external thread. When the valve closes, the flow through the radiator is reduced and the flow through the bypass is increased and vice versa. The three-way conversion valves are supplied with a plastic protection cap, which serves as protection and for manual operation during the construction period. The subsequent temperature control is carried out by a thermostat. All thermostats with connection thread M 30 x 1.5 can be used.
Art.No.: 1060592
EAN: 4026755125283
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
50,2 mm 48 mm 24 mm 0,12 kg

Packing units

Type Qty. Length Width Height Weight
Bag 1 55 mm 60 mm 45 mm 0,13 kg
Carton 10 125 mm 140 mm 96 mm 1,31 kg
Unknown 3840 1200 mm 800 mm 950 mm 581,89 kg
