Base mat NP-11 for Cofloor base mat system
1.44 x 0.84 m = 1.20 m², made of EPS, thermal conductivity group 035, insulation 11 mm

Please wait!

The Cofloor base mat system consists of base mats and pipes. This system can be used for new construction and renovation. The base mats have a suitable thermal insulation made of PS (polystyrene) or EPS (expanded polystyrene) in various thicknesses (except for item no. 1402130: only foil), which also serves as impact sound insulation. The special geometry of the nubs (grid dimension 6 cm) allows easy installation of 14 mm, 16 mm and 17 mm Copex PE-Xc and Copert PE-RT plastic pipes and also Copipe HSC multi-layer composite pipes.

The handy base mats know practically no waste. They can be laid economically and in a user-friendly manner in both small, angled and large-area rooms. The PE foil of the optional edge insulating strips and the overlapping of the base mats at the edge of the board create a dense surface so that cement screed or liquid screed can be applied without further sealing. This reliably prevents a sound bridge to the raw concrete.

There are four different base mats to choose from. The special geometry of the nubs increases the impact resistance of the nubs during pipe installation and ensures that the heating or cooling pipes are held securely in place. The coordinated components enable fast installation even with one-man installation. Particularly suitable for standard-compliant cement or liquid screed.
Art.No.: 1402330
EAN: 4026755446685
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.
Download GAEB


Download tender text

Replaces

Base mat NP-11 for Cofloor base mat system 1.0 x 1.0 m, made of EPS, thermal conductivity group 035, insulation 11 mm
Item no. 1402310

Accessories

Edge insulating strip with foil for sealing to the laying system, height: 150 mm, thickness: 10 mm, roll length: 25 m
Item no. 1402090
Expansion joint profile height: 120 mm, thickness: 10 mm, length: 1.20 m
Item no. 1402091
Edge insulating strip with self-adhesive foil for sealing to the laying system, self-adhesive on the wall side, height: 150 mm, thickness: 10 mm, roll length: 25 m
Item no. 1402191
Marker point for measuring screed humidity made of plastic, set = 5 pieces
Item no. 1409090
Protective pipe made of LDPE, 300 mm, slotted
Item no. 1501184

Dimensions

Dimensions of article

Length Width Height Weight
1470 mm 870 mm 33 mm 1,4 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 1520 mm 900 mm 33 mm 1,4 kg
Unknown 8 1520 mm 900 mm 180 mm 12,4 kg
Unknown 96 1500 mm 900 mm 2270 mm 171,3 kg

Images

Product images

  File size
1,02 MB
  Size
4067 px x 4067 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Drawings

  File size
32,27 KB
  Size
405 px x 250 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
34,76 KB
  Size
425 px x 425 px
  Properties
  •  Clear product picture
  •  Cutout
Download

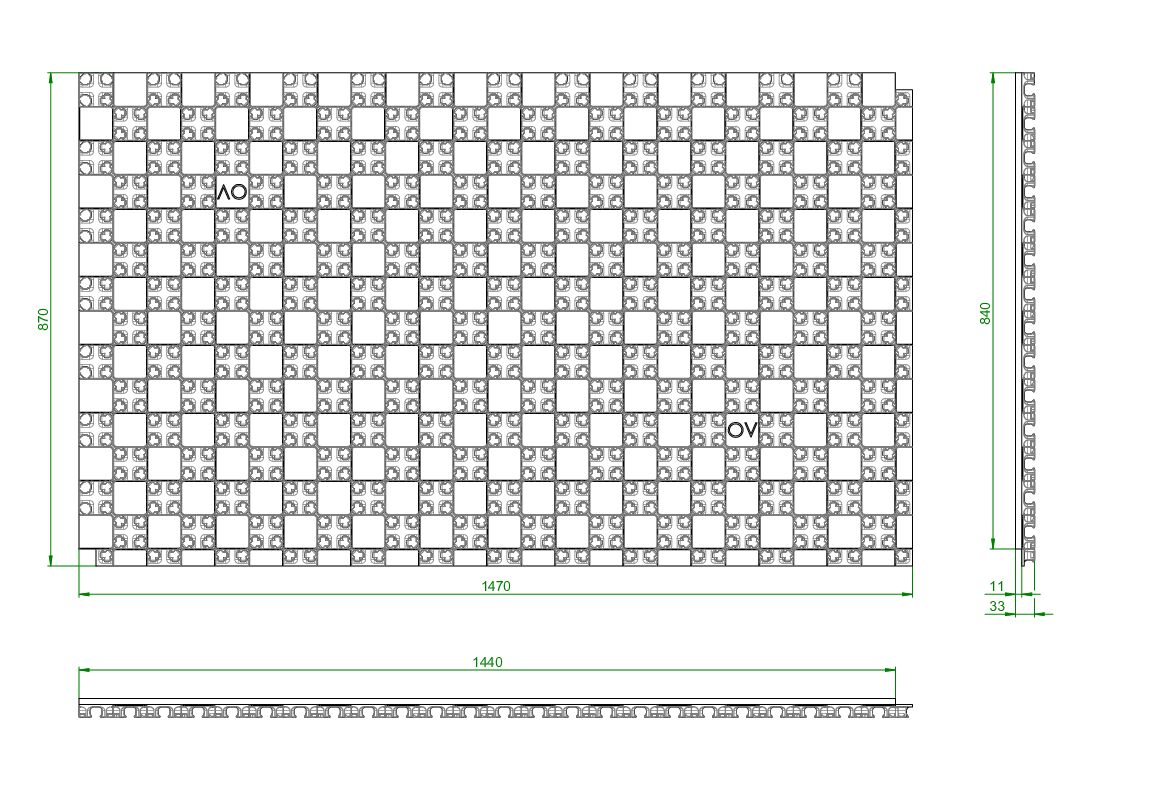

Dimensional drawings

  File size
285,33 KB
  Size
1155 px x 809 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0 EC011767
Insulation board, floor heating
Property Value
Width 840 mm
Length 1.44 mm
Material Polystyrene
Suitable for pipe diameter 14 - 17
Insulation thickness 11 mm
Max. load 45 kN/m²
Studded panel
Tacker plate
Inlay plate
With foil
Heat resistance Rd 0.314 W/(m².K)
Thickness including studs Other
