Set with AQ thermostatic valve
DN 10, angle, with AQ thermostatic valve, Combi 2 radiator lockshield valve and Uni LH thermostat, white


Thermostatic valve set
angle version, consisting of:

AQ thermostatic valve with Q-Tech for automatic hydronic balancing
Combi 2 radiator lockshield valve
Uni LH thermostat
Art.No.: 1703063
EAN: 4026755448740
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
125 mm 100 mm 55 mm 0,52 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 130 mm 105 mm 65 mm 0,61 kg
Unknown 10 335 mm 235 mm 180 mm 6,36 kg

Images

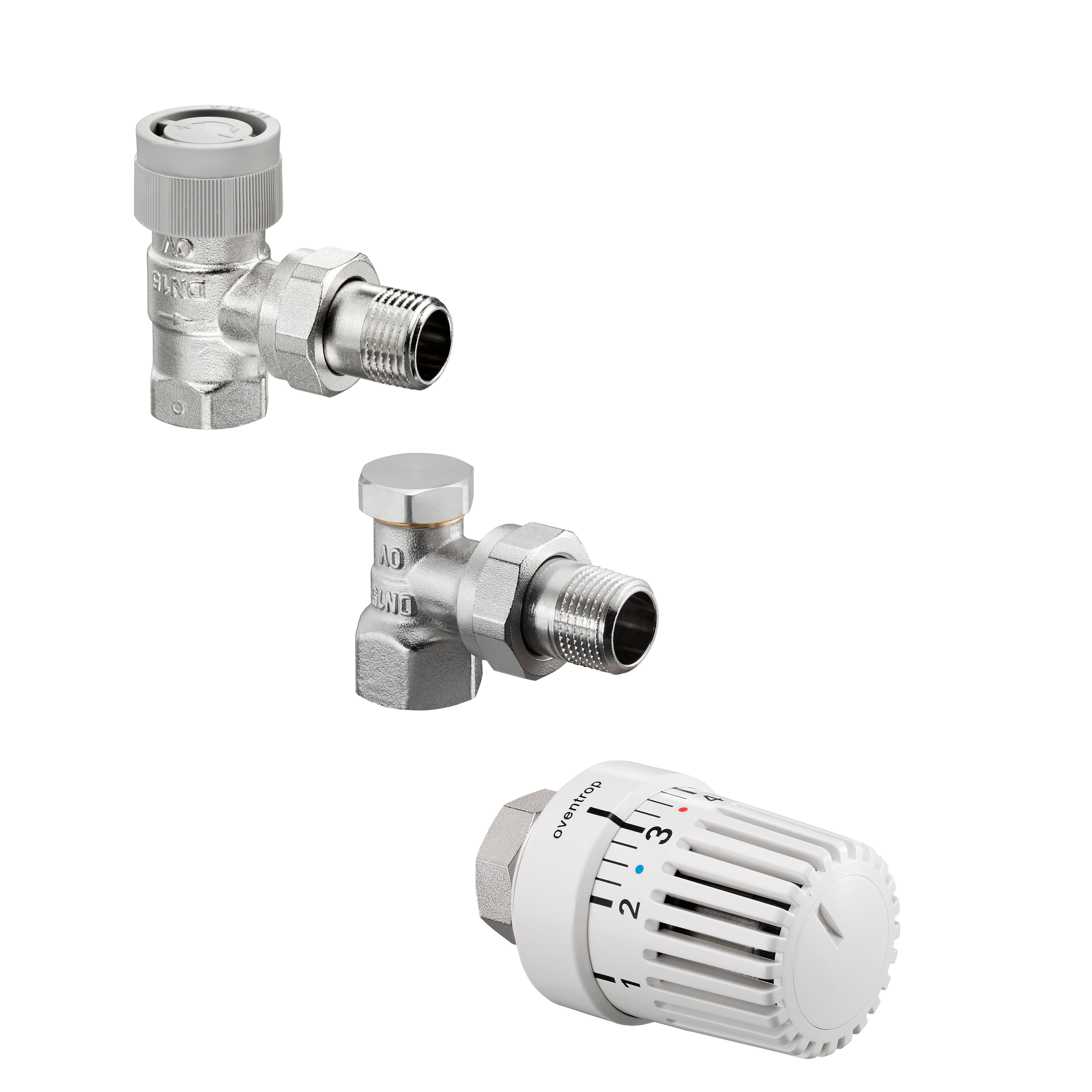

Product images

  File size
646,46 KB
  Size
4407 px x 4407 px
  Properties
  •  Clear product picture
  •  Cutout
Download

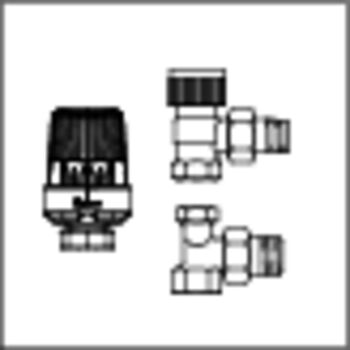

Drawings

  File size
4,1 KB
  Size
82 px x 82 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0 EC010104
Radiator connection combination with valve and bottom block
Property Value
Operation Thermostatic element
Connection direction, pipes Towards wall
Suitable for two pipe system
Size of pipe connection 3/4 inch Euro conus
Suitable for filling/drain tap
Size of thermostatic adjustment element M30 x 1.5
Radiator valve model Straight with bend
Thermostatically prepared
Suitable for one pipe system
