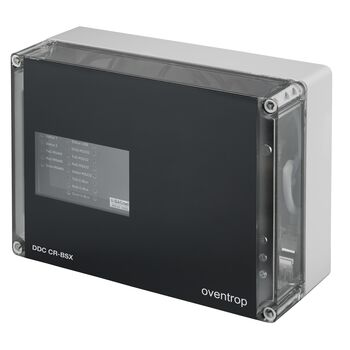

DDC CR-BSX Control unit
with bus technology, for the connection of up to 31 C-bus field modules, operating/bus voltage 24 V AC, frequency 50 Hz, surface mounting


DDC CR-BSX control unit

The DDC CR-BSX control unit offers a system solution for combined temperature control with decentralised conventional thermostat sensor technology (liquid sensor) and centralised temperature control using bus-coupled sensors, actuators and thermostats.

The integrated web server allows access to the system by means of a PC and standard web browser (e.g. Mozilla Firefox). Here, settings can be made to the parameters of the system (e.g. time profiles with setback values, user profiles etc.) via the user interface and trend data and the current status can be queried.
The system can be integrated into the building management system (BMS) via BACnet IP.
to be discontinued
Art.No.: 1153100
EAN: 4026755453362
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.

Dimensions

Dimensions of article

Length Width Height Weight
260 mm 175 mm 100 mm 1,74 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 300 mm 205 mm 125 mm 1,91 kg

Images

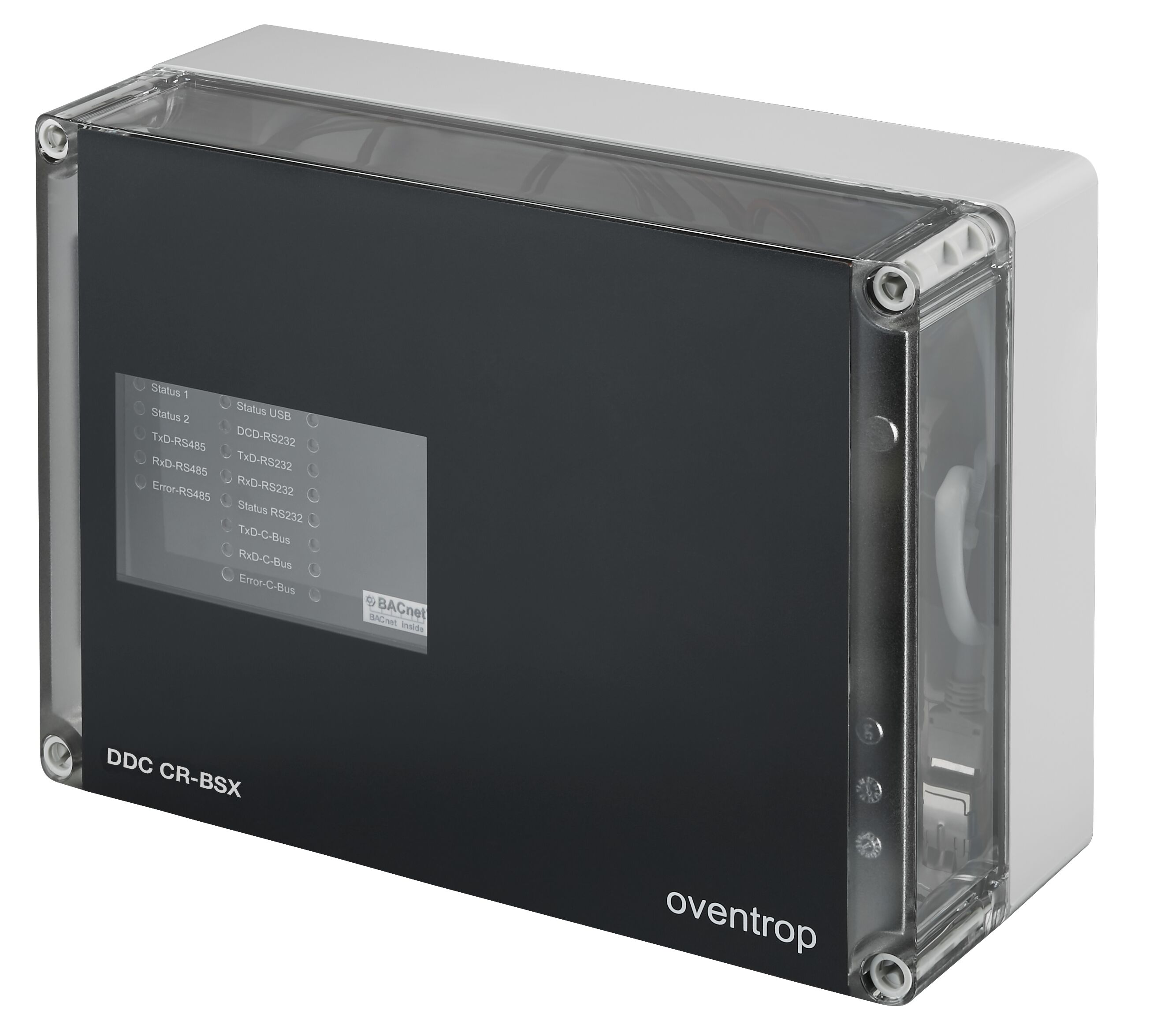

Product images

  File size
242,71 KB
  Size
2625 px x 2350 px
  Properties
  •  Clear product picture
  •  Cutout
