Válvula "Serie A" de ida para  SE RETIRA DE LA PRODUCCIÓN
regulación térmica, DN15, Dg


OVENTROP-Válvula "Serie A" de ida para regulación térmica, DN15, Dg

Material: latón

DN: DN 15

Presión nominal: 10 bar

Artículo: 1400164
EAN: 4026755188158
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical modifications without notice.
Dimensión del artículo
Longitud Anchura Altura Peso
97 mm 65 mm 34 mm 0,3 kg
Unidades de embalaje
Tipo Cantidad Longitud Anchura Altura Peso
Bolsa 1 97 mm 65 mm 34 mm 0,31 kg
Caja de cartón 25 295 mm 285 mm 115 mm 7,95 kg
Europallet 2000 1200 mm 800 mm 1100 mm 625 kg

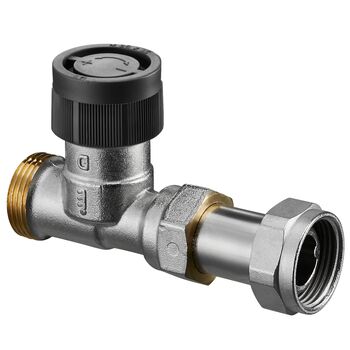

Fotos del producto
  Tamaño del archivo
172,09 KB
  Tamaño
1488 px x 1320 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
  Tamaño del archivo
745,34 KB
  Tamaño
3543 px x 3543 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
  Tamaño del archivo
804,08 KB
  Tamaño
3543 px x 3543 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
Dibujos
  Tamaño del archivo
8,38 KB
  Tamaño
325 px x 195 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
Classification
ETIM 7.0 EC010136
Radiator stop valve
Característica Valor
Model Tailpiece/Outer thread
Shape Straight
Surface protection Nickel-plated
Colour button Black
Operation Thermostatic with button
Automatic flow control
With dust cap
With compression set
Suitable for single pipe system
Suitable for two pipe system
Size of pipe connection 3/4 inch
Size of radiator connection 3/4 inch (20)
Shortened construction length
Reverse direction of flow
Size of thermostatic adjustment element M30 x 1.5
Can be preset
Housing material Brass
Thermostatically prepared
With bent tailpiece
