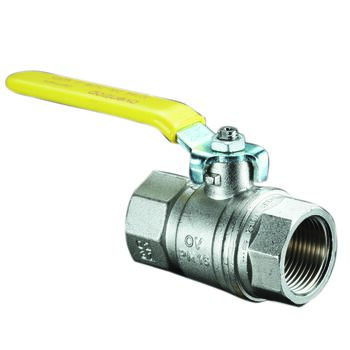

Válvula de bola de corte "Optigas", MOP5  SE RETIRA DE LA PRODUCCIÓN
1" rosca hembra, niquelado, DN25


OVENTROP-Válvula bola cierre "Optigas" DN25, 1"RH, niquelado

Material: latón
Superficie: niquelado

DN: 25 DN

Artículo: 3016408
EAN: 4026755262858
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical modifications without notice.
Dimensión del artículo
Longitud Anchura Altura Peso
160 mm 74 mm 48 mm 0,6 kg
Unidades de embalaje
Tipo Cantidad Longitud Anchura Altura Peso
Bolsa 1 160 mm 74 mm 48 mm 0,6 kg
Caja de cartón 25 295 mm 205 mm 170 mm 15,27 kg
Fotos del producto
  Tamaño del archivo
168,6 KB
  Tamaño
1177 px x 925 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
  Tamaño del archivo
281,15 KB
  Tamaño
1465 px x 1465 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
Dibujos
  Tamaño del archivo
9,39 KB
  Tamaño
440 px x 215 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
Classification
ETIM 7.0 EC011015
Gas valve
Característica Valor
Surface protection Nickel-plated
Connection 1 Inner thread conical BSPT-Rc (ISO 7-1)
Connection 2 Inner thread conical BSPT-Rc (ISO 7-1)
Operation Lever handle
With interlocking
Right-angled model
Nominal inner diameter of connection 2 1 inch (25)
Handle/hand wheel height 54 mm
Length of handle/diameter of hand wheel 120 mm
Sealing unit
With connection 1 coupling
With connection 2 coupling
DVGW quality mark
Housing material Brass
Nominal inner diameter connection 1 1 inch (25)
EN 331 mark
