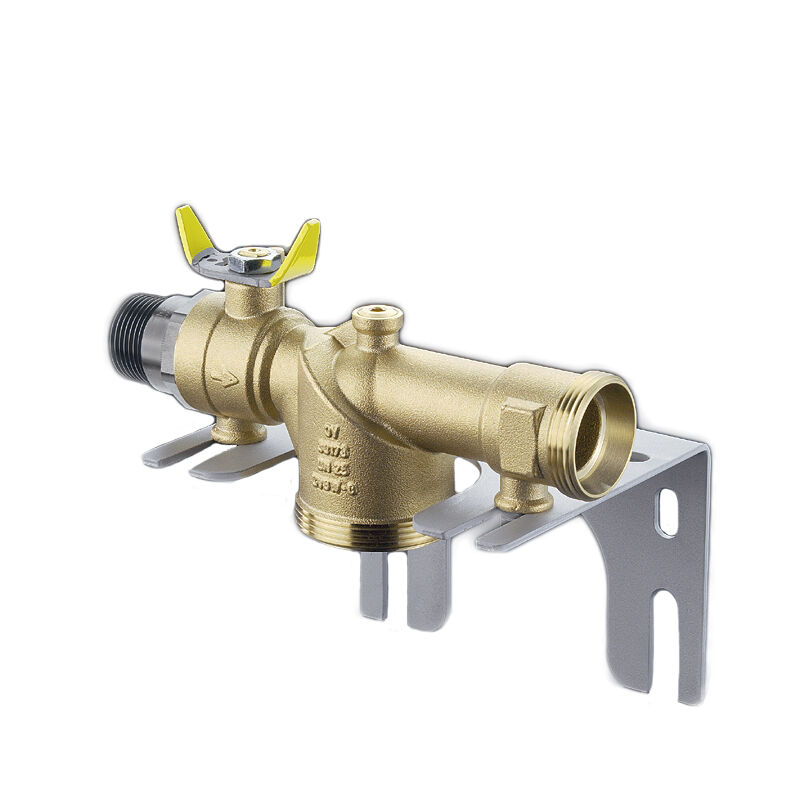

Válvula de bola "Optigas" para contador de gas monotubo  SE RETIRA DE LA PRODUCCIÓN
PN4, DN25, 1"


OVENTROP-Válv.bola contador monotub. "Optigas", DN25, RM , c. TAE, 70-130mm

Artículo: 3017372
EAN: 4026755248463
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical modifications without notice.
Dimensión del artículo
Longitud Anchura Altura Peso
208 mm 140 mm 127 mm 2,24 kg
Unidades de embalaje
Tipo Cantidad Longitud Anchura Altura Peso
Caja de cartón 1 240 mm 195 mm 170 mm 2,5 kg
Fotos del producto
  Tamaño del archivo
51,16 KB
  Tamaño
808 px x 808 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
  Tamaño del archivo
1,09 MB
  Tamaño
4709 px x 2863 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
  Tamaño del archivo
59,95 KB
  Tamaño
808 px x 808 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
Dibujos
  Tamaño del archivo
25,75 KB
  Tamaño
595 px x 505 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
Classification
ETIM 7.0 EC011015
Gas valve
Característica Valor
Surface protection Untreated
Connection 1 Outer thread conical BSPT-R (ISO 7-1)
Connection 2 Outer thread cylindrical BSPP-G (ISO 228-1)
Operation Lever handle
With interlocking
Right-angled model
Nominal inner diameter of connection 2 1 3/8 inch
Handle/hand wheel height 20 mm
Length of handle/diameter of hand wheel 75 mm
Sealing unit
With connection 1 coupling
With connection 2 coupling
DVGW quality mark
Housing material Brass
Nominal inner diameter connection 1 1 inch (25)
EN 331 mark
