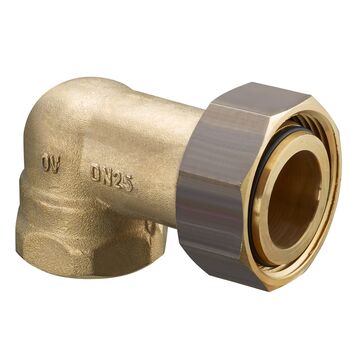

Codo roscado, latón  SE RETIRA DE LA PRODUCCIÓN
rosca hembra, DIN2999, 1 3/8 x 1


OVENTROP-Codo roscado, latón rosca hembra, DIN2999, 1 3/8 x 1

Artículo: 3019365
EAN: 4026755248470
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical modifications without notice.
Dimensión del artículo
Longitud Anchura Altura Peso
88 mm 60 mm 52 mm 0,43 kg
Unidades de embalaje
Tipo Cantidad Longitud Anchura Altura Peso
Bolsa 1 88 mm 60 mm 52 mm 0,44 kg
Caja de cartón 10 195 mm 160 mm 135 mm 4,51 kg

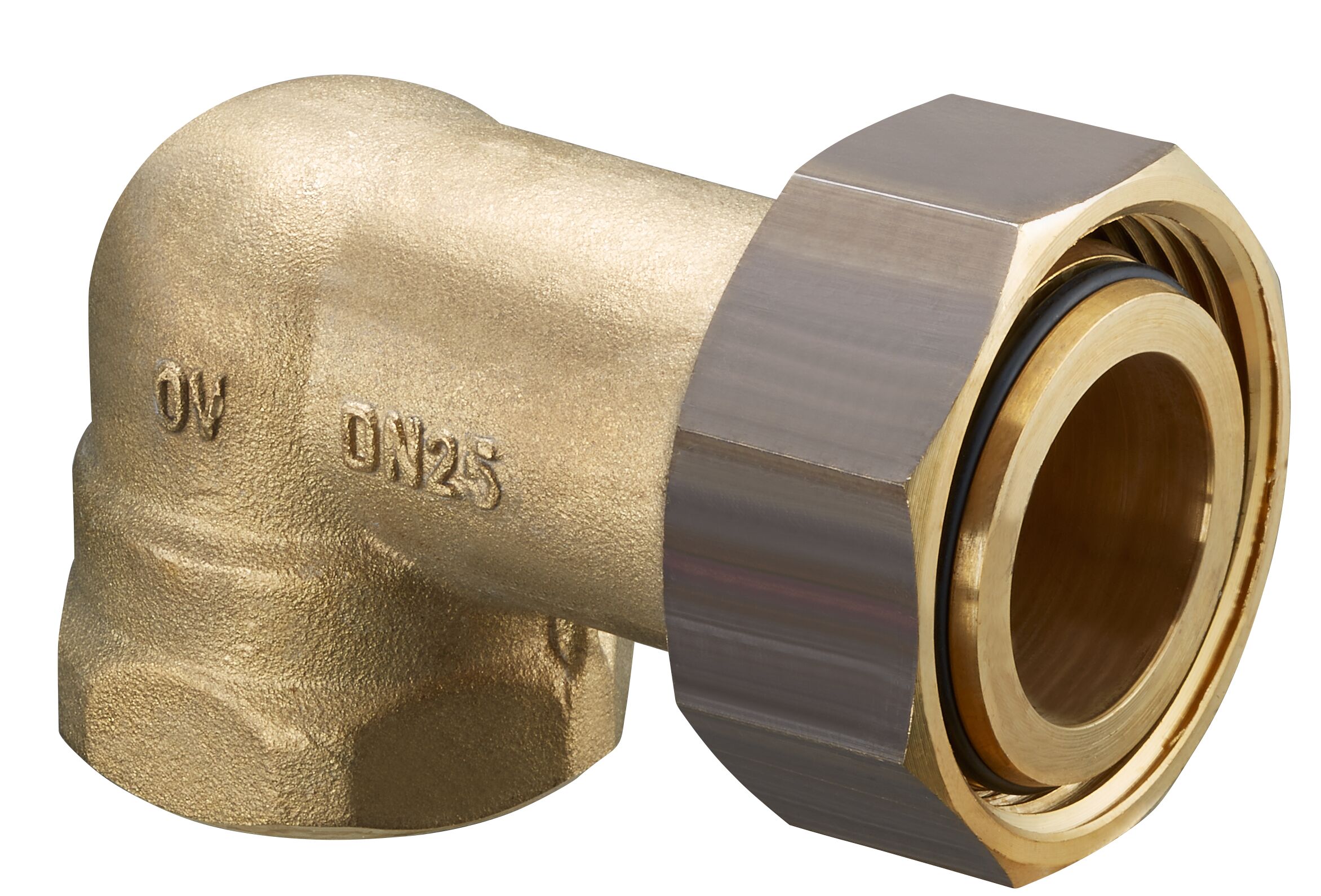

Fotos del producto
  Tamaño del archivo
431,51 KB
  Tamaño
2344 px x 1590 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
Dibujos
  Tamaño del archivo
7,67 KB
  Tamaño
295 px x 190 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
  Tamaño del archivo
1,19 KB
  Tamaño
59 px x 38 px
  Propiedades
  •  Limpiar imagen de producto
  •  Separar
Descargar
Classification
ETIM 7.0 EC003024
Fitting with 2 connections
Característica Valor
Model 2-part
Shape Bend
Connection 1 Union nut
Connection 2 Inner thread conical BSPT-Rc (ISO 7-1)
Bend angle 90 °
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Capped
With gaskets
Nominal inner diameter of connection 2 1 inch (25)
Eccentric
KIWA certified
With drain
With de-aerator
FM quality mark
VdS quality mark
UL quality mark
ULC quality mark
LPCB quality mark
Seal material NBR (nitrile rubber)
Reducing
Nominal inner diameter connection 1 1 3/8 inch
Material connection 1 Brass
Material connection 2 Brass
Material quality connection 1 Other
Material quality connection 2 Other
