Ballon d'eau chaude double échangeur Hydrocor - WB
type 300


Hydrocor WB type 300 potable water storage cylinder for connecting various heat generators (e.g. solar, heat pump or conventional boilers).

Storage cylinder suitable for the following stations: Regusol and Regusol E

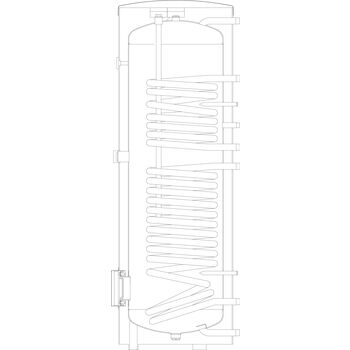

Solar potable water storage cylinder with two internal tube heat exchangers. The heat transfer from the solar collectors to the solar buffer storage cylinder takes place here via a tube heat exchanger located inside the storage cylinder. A boiler, for example, can be connected to the upper tube heat exchanger for reheating.

Max. operating pressure solar return/solar supply/heating return/heating supply: 16 bar
Operating temperature solar return/solar supply/heating return/heating supply: 110 °C
La production a été arrêtée
Réf.: 1385303
Fabricant: Oventrop GmbH & Co. KG
Sous réserve de modifications techniques.

Dimensions

Dimensions de l’article

Longueur Largeur Hauteur Poids
600 mm 600 mm 1834 mm 97,5 kg

Unités de conditionnement

Type Quantité Longueur Largeur Hauteur Poids

Images

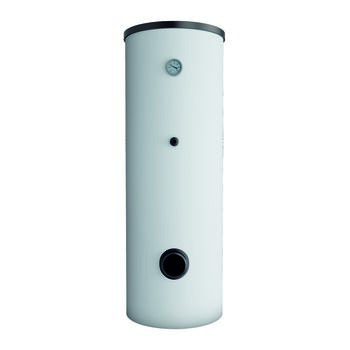

Images de produits

  Taille du fichier
333,49 KB
  Taille de l'image
4336 px x 4376 px
  Caractéristiques
  •  Image claire du produit
  •  Recadré
Téléchargement
  Taille du fichier
1,51 MB
  Taille de l'image
4336 px x 4376 px
  Caractéristiques
  •  Image claire du produit
  •  Recadré
Téléchargement

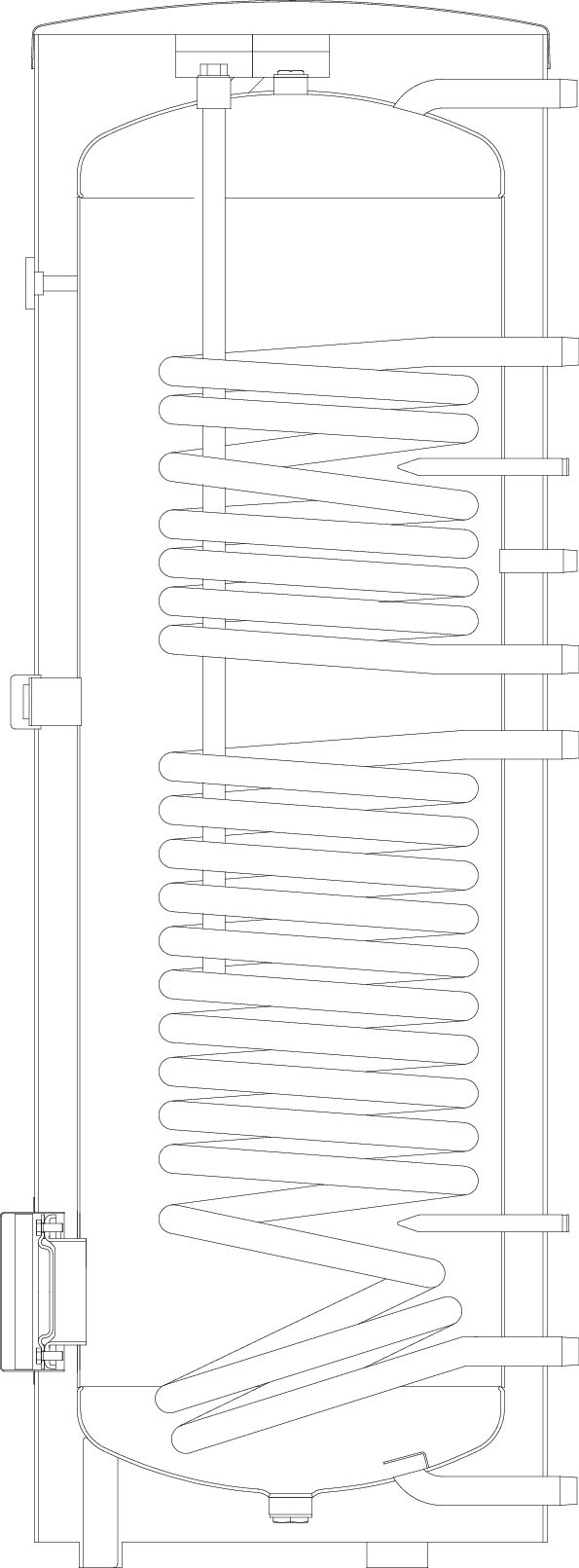

Plans

  Taille du fichier
81,89 KB
  Taille de l'image
595 px x 1611 px
  Caractéristiques
  •  Image claire du produit
  •  Recadré
Téléchargement

ETIM

Klassifizierung
ETIM 7.0
Caractéristique Valeur
